ZeeVee Modulator: The Ultimate Solution for AV and RF Distribution
In today’s fast-paced digital environments, organizations rely on seamless audio and video distribution to engage audiences, share critical information, and deliver entertainment. Whether in hospitality, education, healthcare, or enterprise settings, the need for reliable AV infrastructure is universal. Enter ZeeVee modulators, an industry-leading solution for distributing content over coaxial and IP networks.
This comprehensive guide explores how ZeeVee HDMI modulators, ZeeVee encoders, and cutting-edge AV over IP systems work, their benefits, and why they’ve become the go-to choice for professional integrators worldwide. Plus, discover how ZeeVee showcased its solutions at NACE Evolve 2024, cementing its status as a trusted name in AV distribution.
What is a ZeeVee Modulator?
A ZeeVee modulator is a device that converts video and audio signals into digital RF signals for distribution to multiple displays. These systems allow you to broadcast content from sources like Blu-ray players, cable boxes, or media servers over existing coaxial or Ethernet infrastructure.
For example, the ZeeVee HDMI RF modulator can take a 1080p HDMI signal and distribute it across hundreds of TVs using a standard coaxial network. This eliminates the need for costly matrix switchers or dedicated cabling.
Key benefits:
- Leverages existing infrastructure
- Reduces hardware costs
- Provides scalable distribution for large facilities
ZeeVee products range from simple ZeeVee HDTV modulators for small networks to advanced ZeeVee 4K encoders for enterprise-level AV over IP deployments.
ZeeVee’s Product Lines Explained
ZeeVee’s RF encoder/modulator lineup, including the ZvPro and HDBridge series, is built to convert HDMI, component, VGA, or HD‑SDI sources into digital RF signals. Ideal for venues leveraging existing coax infrastructure, they support 1080p resolution with MPEG‑2 QAM or DVB‑T/C outputs.
1. RF Modulators & Encoders
ZvPro Series
The ZvPro Series is designed for simplicity and affordability. These compact devices convert HDMI signals into QAM or DVB-T channels for coaxial distribution.
- Supports resolutions up to 1080p
- Ideal for hospitality, retail stores, and small campuses
- Works as a ZeeVee CATV modulator compatible with most QAM televisions
HDBridge Series (2000/3000)
The HDBridge 3000 is a high-density modular system designed for large deployments.
- Supports up to 24 HD or 72 SD channels
- Includes IPTV streaming alongside RF modulation
- EAS (Emergency Alert System) integration
- Compatible with the ZeeVee STBi3 set-top decoder for displays without QAM/IP tuners
This system is widely used in sports venues, universities, and healthcare facilities where multiple content streams are required.
2. AV Over IP Solutions (ZyPer Series)
For organizations moving toward Ethernet-based infrastructures, ZeeVee offers the ZyPer Series.
- ZyPerUHD60 provides compressed 4K@60Hz video distribution over 1GbE networks.
- ZyPer4K supports uncompressed 4K HDR content over 10GbE with SDVoE technology.
These solutions are managed through the ZyPer Management Platform (ZMP), enabling seamless device discovery and configuration. AV over IP makes it possible to create flexible installations, including video walls, multiview displays, and low-latency signal switching.
3. ZeeVee STBi3: The Hybrid Decoder
The ZeeVee STBi3 is an advanced set-top decoder designed for hybrid networks. It supports both RF and IP streams, making it ideal for environments that combine legacy coaxial infrastructure with modern Ethernet systems.
Key features:
- HDMI output up to 1080p60
- 264 and H.265 stream decoding
- PoE support for simplified installation
- Channel encryption and custom guides
This decoder is widely used in hospitality networks, cruise ships, and campuses where TVs may not support QAM or IP natively.
Benefits of ZeeVee Modulator Solutions
- Wide Compatibility: Whether you need a ZeeVee CATV modulator, ZeeVee HDTV modulator, or ZeeVee digital RF modulator, the product lineup covers analog/digital and HD/4K sources.
- Legacy Infrastructure Support: Use existing coax with RF encoding, ideal when upgrading older systems with Vecoax ZeeVee modulator gear.
- Scalability & Performance: From simple ZeeVee TV modulator setups to enterprise-level ZeeVee AV over IP networks, systems scale from one room to thousands of screens.
- Centralized Control: Manage everything through Maestro or ZMP/VAM—discover, configure, reset, and monitor devices in bulk.
- Cost-Effective Distribution: No need for set-top boxes or HDMI extenders—distribute via IP or RF with lower latency and operational cost savings.
Use Cases & Applications
- Hotels, Stadiums & Casinos: Deploy ZeeVee TV modulators for in-room entertainment or digital signage with centralized control.
- Educational Campuses: Distribute lectures and digital signage using RF or AVoIP across buildings.
- Enterprise & Corporate HQs: Use ZeeVee encoder modulator for conference room routing, video walls, and video broadcasting.
- Healthcare & Hospitality: Real‑time AV streaming with minimal latency via ZeeVee 4K modulator or IPTV systems.
Selecting the Right ZeeVee Strategy
| Requirement | Best Solution |
|---|---|

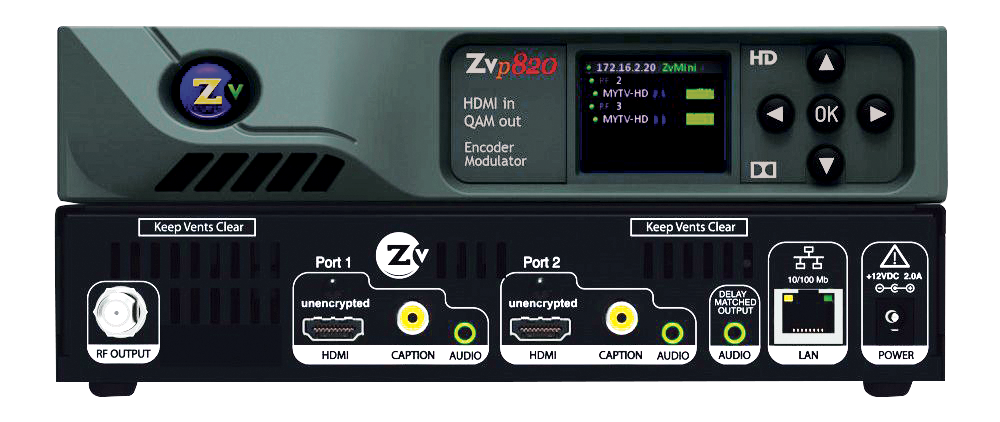

| Single HDMI to QAM RF (1080p) | ZvPro 820i (ZeeVee HDMI RF modulator) |
| Multi-channel coax head‑end (HD) | HDBridge 3000 or HDBridge 2000 |
| HDMI Scaler + IP + RF mix | HDBridge with streaming blades |
| STBi3-compatible Set-Top decoding | ZeeVee STBi3 |
| 4K high-quality video over IP networks | ZyPerUHD60 (compressed) or ZyPer4K (uncompressed) |
Tips for Deployment & Setup
- For RF gear (ZvPro, HDBridge), set RF channel, power level, and delay-matched audio via front panel or web interface, then scan TV tuners to pick up channels.
- Use Maestro or ZyPer Management Platform to reset, update firmware, or manage devices, especially helpful for large installations.
- Determine whether compressed (ZyPerUHD60) or uncompressed (ZyPer4K) best fits your bandwidth, latency, and quality needs.
- Consider emergency alert and looping signage functionality available in HDBridge modules and ZvPro systems.
Why Choose ZeeVee HDMI RF Modulators Over Traditional Matrix Switchers?
One of the biggest advantages of a ZeeVee HDMI RF modulator is its ability to utilize existing coaxial cabling. Traditional HDMI matrix switchers require dedicated cabling for each display and often involve complex installation processes. In contrast, ZeeVee’s modulators allow you to broadcast HD signals over coax, enabling plug-and-play distribution across hundreds of TVs. The ZeeVee HDTV modulator range supports resolutions up to 1080p and offers features like Dolby Digital audio encoding and Emergency Alert System (EAS) integration. These features are particularly beneficial for venues like schools, hospitals, and casinos where large-scale video distribution must be reliable and cost-effective.
ZeeVee Distributors & Availability
NACE is a trusted ZeeVee distributor, supplying modulator and encoder products across North America. The site offers OEM and commercial-grade ZeeVee modulators, including ZvPro, HDBridge, ZyPerUHD60, and ZyPer4K lines.
ZeeVee Modulator vs. Vecoax Modulator
| Feature | ZeeVee Modulator | Vecoax Modulator |
|---|---|---|
| Resolution Support | Up to 4K (ZyPer Series) | Up to 1080p (most models) |
| IP Streaming Support | Yes (HDBridge, ZyPer) | Limited to specific models |
| Management Platform | Maestro, ZyPer ZMP | Basic web interface |
| Scalability | Enterprise-grade (up to 1000s) | Best for smaller deployments |
| Use Case | Hospitality, Enterprise, Stadiums | Homes, small businesses |
While Vecoax modulators are ideal for some basic setups, ZeeVee encoders and modulators stand out for larger, more complex installations.
Why Choose NACE?
As a ZeeVee distributor, NACE carries the entire range of ZeeVee products, including the ZeeVee HDMI RF modulator, ZeeVee encoders, and accessories like the ZeeVee STBi3. We provide expert technical support and integration assistance to ensure your AV project succeeds.
Contact us today to learn more about deploying ZeeVee solutions in your environment or browse our online catalog to find the right product for your needs.
Blonder Tongue headend equipment continues to set the standard for reliability, scalability, and long-term value in modern networks. Whether you’re managing a small property or a large-scale enterprise, these solutions help you deliver clear, consistent signals while future-proofing your infrastructure.
Frequently Asked Questions
- How does a ZeeVee HDMI RF Modulator work?
A ZeeVee HDMI RF modulator takes HDMI input and encodes it into a digital QAM channel, which can then be broadcast through coaxial cables to multiple televisions. This technology simplifies video distribution in hotels, stadiums, and healthcare facilities. - What is the ZeeVee STBi3 used for?
The ZeeVee STBi3 is a set-top decoder that receives RF or IP streams and converts them into HDMI output for displays. It’s ideal for TVs without built-in QAM tuners or for encrypted IPTV networks. - Can ZeeVee modulators distribute 4K video?
Yes, ZeeVee 4K modulators, such as the ZyPer series, support uncompressed and compressed 4K video distribution over Ethernet networks for high-quality AV over IP solutions. - What are the benefits of using ZeeVee encoder modulators?
ZeeVee encoder modulators offer cost-effective, scalable video distribution. They enable content delivery over existing coax or Ethernet, support emergency alerts, and allow centralized control, making them ideal for enterprises and hospitality networks.
