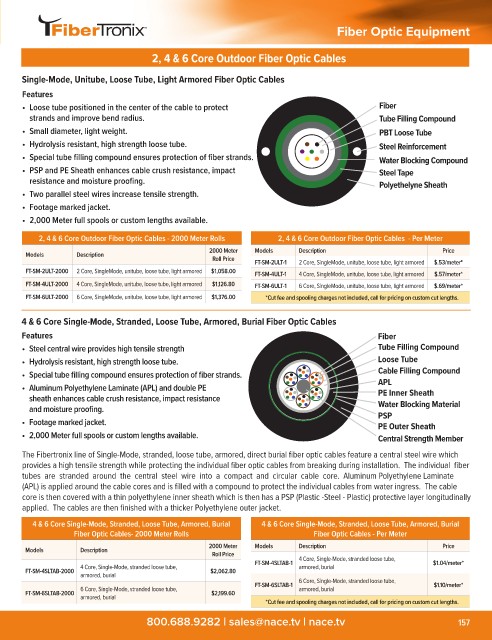

Page 159 - NACE T128 Full catalog_Web
P. 159
Fiber Optic Equipment
2, 4 & 6 Core Outdoor Fiber Optic Cables
Single-Mode, Unitube, Loose Tube, Light Armored Fiber Optic Cables
Features
• Loose tube positioned in the center of the cable to protect Fiber
strands and improve bend radius. Tube Filling Compound
• Small diameter, light weight. PBT Loose Tube
• Hydrolysis resistant, high strength loose tube. Steel Reinforcement
• Special tube filling compound ensures protection of fiber strands. Water Blocking Compound
• PSP and PE Sheath enhances cable crush resistance, impact Steel Tape
resistance and moisture proofing. Polyethelyne Sheath
• Two parallel steel wires increase tensile strength.
• Footage marked jacket.
• 2,000 Meter full spools or custom lengths available.
2, 4 & 6 Core Outdoor Fiber Optic Cables - 2000 Meter Rolls 2, 4 & 6 Core Outdoor Fiber Optic Cables - Per Meter
2000 Meter Models Description Price
Models Description
Roll Price
FT -SM -2ULT -1 2 Core, Single Mode, unitube, loose tube, light armored $.53/meter*
FT -SM- 2ULT- 2000 2 Core, Single Mode, unitube, loose tube, light armored $1,058.00 FT -SM -4ULT -1 4 Core, Single Mode, unitube, loose tube, light armored $.57/meter*
FT- SM -4ULT -2000 4 Core, Single Mode, unitube, loose tube, light armored $1,126.80 FT -SM- 6ULT -1 6 Core, Single Mode, unitube, loose tube, light armored $.69/meter*
FT -SM- 6ULT -2000 6 Core, Single Mode, unitube, loose tube, light armored $1,376.00 *Cut fee and spooling charges not included, call for pricing on custom cut lengths.
4 & 6 Core Single-Mode, Stranded, Loose Tube, Armored, Burial Fiber Optic Cables
Features Fiber
• Steel central wire provides high tensile strength Tube Filling Compound
• Hydrolysis resistant, high strength loose tube. Loose Tube
• Special tube filling compound ensures protection of fiber strands. Cable Filling Compound
• Aluminum Polyethylene Laminate (APL) and double PE APL
PE Inner Sheath
sheath enhances cable crush resistance, impact resistance
and moisture proofing. Water Blocking Material
PSP
• Footage marked jacket. PE Outer Sheath
• 2,000 Meter full spools or custom lengths available. Central Strength Member
The Fibertronix line of Single-Mode, stranded, loose tube, armored, direct burial fiber optic cables feature a central steel wire which
provides a high tensile strength while protecting the individual fiber optic cables from breaking during installation. The individual fiber
tubes are stranded around the central steel wire into a compact and circular cable core. Aluminum Polyethylene Laminate
(APL) is applied around the cable cores and is filled with a compound to protect the individual cables from water ingress. The cable
core is then covered with a thin polyethylene inner sheath which is then has a PSP (Plastic -Steel - Plastic) protective layer longitudinally
applied. The cables are then finished with a thicker Polyethylene outer jacket.
4 & 6 Core Single-Mode, Stranded, Loose Tube, Armored, Burial 4 & 6 Core Single-Mode, Stranded, Loose Tube, Armored, Burial
Fiber Optic Cables- 2000 Meter Rolls Fiber Optic Cables - Per Meter
2000 Meter Models Description Price
Models Description
Roll Price
FT-SM-4SLTAB-1 4 Core, Single-Mode, stranded loose tube, $1.04/meter*
4 Core, Single-Mode, stranded loose tube, armored, burial
FT-SM-4SLTAB-2000 $2,062.80
armored, burial
FT-SM-6SLTAB-1 6 Core, Single-Mode, stranded loose tube, $1.10/meter*
6 Core, Single-Mode, stranded loose tube, armored, burial
FT-SM-6SLTAB-2000 $2,199.60
armored, burial
*Cut fee and spooling charges not included, call for pricing on custom cut lengths.
800.688.9282 | sales@nace.tv | nace.tv 157
