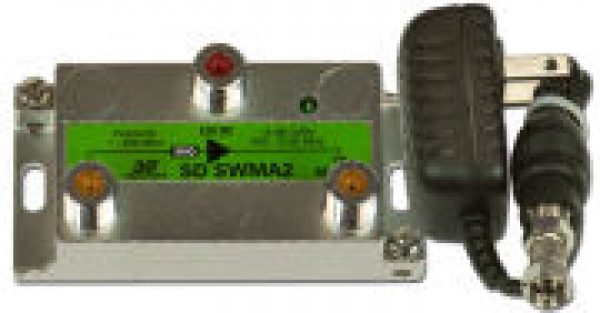

Product ID: SD-SWMA2-T
Supplier: Sonora
Description: SWM Extension amplifier, Indoor DBS line powered amplifier with 940 to 2150 MHz forward gain and passive 2 MHz to 806 MHz return. Boosts SWM 940 to 2150 MHz signals offsetting the loss of 150 feet of RG-6 while bidirectionally passing 2 to 806 MHz DECA, MoCA and receiver control signals. MoCA & DECA signals in the 475 to 625 MHz band pass through the SD SWMA2. 1 dB of Loss at 2 - 806 MHz, 12 dB gain at 940-1,450 MHz, 15 dB gain at 1,450 MHz to 2,150 MHz.
Description: SWM Extension amplifier, Indoor DBS line powered amplifier with 940 to 2150 MHz forward gain and passive 2 MHz to 806 MHz return. Boosts SWM 940 to 2150 MHz signals offsetting the loss of 150 feet of RG-6 while bidirectionally passing 2 to 806 MHz DECA, MoCA and receiver control signals. MoCA & DECA signals in the 475 to 625 MHz band pass through the SD SWMA2. 1 dB of Loss at 2 - 806 MHz, 12 dB gain at 940-1,450 MHz, 15 dB gain at 1,450 MHz to 2,150 MHz.
