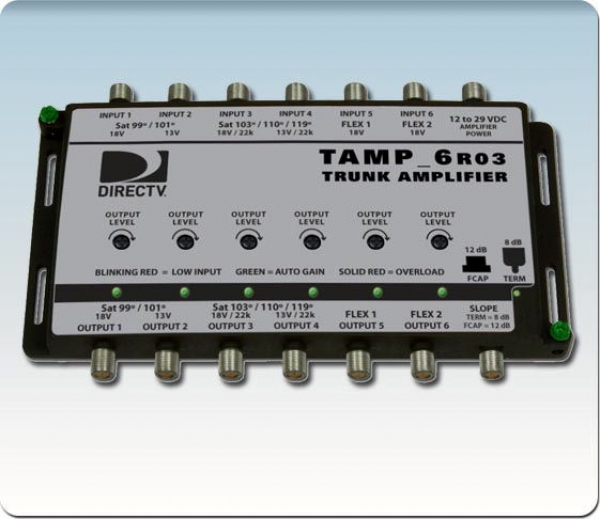

Product ID: TAMP6R03-PI29
Supplier: Sonora
Description: Indoor 250 to 2150 MHz DBS amplifier with automatic gain, adjustable output and selectable slope. The TAMP6R03 provides an automatic gain controlled output that is user adjustable from -16 dBm to -25 dBm @ 2150 MHz. Slope is field selected to either 12 dB or 8 dB. At the minimum output setting, the LED indicators turn Green with an minimum input of -50 dBm. At the maximum output setting, the LED indicators turn Green with an minimum input of -42 dBm. Requires PI-29Z power supply (sold separately).
Description: Indoor 250 to 2150 MHz DBS amplifier with automatic gain, adjustable output and selectable slope. The TAMP6R03 provides an automatic gain controlled output that is user adjustable from -16 dBm to -25 dBm @ 2150 MHz. Slope is field selected to either 12 dB or 8 dB. At the minimum output setting, the LED indicators turn Green with an minimum input of -50 dBm. At the maximum output setting, the LED indicators turn Green with an minimum input of -42 dBm. Requires PI-29Z power supply (sold separately).
