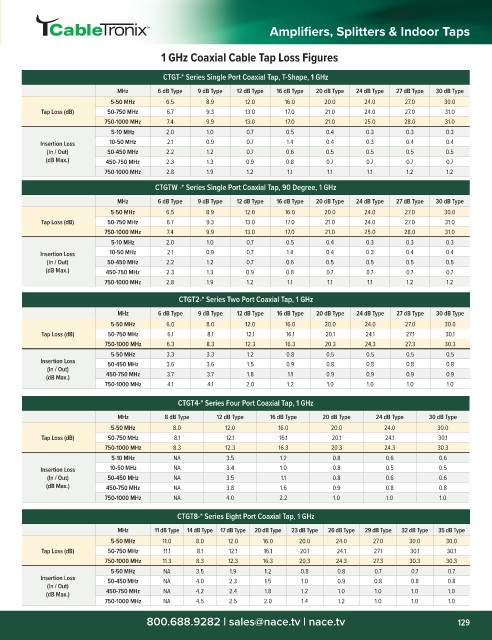

Amplifiers, Splitters & Indoor Taps

1 GHz Coaxial Cable Tap Loss Figures

CTGT-* Series Single Port Coaxial Tap, T-Shape, 1 GHz
MHz 6 dB Type 9 dB Type 12 dB Type 16 dB Type 20 dB Type 24 dB Type 27 dB Type 30 dB Type
5-50 MHz 6.5 8.9 12.0 16.0 20.0 24.0 27.0 30.0
Tap Loss (dB) 50-750 MHz 6.7 9.3 13.0 17.0 21.0 24.0 27.0 31.0
750-1000 MHz 7.4 9.9 13.0 17.0 21.0 25.0 28.0 31.0
5-10 MHz 2.0 1.0 0.7 0.5 0.4 0.3 0.3 0.3
Insertion Loss 10-50 MHz 2.1 0.9 0.7 1.4 0.4 0.3 0.4 0.4
(In / Out) 50-450 MHz 2.2 1.2 0.7 0.6 0.5 0.5 0.5 0.5
(dB Max.) 450-750 MHz 2.3 1.3 0.9 0.8 0.7 0.7 0.7 0.7
750-1000 MHz 2.8 1.9 1.2 1.1 1.1 1.1 1.2 1.2
CTGTW -* Series Single Port Coaxial Tap, 90 Degree, 1 GHz
MHz 6 dB Type 9 dB Type 12 dB Type 16 dB Type 20 dB Type 24 dB Type 27 dB Type 30 dB Type
5-50 MHz 6.5 8.9 12.0 16.0 20.0 24.0 27.0 30.0
Tap Loss (dB) 50-750 MHz 6.7 9.3 13.0 17.0 21.0 24.0 27.0 31.0
750-1000 MHz 7.4 9.9 13.0 17.0 21.0 25.0 28.0 31.0
5-10 MHz 2.0 1.0 0.7 0.5 0.4 0.3 0.3 0.3
Insertion Loss 10-50 MHz 2.1 0.9 0.7 1.4 0.4 0.3 0.4 0.4
(In / Out) 50-450 MHz 2.2 1.2 0.7 0.6 0.5 0.5 0.5 0.5
(dB Max.) 450-750 MHz 2.3 1.3 0.9 0.8 0.7 0.7 0.7 0.7
750-1000 MHz 2.8 1.9 1.2 1.1 1.1 1.1 1.2 1.2

CTGT2-* Series Two Port Coaxial Tap, 1 GHz
MHz 6 dB Type 9 dB Type 12 dB Type 16 dB Type 20 dB Type 24 dB Type 27 dB Type 30 dB Type
5-50 MHz 6.0 8.0 12.0 16.0 20.0 24.0 27.0 30.0
Tap Loss (dB) 50-750 MHz 6.1 8.1 12.1 16.1 20.1 24.1 27.1 30.1
750-1000 MHz 6.3 8.3 12.3 16.3 20.3 24.3 27.3 30.3
5-50 MHz 3.3 3.3 1.2 0.8 0.5 0.5 0.5 0.5
Insertion Loss 50-450 MHz 3.6 3.6 1.5 0.9 0.8 0.8 0.8 0.8
(In / Out)
(dB Max.) 450-750 MHz 3.7 3.7 1.8 1.1 0.9 0.9 0.9 0.9
750-1000 MHz 4.1 4.1 2.0 1.2 1.0 1.0 1.0 1.0

CTGT4-* Series Four Port Coaxial Tap, 1 GHz
MHz 8 dB Type 12 dB Type 16 dB Type 20 dB Type 24 dB Type 30 dB Type
5-50 MHz 8.0 12.0 16.0 20.0 24.0 30.0
Tap Loss (dB) 50-750 MHz 8.1 12.1 16.1 20.1 24.1 30.1
750-1000 MHz 8.3 12.3 16.3 20.3 24.3 30.3
5-10 MHz NA 3.5 1.2 0.8 0.6 0.6
Insertion Loss 10-50 MHz NA 3.4 1.0 0.8 0.5 0.5
(In / Out) 50-450 MHz NA 3.5 1.1 0.8 0.6 0.6
(dB Max.) 450-750 MHz NA 3.8 1.6 0.9 0.8 0.8
750-1000 MHz NA 4.0 2.2 1.0 1.0 1.0

CTGT8-* Series Eight Port Coaxial Tap, 1 GHz
MHz 11 dB Type 14 dB Type 17 dB Type 20 dB Type 23 dB Type 26 dB Type 29 dB Type 32 dB Type 35 dB Type
5-50 MHz 11.0 8.0 12.0 16.0 20.0 24.0 27.0 30.0 30.0
Tap Loss (dB) 50-750 MHz 11.1 8.1 12.1 16.1 20.1 24.1 27.1 30.1 30.1
750-1000 MHz 11.3 8.3 12.3 16.3 20.3 24.3 27.3 30.3 30.3
5-50 MHz NA 3.5 1.9 1.2 0.8 0.8 0.7 0.7 0.7
Insertion Loss 50-450 MHz NA 4.0 2.3 1.5 1.0 0.9 0.8 0.8 0.8
(In / Out)
(dB Max.) 450-750 MHz NA 4.2 2.4 1.8 1.2 1.0 1.0 1.0 1.0
750-1000 MHz NA 4.5 2.5 2.0 1.4 1.2 1.0 1.0 1.0
