Outdoor Distribution Equipment

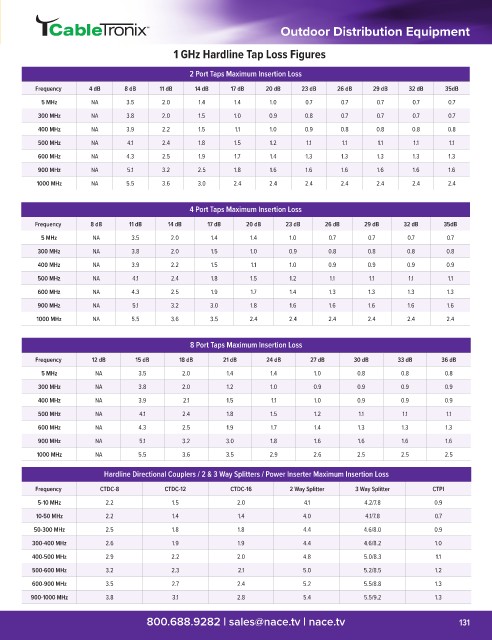

1 GHz Hardline Tap Loss Figures

2 Port Taps Maximum Insertion Loss

Frequency 4 dB 8 dB 11 dB 14 dB 17 dB 20 dB 23 dB 26 dB 29 dB 32 dB 35dB
5 MHz NA 3.5 2.0 1.4 1.4 1.0 0.7 0.7 0.7 0.7 0.7
300 MHz NA 3.8 2.0 1.5 1.0 0.9 0.8 0.7 0.7 0.7 0.7
400 MHz NA 3.9 2.2 1.5 1.1 1.0 0.9 0.8 0.8 0.8 0.8
500 MHz NA 4.1 2.4 1.8 1.5 1.2 1.1 1.1 1.1 1.1 1.1
600 MHz NA 4.3 2.5 1.9 1.7 1.4 1.3 1.3 1.3 1.3 1.3
900 MHz NA 5.1 3.2 2.5 1.8 1.6 1.6 1.6 1.6 1.6 1.6
1000 MHz NA 5.5 3.6 3.0 2.4 2.4 2.4 2.4 2.4 2.4 2.4

4 Port Taps Maximum Insertion Loss

Frequency 8 dB 11 dB 14 dB 17 dB 20 dB 23 dB 26 dB 29 dB 32 dB 35dB
5 MHz NA 3.5 2.0 1.4 1.4 1.0 0.7 0.7 0.7 0.7
300 MHz NA 3.8 2.0 1.5 1.0 0.9 0.8 0.8 0.8 0.8
400 MHz NA 3.9 2.2 1.5 1.1 1.0 0.9 0.9 0.9 0.9
500 MHz NA 4.1 2.4 1.8 1.5 1.2 1.1 1.1 1.1 1.1
600 MHz NA 4.3 2.5 1.9 1.7 1.4 1.3 1.3 1.3 1.3
900 MHz NA 5.1 3.2 3.0 1.8 1.6 1.6 1.6 1.6 1.6
1000 MHz NA 5.5 3.6 3.5 2.4 2.4 2.4 2.4 2.4 2.4

8 Port Taps Maximum Insertion Loss
Frequency 12 dB 15 dB 18 dB 21 dB 24 dB 27 dB 30 dB 33 dB 36 dB
5 MHz NA 3.5 2.0 1.4 1.4 1.0 0.8 0.8 0.8
300 MHz NA 3.8 2.0 1.2 1.0 0.9 0.9 0.9 0.9
400 MHz NA 3.9 2.1 1.5 1.1 1.0 0.9 0.9 0.9
500 MHz NA 4.1 2.4 1.8 1.5 1.2 1.1 1.1 1.1

600 MHz NA 4.3 2.5 1.9 1.7 1.4 1.3 1.3 1.3
900 MHz NA 5.1 3.2 3.0 1.8 1.6 1.6 1.6 1.6
1000 MHz NA 5.5 3.6 3.5 2.9 2.6 2.5 2.5 2.5

Hardline Directional Couplers / 2 & 3 Way Splitters / Power Inserter Maximum Insertion Loss
Frequency CTDC-8 CTDC-12 CTDC-16 2 Way Splitter 3 Way Splitter CTPI
5-10 MHz 2.2 1.5 2.0 4.1 4.2/7.8 0.9
10-50 MHz 2.2 1.4 1.4 4.0 4.1/7.8 0.7
50-300 MHz 2.5 1.8 1.8 4.4 4.6/8.0 0.9
300-400 MHz 2.6 1.9 1.9 4.4 4.6/8.2 1.0
400-500 MHz 2.9 2.2 2.0 4.8 5.0/8.3 1.1
500-600 MHz 3.2 2.3 2.1 5.0 5.2/8.5 1.2
600-900 MHz 3.5 2.7 2.4 5.2 5.5/8.8 1.3

900-1000 MHz 3.8 3.1 2.8 5.4 5.5/9.2 1.3
