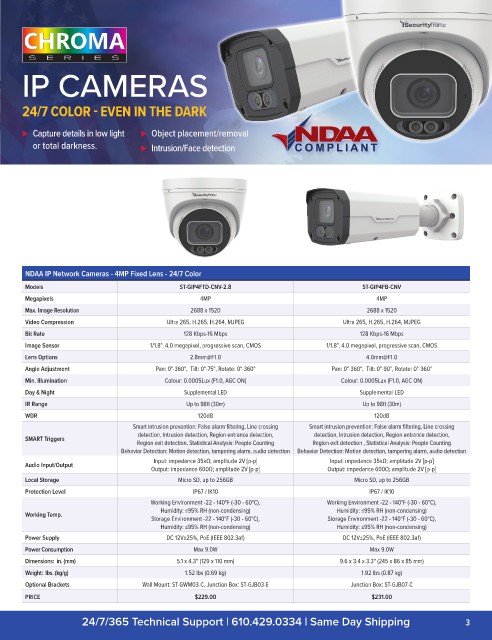

Page 5 - NACE T128 Full catalog_Web

Video Surveillance
Section/Product Header

IP CAMERAS

24/7 COLOR - EVEN IN THE DARK

⊲ Capture details in low light ⊲ Object placement/removal
or total darkness. ⊲ Intrusion/Face detection

NDAA IP Network Cameras - 4MP Fixed Lens - 24/7 Color
Models ST-GIP4FTD-CNV-2.8 ST-GIP4FB-CNV
Megapixels 4MP 4MP
Max. Image Resolution 2688 x 1520 2688 x 1520
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Bit Rate 128 Kbps-16 Mbps 128 Kbps-16 Mbps
Image Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS 1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens Options 2.8mm@F1.0 4.0mm@F1.0
Angle Adjustment Pan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360° Pan: 0°-360°, Tilt: 0°-90°, Rotate: 0°-360°
Min. Illumination Colour: 0.0005Lux (F1.0, AGC ON) Colour: 0.0005Lux (F1.0, AGC ON)
Day & Night Supplemental LED Supplemental LED
IR Range Up to 98ft (30m) Up to 98ft (30m)
WDR 120dB 120dB
Smart intrusion prevention: False alarm filtering, Line crossing Smart intrusion prevention: False alarm filtering, Line crossing
detection, Intrusion detection, Region entrance detection, detection, Intrusion detection, Region entrance detection,
SMART Triggers
Region exit detection, Statistical Analysis: People Counting Region exit detection , Statistical Analysis: People Counting
Behavior Detection: Motion detection, tampering alarm, audio detection Behavior Detection: Motion detection, tampering alarm, audio detection
Input: impedance 35kΩ; amplitude 2V [p-p] Input: impedance 35kΩ; amplitude 2V [p-p]
Audio Input/Output
Output: impedance 600Ω; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
Local Storage Micro SD, up to 256GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 / IK10
Working Environment -22 - 140°F (-30 - 60°C), Working Environment -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Working Temp.
Storage Environment -22 - 140°F (-30 - 60°C), Storage Environment -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Power Supply DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 9.0W Max 9.0W
Dimensions: in. (mm) 5.1 x 4.3" (129 x 110 mm) 9.6 x 3.4 x 3.3" (245 x 86 x 85 mm)
Weight: lbs. (kg/g) 1.52 lbs (0.69 kg) 1.92 lbs (0.87 kg)
Optional Brackets Wall Mount: ST-GWM03-C, Junction Box: ST-GJB03-E Junction Box: ST-GJB07-C
PRICE $229.00 $231.00

24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 3
