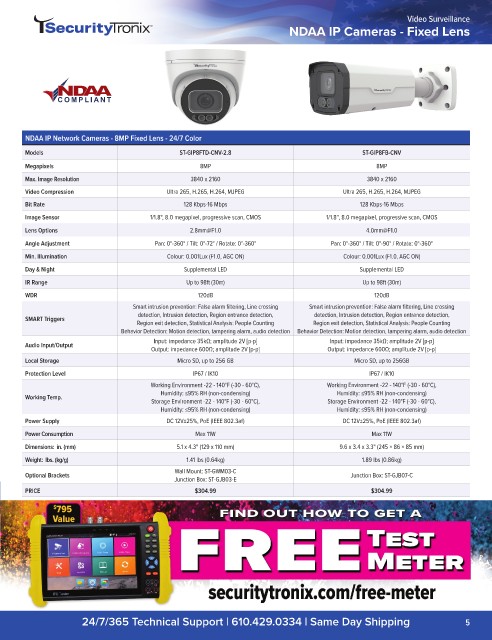

Page 7 - NACE T128 Full catalog_Web
P. 7
Video Surveillance
NDAA IP Cameras - Fixed Lens
NDAA IP Network Cameras - 8MP Fixed Lens - 24/7 Color
Models ST-GIP8FTD-CNV-2.8 ST-GIP8FB-CNV
Megapixels 8MP 8MP
Max. Image Resolution 3840 x 2160 3840 x 2160
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Bit Rate 128 Kbps-16 Mbps 128 Kbps-16 Mbps
Image Sensor 1/1.8", 8.0 megapixel, progressive scan, CMOS 1/1.8”, 8.0 megapixel, progressive scan, CMOS
Lens Options 2.8mm@F1.0 4.0mm@F1.0
Angle Adjustment Pan: 0°-360° / Tilt: 0°-72° / Rotate: 0°-360° Pan: 0°-360° / Tilt: 0°-90° / Rotate: 0°-360°
Min. Illumination Colour: 0.001Lux (F1.0, AGC ON) Colour: 0.001Lux (F1.0, AGC ON)
Day & Night Supplemental LED Supplemental LED
IR Range Up to 98ft (30m) Up to 98ft (30m)
WDR 120dB 120dB
Smart intrusion prevention: False alarm filtering, Line crossing Smart intrusion prevention: False alarm filtering, Line crossing
detection, Intrusion detection, Region entrance detection, detection, Intrusion detection, Region entrance detection,
SMART Triggers
Region exit detection, Statistical Analysis: People Counting Region exit detection, Statistical Analysis: People Counting
Behavior Detection: Motion detection, tampering alarm, audio detection Behavior Detection: Motion detection, tampering alarm, audio detection
Input: impedance 35kΩ; amplitude 2V [p-p] Input: impedance 35kΩ; amplitude 2V [p-p]
Audio Input/Output
Output: impedance 600Ω; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
Local Storage Micro SD, up to 256 GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 / IK10
Working Environment -22 - 140°F (-30 - 60°C), Working Environment -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Working Temp.
Storage Environment -22 - 140°F (-30 - 60°C), Storage Environment -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Power Supply DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 11W Max 11W
Dimensions: in. (mm) 5.1 x 4.3" (129 x 110 mm) 9.6 x 3.4 x 3.3" (245 × 86 × 85 mm)
Weight: lbs. (kg/g) 1.41 lbs (0.64kg) 1.89 lbs (0.86kg)
Wall Mount: ST-GWM03-C
Optional Brackets Junction Box: ST-GJB07-C
Junction Box: ST-GJB03-E
PRICE $304.99 $304.99
24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 5
