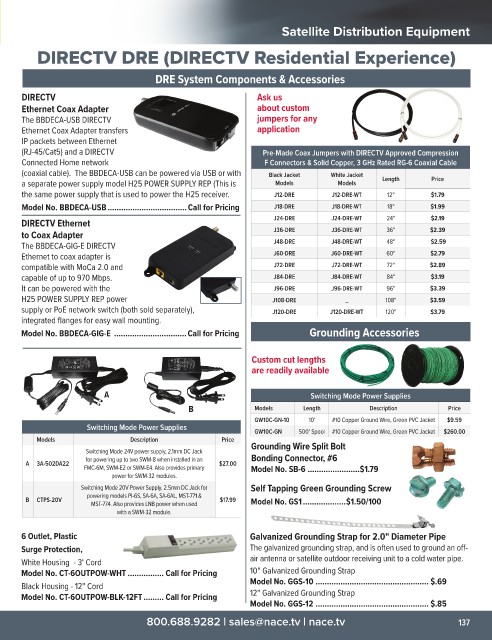

Page 139 - NACE T128 Full catalog_Web

Satellite Distribution Equipment

DIRECTV DRE (DIRECTV Residential Experience)

DRE System Components & Accessories

DIRECTV Ask us
Ethernet Coax Adapter about custom
The BBDECA-USB DIRECTV jumpers for any
Ethernet Coax Adapter transfers application
IP packets between Ethernet
(RJ-45/Cat5) and a DIRECTV Pre-Made Coax Jumpers with DIRECTV Approved Compression
Connected Home network F Connectors & Solid Copper, 3 GHz Rated RG-6 Coaxial Cable
(coaxial cable). The BBDECA-USB can be powered via USB or with Black Jacket White Jacket
a separate power supply model H25 POWER SUPPLY REP (This is Models Models Length Price
the same power supply that is used to power the H25 receiver. J12-DRE J12-DRE-WT 12" $1.79
Model No. BBDECA-USB ...................................Call for Pricing J18-DRE J18-DRE-WT 18" $1.99
DIRECTV Ethernet J24-DRE J24-DRE-WT 24" $2.19
to Coax Adapter J36-DRE J36-DRE-WT 36" $2.39
The BBDECA-GIG-E DIRECTV J48-DRE J48-DRE-WT 48" $2.59
Ethernet to coax adapter is J60-DRE J60-DRE-WT 60" $2.79
compatible with MoCa 2.0 and J72-DRE J72-DRE-WT 72" $2.89
capable of up to 970 Mbps. J84-DRE J84-DRE-WT 84" $3.19
It can be powered with the J96-DRE J96-DRE-WT 96" $3.39
H25 POWER SUPPLY REP power J108-DRE _ 108" $3.59
supply or PoE network switch (both sold separately), J120-DRE J120-DRE-WT 120" $3.79
integrated flanges for easy wall mounting.
Model No. BBDECA-GIG-E ................................Call for Pricing Grounding Accessories

Custom cut lengths
are readily available

A Switching Mode Power Supplies

B Models Length Description Price
GW10C-GN-10 10' #10 Copper Ground Wire, Green PVC Jacket $9.59
Switching Mode Power Supplies
GW10C-GN 500' Spool #10 Copper Ground Wire, Green PVC Jacket $260.00
Models Description Price Grounding Wire Split Bolt
Switching Mode 24V power supply, 2.1mm DC Jack
for powering up to two SWM-8 when installed in an Bonding Connector, #6
A 3A-502DA22 $27.00
FMC-6M, SWM-E2 or SWM-E4. Also provides primary Model No. SB-6 .......................$1.79
power for SWM-32 modules.
Switching Mode 20V Power Supply, 2.5mm DC Jack for Self Tapping Green Grounding Screw
powering models PI-6S, SA-6A, SA-6AL, MST-771 &
B CTPS-20V $17.99 Model No. GS1 ...................$1.50/100
MST-774. Also provides LNB power when used
with a SWM-32 module.

6 Outlet, Plastic Galvanized Grounding Strap for 2.0" Diameter Pipe
Surge Protection, The galvanized grounding strap, and is often used to ground an off-
White Housing - 3' Cord air antenna or satellite outdoor receiving unit to a cold water pipe.
Model No. CT-6OUTPOW-WHT ................ Call for Pricing 10" Galvanized Grounding Strap
Black Housing - 12" Cord Model No. GGS-10 .................................................. $.69
Model No. CT-6OUTPOW-BLK-12FT ......... Call for Pricing 12" Galvanized Grounding Strap
Model No. GGS-12 .................................................. $.85

800.688.9282 | sales@nace.tv | nace.tv 137
