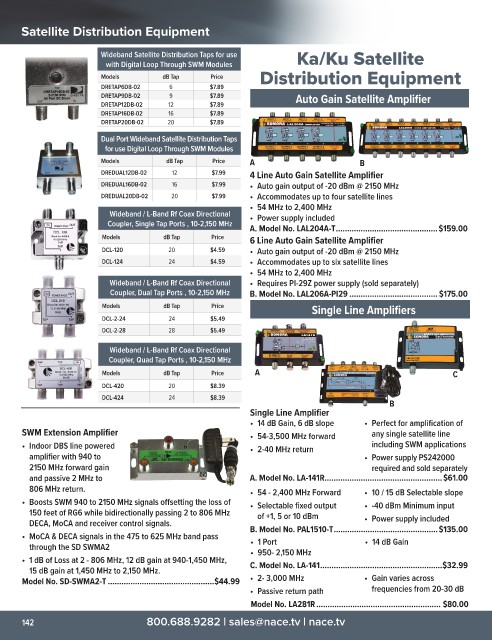

P. 144
Satellite Distribution Equipment
Wideband Satellite Distribution Taps for use Ka/Ku Satellite
with Digital Loop Through SWM Modules
Models dB Tap Price Distribution Equipment
DRETAP6DB-02 6 $7.89
DRETAP9DB-02 9 $7.89 Auto Gain Satellite Amplifier
DRETAP12DB-02 12 $7.89
DRETAP16DB-02 16 $7.89
DRETAP20DB-02 20 $7.89
Dual Port Wideband Satellite Distribution Taps
for use Digital Loop Through SWM Modules
Models dB Tap Price A B
DREDUAL12DB-02 12 $7.99 4 Line Auto Gain Satellite Amplifier
DREDUAL16DB-02 16 $7.99 • Auto gain output of -20 dBm @ 2150 MHz
DREDUAL20DB-02 20 $7.99 • Accommodates up to four satellite lines
• 54 MHz to 2,400 MHz
Wideband / L-Band Rf Coax Directional • Power supply included
Coupler, Single Tap Ports , 10-2,150 MHz A. Model No. LAL204A-T .............................................$159.00
Models dB Tap Price 6 Line Auto Gain Satellite Amplifier
DCL-120 20 $4.59 • Auto gain output of -20 dBm @ 2150 MHz
DCL-124 24 $4.59 • Accommodates up to six satellite lines
• 54 MHz to 2,400 MHz
Wideband / L-Band Rf Coax Directional • Requires PI-29Z power supply (sold separately)
Coupler, Dual Tap Ports , 10-2,150 MHz B. Model No. LAL206A-PI29 ....................................... $175.00
Models dB Tap Price Single Line Amplifiers
DCL-2-24 24 $5.49
DCL-2-28 28 $5.49
Wideband / L-Band Rf Coax Directional
Coupler, Quad Tap Ports , 10-2,150 MHz
Models dB Tap Price A C
DCL-420 20 $8.39
DCL-424 24 $8.39
B
Single Line Amplifier
• 14 dB Gain, 6 dB slope • Perfect for amplification of
SWM Extension Amplifier • 54-3,500 MHz forward any single satellite line
• Indoor DBS line powered • 2-40 MHz return including SWM applications
amplifier with 940 to • Power supply PS242000
2150 MHz forward gain required and sold separately
and passive 2 MHz to A. Model No. LA-141R....................................................$61.00
806 MHz return. • 54 - 2,400 MHz Forward • 10 / 15 dB Selectable slope
• Boosts SWM 940 to 2150 MHz signals offsetting the loss of • Selectable fixed output • -40 dBm Minimum input
150 feet of RG 6 while bidirectionally passing 2 to 806 MHz of +1, 5 or 10 dBm
• Power supply included
DECA, MoCA and receiver control signals. B. Model No. PAL1510-T ..............................................$135.00
• MoCA & DECA signals in the 475 to 625 MHz band pass
through the SD SWMA2 • 1 Port • 14 dB Gain
• 950- 2,150 MHz
• 1 dB of Loss at 2 - 806 MHz, 12 dB gain at 940-1,450 MHz, C. Model No. LA-141 ......................................................$32.99
15 dB gain at 1,450 MHz to 2,150 MHz.
Model No. SD-SWMA2-T ...............................................$44.99 • 2- 3,000 MHz • Gain varies across
• Passive return path frequencies from 20-30 dB
Model No. LA281R ....................................................... $80.00
