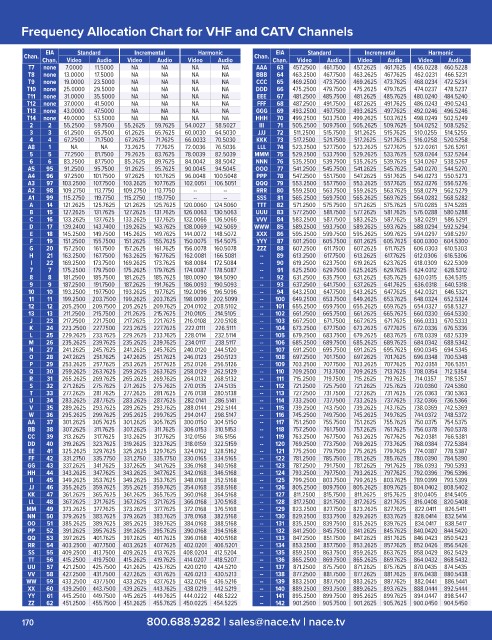

Frequency Allocation Chart for VHF and CATV Channels
Fiber Optic Equipment

EIA Standard Incremental Harmonic EIA Standard Incremental Harmonic
Chan. Chan. Video Audio Video Audio Video Audio Chan. Chan. Video Audio Video Audio Video Audio
T7 none 7.0000 11.5000 NA NA NA NA AAA 63 457.2500 461.7500 457.2625 461.7625 456.0228 460.5228
7500
T8 none 13.0000 17.5000 NA NA NA NA BBB 64 463.2500 467.7500 463.2625 467.7625 462.0231 466.5231
.
467
T9 none 19.0000 23.5000 NA NA NA NA CCC 65 469.2500 473.7500 469.2625 473.7625 468.0234 472.5234
T10 none 25.0000 29.5000 NA NA NA NA DDD 66 475.2500 479.7500 475.2625 479.7625 474.0237 478.5237
T11 none 31.0000 35.5000 NA NA NA NA EEE 67 481.2500 485.7500 481.2625 485.7625 480.0240 484.5240
T12 none 37.0000 41.5000 NA NA NA NA FFF 68 487.2500 491.7500 487.2625 491.7625 486.0243 490.5243
T13 none 43.0000 47.5000 NA NA NA NA GGG 69 493.2500 497.7500 493.2625 497.7625 492.0246 496.5246
T14 none 49.0000 53.5000 NA NA NA NA HHH 70 499.2500 503.7500 499.2625 503.7625 498.0249 502.5249
2 2 55.2500 59.7500 55.2625 59.7625 54.0027 58.5027 III 71 505.2500 509.7500 505.2625 509.7625 504.0252 508.5252
3 3 61.2500 65.7500 61.2625 65.7625 60.0030 64.5030 JJJ 72 511.2500 515.7500 511.2625 515.7625 510.0255 514.5255
4 4 67.2500 71.7500 67.2625 71.7625 66.0033 70.5030 KKK 73 517.2500 521.7500 517.2625 521.7625 516.0258 520.5258
A8 1 NA NA 73.2625 77.7625 72.0036 76.5036 LLL 74 523.2500 527.7500 523.2625 527.7625 522.0261 526.5261
5 5 77.2500 81.7500 79.2625 83.7625 78.0039 82.5039 MMM 75 529.2500 533.7500 529.2625 533.7625 528.0264 532.5264
6 6 83.2500 87.7500 85.2625 89.7625 84.0042 88.5042 NNN 76 535.2500 539.7500 535.2625 539.7625 534.0267 538.5267
A5 95 91.2500 95.7500 91.2625 95.7625 90.0045 94.5045 OOO 77 541.2500 545.7500 541.2625 545.7625 540.0270 544.5270
A4 96 97.2500 101.7500 97.2625 101.7625 96.0048 100.5048 PPP 78 547.2500 551.7500 547.2625 551.7625 546.0273 550.5273
A3 97 103.2500 107.7500 103.2625 107.7625 102.0051 106.5051 QQQ 79 553.2500 557.7500 553.2625 557.7625 552.0276 556.5276
A2 98 109.2750 113.7750 109.2750 113.7750 -- -- RRR 80 559.2500 563.7500 559.2625 563.7625 558.0279 562.5279
A1 99 115.2750 119.7750 115.2750 119.7750 -- -- SSS 81 565.2500 569.7500 565.2625 569.7625 564.0282 568.5282
A 14 121.2625 125.7625 121.2625 125.7625 120.0060 124.5060 TTT 82 571.2500 575.7500 571.2625 575.7625 570.0285 574.5285
B 15 127.2625 131.7625 127.2625 131.7625 126.0063 130.5063 UUU 83 577.2500 581.7500 577.2625 581.7625 576.0288 580.5288
C 16 133.2625 137.7625 133.2625 137.7625 132.0066 136.5066 VVV 84 583.2500 587.7500 583.2625 587.7625 582.0291 586.5291
D 17 139.2400 143.7400 139.2625 143.7625 138.0069 142.5069 WWW 85 589.2500 593.7500 589.2625 593.7625 588.0294 592.5294
E 18 145.2500 149.7500 145.2625 149.7625 144.0072 148.5072 XXX 86 595.2500 599.7500 595.2625 599.7625 594.0297 598.5297
F 19 151.2500 155.7500 151.2625 155.7625 150.0075 154.5075 YYY 87 601.2500 605.7500 601.2625 605.7625 600.0300 604.5300
G 20 157.2500 161.7500 157.2625 161.7625 156.0078 160.5078 ZZZ 88 607.2500 611.7500 607.2625 611.7625 606.0303 610.5303
H 21 163.2500 167.7500 163.2625 167.7625 162.0081 166.5081 -- 89 613.2500 617.7500 613.2625 617.7625 612.0306 616.5306
I 22 169.2500 173.7500 169.2625 173.7625 168.0084 172.5084 -- 90 619.2500 623.7500 619.2625 623.7625 618.0309 622.5309
7 7 175.2500 179.7500 175.2625 179.7625 174.0087 178.5087 -- 91 625.2500 629.7500 625.2625 629.7625 624.0312 628.5312
8 8 181.2500 185.7500 181.2625 185.7625 180.0090 184.5090 -- 92 631.2500 635.7500 631.2625 635.7625 630.0315 634.5315
9 9 187.2500 191.7500 187.2625 191.7625 186.0093 190.5093 -- 93 637.2500 641.7500 637.2625 641.7625 636.0318 640.5318
10 10 193.2500 197.7500 193.2625 197.7625 192.0096 196.5096 -- 94 643.2500 647.7500 643.2625 647.7625 642.0321 646.5321
11 11 199.2500 203.7500 199.2625 203.7625 198.0099 202.5099 -- 100 649.2500 653.7500 649.2625 653.7625 648.0324 652.5324
12 12 205.2500 209.7500 205.2625 209.7625 204.0102 208.5102 -- 101 655.2500 659.7500 655.2625 659.7625 654.0327 658.5327
13 13 211.2500 215.7500 211.2625 215.7625 210.0105 214.5105 -- 102 661.2500 665.7500 661.2625 665.7625 660.0330 664.5330
J 23 217.2500 221.7500 217.2625 221.7625 216.0108 220.5108 -- 103 667.2500 671.7500 667.2625 671.7625 666.0333 670.5333
K 24 223.2500 227.7500 223.2625 227.7625 222.0111 226.5111 -- 104 673.2500 677.7500 673.2625 677.7625 672.0336 676.5336
L 25 229.2625 233.7625 229.2625 233.7625 228.0114 232.5114 -- 105 679.2500 683.7500 679.2625 683.7625 678.0339 682.5339
M 26 235.2625 239.7625 235.2625 239.7625 234.0117 238.5117 -- 106 685.2500 689.7500 685.2625 689.7625 684.0342 688.5342
N 27 241.2625 245.7625 241.2625 245.7625 240.0120 244.5120 -- 107 691.2500 695.7500 691.2625 695.7625 690.0345 694.5345
O 28 247.2625 251.7625 247.2625 251.7625 246.0123 250.5123 -- 108 697.2500 701.7500 697.2625 701.7625 696.0348 700.5348
P 29 253.2625 257.7625 253.2625 257.7625 252.0126 256.5126 -- 109 703.2500 707.7500 703.2625 707.7625 702.0351 706.5351
Q 30 259.2625 263.7625 259.2625 263.7625 258.0129 262.5129 -- 110 709.2500 713.7500 709.2625 713.7625 708.0354 712.5354
R 31 265.2625 269.7625 265.2625 269.7625 264.0132 268.5132 -- 111 715.2500 719.7500 715.2625 719.7625 714.0357 718.5357
S 32 271.2625 275.7625 271.2625 275.7625 270.0135 274.5135 -- 112 721.2500 725.7500 721.2625 725.7625 720.0360 724.5360
T 33 277.2625 281.7625 277.2625 281.7625 276.0138 280.5138 -- 113 727.2500 731.7500 727.2625 731.7625 726.0363 730.5363
U 34 283.2625 287.7625 283.2625 287.7625 282.0141 286.5141 -- 114 733.2500 737.7500 733.2625 737.7625 732.0366 736.5366
V 35 289.2625 293.7625 289.2625 293.7625 288.0144 292.5144 -- 115 739.2500 743.7500 739.2625 743.7625 738.0369 742.5369
W 36 295.2625 299.7625 295.2625 299.7625 294.0147 298.5147 -- 116 745.2500 749.7500 745.2625 749.7625 744.0372 748.5372
AA 37 301.2625 305.7625 301.2625 305.7625 300.0150 304.5150 -- 117 751.2500 755.7500 751.2625 755.7625 750.0375 754.5375
BB 38 307.2625 311.7625 307.2625 311.7625 306.0153 310.5153 -- 118 757.2500 761.7500 757.2625 761.7625 756.0378 760.5378
CC 39 313.2625 317.7625 313.2625 317.7625 312.0156 316.5156 -- 119 763.2500 767.7500 763.2625 767.7625 762.0381 766.5381
DD 40 319.2625 323.7625 319.2625 323.7625 318.0159 322.5159 -- 120 769.2500 773.7500 769.2625 773.7625 768.0384 772.5384
EE 41 325.2625 329.7625 325.2625 329.7625 324.0162 328.5162 -- 121 775.2500 779.7500 775.2625 779.7625 774.0387 778.5387
FF 42 331.2750 335.7750 331.2750 335.7750 330.0165 334.5165 -- 122 781.2500 785.7500 781.2625 785.7625 780.0390 784.5390
GG 43 337.2625 341.7625 337.2625 341.7625 336.0168 340.5168 -- 123 787.2500 791.7500 787.2625 791.7625 786.0393 790.5393
HH 44 343.2625 347.7625 343.2625 347.7625 342.0168 346.5168 -- 124 793.2500 797.7500 793.2625 797.7625 792.0396 796.5396
II 45 349.2625 353.7625 349.2625 353.7625 348.0168 352.5168 -- 125 799.2500 803.7500 799.2625 803.7625 789.0399 793.5399
JJ 46 355.2625 359.7625 355.2625 359.7625 354.0168 358.5168 -- 126 805.2500 809.7500 805.2625 809.7625 804.0402 808.5402
KK 47 361.2625 365.7625 361.2625 365.7625 360.0168 364.5168 -- 127 811.2500 815.7500 811.2625 815.7625 810.0405 814.5405
LL 48 367.2625 371.7625 367.2625 371.7625 366.0168 370.5168 -- 128 817.2500 821.7500 817.2625 821.7625 816.0408 820.5408
MM 49 373.2625 377.7625 373.2625 377.7625 372.0168 376.5168 -- 129 823.2500 827.7500 823.2625 827.7625 822.0411 826.5411
NN 50 379.2625 383.7625 379.2625 383.7625 378.0168 382.5168 -- 130 829.2500 833.7500 829.2625 833.7625 828.0414 832.5414
OO 51 385.2625 389.7625 385.2625 389.7625 384.0168 388.5168 -- 131 835.2500 839.7500 835.2625 839.7625 834.0417 838.5417
PP 52 391.2625 395.7625 391.2625 395.7625 390.0168 394.5168 -- 132 841.2500 845.7500 841.2625 845.7625 840.0420 844.5420
QQ 53 397.2625 401.7625 397.2625 401.7625 396.0168 400.5168 -- 133 847.2500 851.7500 847.2625 851.7625 846.0423 850.5423
RR 54 403.2500 407.7500 403.2625 407.7625 402.0201 406.5201 -- 134 853.2500 857.7500 853.2625 857.7625 852.0426 856.5426
SS 55 409.2500 413.7500 409.2625 413.7625 408.0204 412.5204 -- 135 859.2500 863.7500 859.2625 863.7625 858.0429 862.5429
TT 56 415.2500 419.7500 415.2625 419.7625 414.0207 418.5207 -- 136 865.2500 869.7500 865.2625 869.7625 864.0432 868.5432
UU 57 421.2500 425.7500 421.2625 425.7625 420.0210 424.5210 -- 137 871.2500 875.7500 871.2625 875.7625 870.0435 874.5435
VV 58 427.2500 431.7500 427.2625 431.7625 426.0213 430.5213 -- 138 877.2500 881.7500 877.2625 881.7625 876.0438 880.5438
WW 59 433.2500 437.7500 433.2625 437.7625 432.0216 436.5216 -- 139 883.2500 887.7500 883.2625 887.7625 882.0441 886.5441
XX 60 439.2500 443.7500 439.2625 443.7625 438.0219 442.5219 -- 140 889.2500 893.7500 889.2625 893.7625 888.0444 892.5444
YY 61 445.2500 449.7500 445.2625 449.7625 444.0222 448.5222 -- 141 895.2500 899.7500 895.2625 899.7625 894.0447 898.5447
ZZ 62 451.2500 455.7500 451.2625 455.7625 450.0225 454.5225 -- 142 901.2500 905.7500 901.2625 905.7625 900.0450 904.5450
