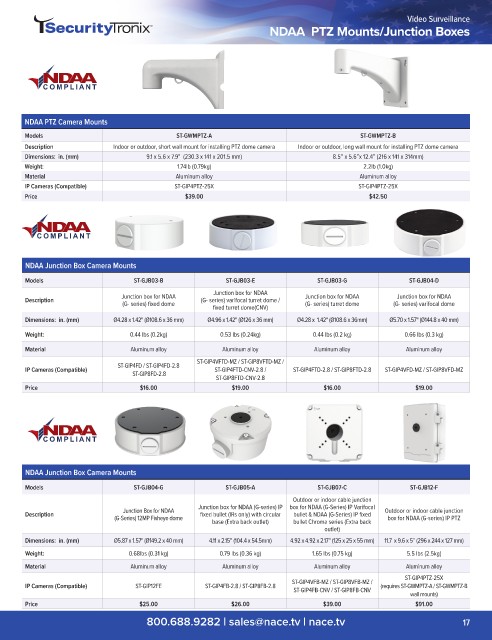

Page 19 - NACE T128 Full catalog_Web

Video Surveillance
NDAA PTZ Mounts/Junction Boxes

NDAA PTZ Camera Mounts
Models ST-GWMPTZ-A ST-GWMPTZ-B
Description Indoor or outdoor, short wall mount for installing PTZ dome camera Indoor or outdoor, long wall mount for installing PTZ dome camera
Dimensions: in. (mm) 9.1 x 5.6 x 7.9" (230.3 x 141 x 201.5 mm) 8.5” x 5.6”x 12.4” (216 x 141 x 314mm)
Weight: 1.74lb (0.79kg) 2.2lb (1.0kg)
Material Aluminum alloy Aluminum alloy
IP Cameras (Compatible) ST-GIP4PTZ-25X ST-GIP4PTZ-25X
Price $39.00 $42.50

NDAA Junction Box Camera Mounts
Models ST-GJB03-B ST-GJB03-E ST-GJB03-G ST-GJB04-D
Junction box for NDAA
Description Junction box for NDAA (G- series) varifocal turret dome / Junction box for NDAA Junction box for NDAA
(G- series) fixed dome
fixed turret dome(CNV) (G- series) turret dome (G- series) varifocal dome
Dimensions: in. (mm) Ø4.28 x 1.42" (Ø108.6 x 36 mm) Ø4.96 x 1.42" (Ø126 x 36 mm) Ø4.28 x 1.42" (Ø108.6 x 36mm) Ø5.70 x 1.57" (Ø144.8 x 40 mm)
Weight: 0.44 lbs (0.2kg) 0.53 lbs (0.24kg) 0.44 lbs (0.2 kg) 0.66 lbs (0.3 kg)

Material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
ST-GIP4VFTD-MZ / ST-GIP8VFTD-MZ /
ST-GIP4FD / ST-GIP4FD-2.8
IP Cameras (Compatible) ST-GIP4FTD-CNV-2.8 / ST-GIP4FTD-2.8 / ST-GIP8FTD-2.8 ST-GIP4VFD-MZ / ST-GIP8VFD-MZ
ST-GIP8FD-2.8
ST-GIP8FTD-CNV-2.8
Price $16.00 $19.00 $16.00 $19.00

NDAA Junction Box Camera Mounts

Models ST-GJB04-G ST-GJB05-A ST-GJB07-C ST-GJB12-F
Outdoor or indoor cable junction
Junction box for NDAA (G-series) IP box for NDAA (G-Series) IP Varifocal
Description Junction Box for NDAA fixed bullet (IRs only) with circular bullet & NDAA (G-Series) IP fixed Outdoor or indoor cable junction
(G-Series) 12MP Fisheye dome
base (Extra back outlet) bullet Chroma series (Extra back box for NDAA (G-series) IP PTZ
outlet)
Dimensions: in. (mm) Ø5.87 x 1.57" (Ø149.2 x 40 mm) 4.11 x 2.15” (104.4 x 54.5mm) 4.92 x 4.92 x 2.17” (125 x 25 x 55 mm) 11.7 x 9.6 x 5” (296 x 244 x 127 mm)
Weight: 0.68lbs (0.31 kg) 0.79 lbs (0.36 kg) 1.65 lbs (0.75 kg) 5.5 lbs (2.5kg)
Material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
ST-GIP4PTZ-25X
ST-GIP4VFB-MZ / ST-GIP8VFB-MZ /
IP Cameras (Compatible) ST-GIP12FE ST-GIP4FB-2.8 / ST-GIP8FB-2.8 (requires ST-GWMPTZ-A / ST-GWMPTZ-B
ST-GIP4FB-CNV / ST-GIP8FB-CNV
wall mounts)
Price $25.00 $26.00 $39.00 $91.00
800.688.9282 | sales@nace.tv | nace.tv 17
