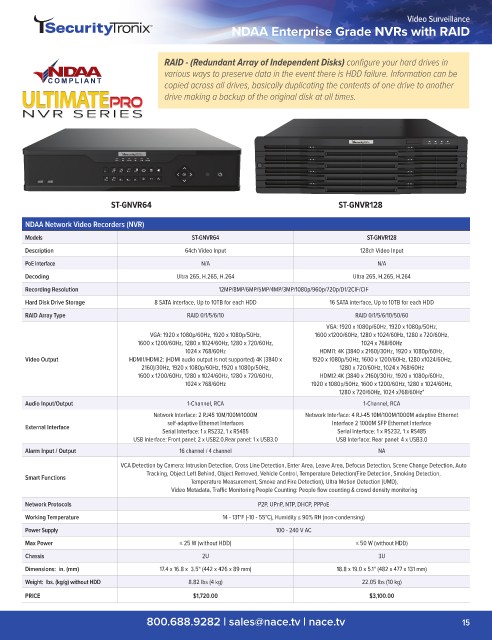

Page 17 - NACE T128 Full catalog_Web
P. 17
Video Surveillance
NDAA Enterprise Grade NVRs with RAID
RAID - (Redundant Array of Independent Disks) configure your hard drives in
various ways to preserve data in the event there is HDD failure. Information can be
copied across all drives, basically duplicating the contents of one drive to another
drive making a backup of the original disk at all times.
ST-GNVR64 ST-GNVR128
NDAA Network Video Recorders (NVR)
Models ST-GNVR64 ST-GNVR128
Description 64ch Video Input 128ch Video Input
PoE Interface N/A N/A
Decoding Ultra 265, H.265, H.264 Ultra 265, H.265, H.264
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Hard Disk Drive Storage 8 SATA interface, Up to 10TB for each HDD 16 SATA interface, Up to 10TB for each HDD
RAID Array Type RAID 0/1/5/6/10 RAID 0/1/5/6/10/50/60
VGA: 1920 x 1080p/60Hz, 1920 x 1080p/50Hz,
VGA: 1920 x 1080p/60Hz, 1920 x 1080p/50Hz, 1600 x1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,
1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
1024 x 768/60Hz HDMI1: 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz,
Video Output HDMI1/HDMI2: (HDMI audio output is not supported) 4K (3840 x 1920 x 1080p/50Hz, 1600 x 1200/60Hz, 1280 x1024/60Hz,
2160)/30Hz, 1920 x 1080p/60Hz, 1920 x 1080p/50Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI2:4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz,
1024 x 768/60Hz 1920 x 1080p/50Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x768/60Hz"
Audio Input/Output 1-Channel, RCA 1-Channel, RCA
Network Interface: 2 RJ45 10M/100M/1000M Network Interface: 4 RJ-45 10M/100M/1000M adaptive Ethernet
self-adaptive Ethernet Interfaces Interface 2 1000M SFP Ethernet Interface
External Interface
Serial Interface: 1 x RS232, 1 x RS485 Serial Interface: 1 x RS232, 1 x RS485
USB Interface: Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 USB Interface: Rear panel: 4 x USB3.0
Alarm Input / Output 16 channel / 4 channel NA
VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto
Tracking, Object Left Behind, Object Removed, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection,
Smart Functions
Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection (UMD),
Video Metadata, Traffic Monitoring People Counting: People flow counting & crowd density monitoring
Network Protocols P2P, UPnP, NTP, DHCP, PPPoE
Working Temperature 14 - 131°F (-10 - 55°C), Humidity ≤ 90% RH (non-condensing)
Power Supply 100 - 240 V AC
Max Power ≤ 25 W (without HDD) ≤ 50 W (without HDD)
Chassis 2U 3U
Dimensions: in. (mm) 17.4 x 16.8 x 3.5" (442 x 426 x 89 mm) 18.8 x 19.0 x 5.1" (482 x 477 x 131 mm)
Weight: lbs. (kg/g) without HDD 8.82 lbs (4 kg) 22.05 lbs (10 kg)
PRICE $1,720.00 $3,100.00
800.688.9282 | sales@nace.tv | nace.tv 15
