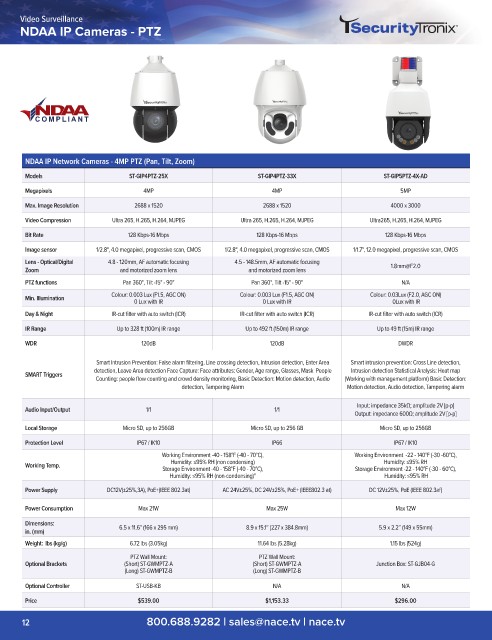

Video Surveillance
NDAA IP Cameras - PTZ
NDAA IP Network Cameras - 4MP PTZ (Pan, Tilt, Zoom)
Models ST-GIP4PTZ-25X ST-GIP4PTZ-33X ST-GIP5PTZ-4X-AD
Megapixels 4MP 4MP 5MP
Max. Image Resolution 2688 x 1520 2688 x 1520 4000 x 3000
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG Ultra265, H.265, H.264, MJPEG
Bit Rate 128 Kbps-16 Mbps 128 Kbps-16 Mbps 128 Kbps-16 Mbps
Image sensor 1/2.8", 4.0 megapixel, progressive scan, CMOS 1/2.8", 4.0 megapixel, progressive scan, CMOS 1/1.7", 12.0 megapixel, progressive scan, CMOS
Lens - Optical/Digital 4.8 - 120mm, AF automatic focusing 4.5 - 148.5mm, AF automatic focusing 1.8mm@F2.0
Zoom and motorized zoom lens and motorized zoom lens
PTZ functions Pan 360°, Tilt -15° - 90° Pan 360°, Tilt -15° - 90° N/A
Min. Illumination Colour: 0.003 Lux (F1.5, AGC ON) Colour: 0.003 Lux (F1.5, AGC ON) Colour: 0.03Lux (F2.0, AGC ON)
0 Lux with IR 0 Lux with IR 0Lux with IR
Day & Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
IR Range Up to 328 ft (100m) IR range Up to 492 ft (150m) IR range Up to 49 ft (15m) IR range
WDR 120dB 120dB DWDR
Smart Intrusion Prevention: False alarm filtering, Line crossing detection, Intrusion detection, Enter Area Smart intrusion prevention: Cross Line detection,
detection, Leave Area detection Face Capture: Face attributes: Gender, Age range, Glasses, Mask People Intrusion detection Statistical Analysis: Heat map
SMART Triggers
Counting: people flow counting and crowd density monitoring, Basic Detection: Motion detection, Audio (Working with management platform) Basic Detection:
detection, Tampering Alarm Motion detection, Audio detection, Tampering alarm
Input: impedance 35kΩ; amplitude 2V [p-p]
Audio Input/Output 1/1 1/1
Output: impedance 600Ω; amplitude 2V [p-p]
Local Storage Micro SD, up to 256GB Micro SD, up to 256 GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP66 IP67 / IK10
Working Environment -40 - 158°F (-40 - 70°C), Working Environment -22 - 140°F (-30 -60°C),
Humidity: ≤95% RH (non condensing)
Humidity: ≤95% RH
Working Temp. Storage Environment -40 - 158°F (-40 - 70°C), Storage Environment -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing)" Humidity: ≤95% RH
Power Supply DC12V(±25%,3A), PoE+(IEEE 802.3at) AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 21W Max 25W Max 12W
Dimensions: 6.5 x 11.6" (166 x 295 mm) 8.9 x 15.1” (227 x 384.8mm) 5.9 x 2.2” (149 x 55mm)
in. (mm)
Weight: lbs (kg/g) 6.72 lbs (3.05kg) 11.64 lbs (5.28kg) 1.15 lbs (524g)
PTZ Wall Mount: PTZ Wall Mount:
Optional Brackets (Short) ST-GWMPTZ-A (Short) ST-GWMPTZ-A Junction Box: ST-GJB04-G
(Long) ST-GWMPTZ-B (Long) ST-GWMPTZ-B
Optional Controller ST-USB-KB N/A N/A
Price $539.00 $1,153.33 $296.00
