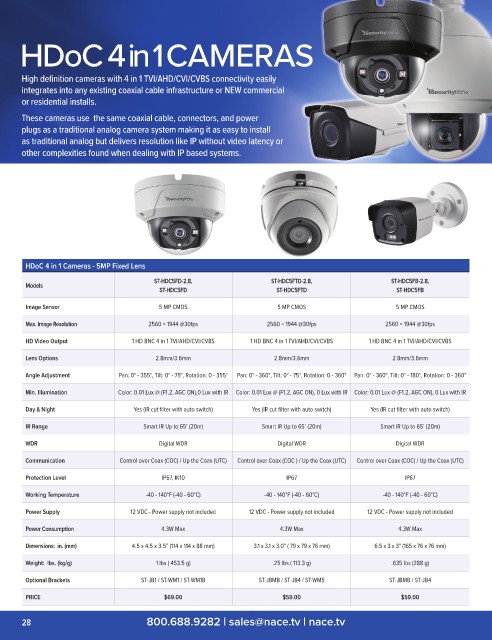

Page 30 - NACE T128 Full catalog_Web

Video Surveillance
Section/Product Header
HDoC 4 in 1 CAMERAS

High definition cameras with 4 in 1 TVI/AHD/CVI/CVBS connectivity easily
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
integrates into any existing coaxial cable infrastructure or NEW commercial
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
or residential installs.
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
These cameras use the same coaxial cable, connectors, and power
plugs as a traditional analog camera system making it as easy to install
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
as traditional analog but delivers resolution like IP without video latency or
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
other complexities found when dealing with IP based systems.

HDoC 4 in 1 Cameras - 5MP Fixed Lens
ST-HDC5FD-2.8, ST-HDC5FTD-2.8, ST-HDC5FB-2.8,
Models
ST-HDC5FD ST-HDC5FTD ST-HDC5FB
Image Sensor 5 MP CMOS 5 MP CMOS 5 MP CMOS

Max. Image Resolution 2560 × 1944 @30fps 2560 × 1944 @30fps 2560 × 1944 @30fps
HD Video Output 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS

Lens Options 2.8mm/3.6mm 2.8mm/3.6mm 2.8mm/3.6mm

Angle Adjustment Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0 - 355° Pan: 0° - 360°, Tilt: 0° - 75°, Rotation: 0 - 360° Pan: 0° - 360°, Tilt: 0° - 180°, Rotation: 0 - 360°
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),0 Lux with IR Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Day & Night Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch)
IR Range Smart IR Up to 65’ (20m) Smart IR Up to 65’ (20m) Smart IR Up to 65’ (20m)

WDR Digital WDR Digital WDR Digital WDR

Communication Control over Coax (COC) / Up the Coax (UTC) Control over Coax (COC ) / Up the Coax (UTC) Control over Coax (COC) / Up the Coax (UTC)
Protection Level IP67, IK10 IP67 IP67

Working Temperature -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C)

Power Supply 12 VDC - Power supply not included 12 VDC - Power supply not included 12 VDC - Power supply not included
Power Consumption 4.3W Max 4.3W Max 4.3W Max

Dimensions: in. (mm) 4.5 x 4.5 x 3.5" (114 x 114 x 88 mm) 3.1 x 3.1 x 3.0" ( 79 x 79 x 76 mm) 6.5 x 3 x 3" (165 x 76 x 76 mm)
Weight: lbs. (kg/g) 1 lbs ( 453.5 g) .25 lbs ( 113.3 g) .635 lbs (288 g)

Optional Brackets ST-JB1 / ST-WM1 / ST-WM1B ST-JBMB / ST-JB4 / ST-WM5 ST-JBMB / ST-JB4
PRICE $69.00 $59.00 $59.00
