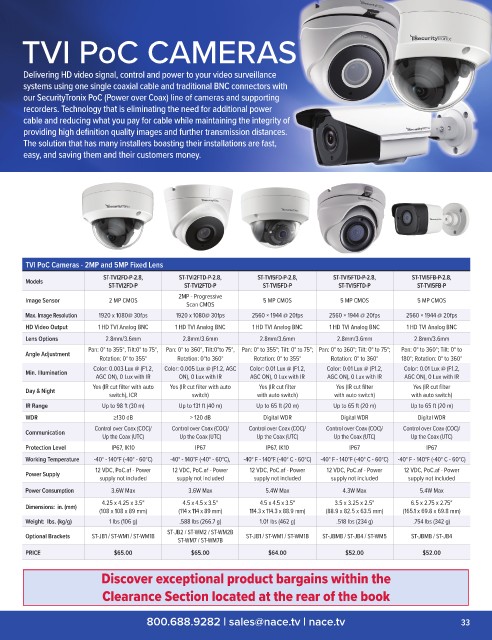

Page 35 - NACE T128 Full catalog_Web
P. 35
Video Surveillance
Video Surveillance Section/Product Header
Section/Product Header
TVI PoC CAMERAS
Delivering HD video signal, control and power to your video surveillance
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
systems using one single coaxial cable and traditional BNC connectors with
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
our SecurityTronix PoC (Power over Coax) line of cameras and supporting
recorders. Technology that is eliminating the need for additional power
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
cable and reducing what you pay for cable while maintaining the integrity of
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
providing high definition quality images and further transmission distances.
The solution that has many installers boasting their installations are fast,
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
easy, and saving them and their customers money.
TVI PoC Cameras - 2MP and 5MP Fixed Lens
ST-TVI2FD-P-2.8, ST-TVI2FTD-P-2.8, ST-TVI5FD-P-2.8, ST-TVI5FTD-P-2.8, ST-TVI5FB-P-2.8,
Models
ST-TVI2FD-P ST-TVI2FTD-P ST-TVI5FD-P ST-TVI5FTD-P ST-TVI5FB-P
2MP - Progressive
Image Sensor 2 MP CMOS 5 MP CMOS 5 MP CMOS 5 MP CMOS
Scan CMOS
Max. Image Resolution 1920 x 1080@ 30fps 1920 x 1080@ 30fps 2560 × 1944 @ 20fps 2560 × 1944 @ 20fps 2560 × 1944 @ 20fps
HD Video Output 1 HD TVI Analog BNC 1 HD TVI Analog BNC 1 HD TVI Analog BNC 1 HD TVI Analog BNC 1 HD TVI Analog BNC
Lens Options 2.8mm/3.6mm 2.8mm/3.6mm 2.8mm/3.6mm 2.8mm/3.6mm 2.8mm/3.6mm
Pan: 0° to 355°, Tilt:0° to 75°, Pan: 0° to 360°, Tilt:0°to 75°, Pan: 0° to 355°; Tilt: 0° to 75°; Pan: 0° to 360°; Tilt: 0° to 75°; Pan: 0° to 360°; Tilt: 0° to
Angle Adjustment
Rotation: 0° to 355° Rotation: 0°to 360° Rotation: 0° to 355° Rotation: 0° to 360° 180°; Rotation: 0° to 360°
Color: 0.003 Lux @ (F1.2, Color: 0.005 Lux @ (F1.2, AGC Color: 0.01 Lux @ (F1.2, Color: 0.01 Lux @ (F1.2, Color: 0.01 Lux @ (F1.2,
Min. Illumination
AGC ON), 0 Lux with IR ON), 0 Lux with IR AGC ON), 0 Lux with IR AGC ON), 0 Lux with IR AGC ON), 0 Lux with IR
Yes (IR cut filter with auto Yes (IR cut filter with auto Yes (IR cut filter Yes (IR cut filter Yes (IR cut filter
Day & Night
switch), ICR switch) with auto switch) with auto switch) with auto switch)
IR Range Up to 98 ft (30 m) Up to 131 ft (40 m) Up to 65 ft (20 m) Up to 65 ft (20 m) Up to 65 ft (20 m)
WDR ≥130 dB > 120 dB Digital WDR Digital WDR Digital WDR
Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/
Communication
Up the Coax (UTC) Up the Coax (UTC) Up the Coax (UTC) Up the Coax (UTC) Up the Coax (UTC)
Protection Level IP67, IK10 IP67 IP67, IK10 IP67 IP67
Working Temperature -40° - 140°F (-40° - 60°C) -40° - 140°F (-40° - 60°C), -40° F - 140°F (-40° C - 60°C) -40° F - 140°F (-40° C - 60°C) -40° F - 140°F (-40° C - 60°C)
12 VDC, PoC.af - Power 12 VDC, PoC.af - Power 12 VDC, PoC.af - Power 12 VDC, PoC.af - Power 12 VDC, PoC.af - Power
Power Supply
supply not included supply not included supply not included supply not included supply not included
Power Consumption 3.6W Max 3.6W Max 5.4W Max 4.3W Max 5.4W Max
4.25 x 4.25 x 3.5" 4.5 x 4.5 x 3.5" 4.5 x 4.5 x 3.5" 3.5 x 3.25 x 2.5" 6.5 x 2.75 x 2.75"
Dimensions: in. (mm)
(108 x 108 x 89 mm) (114 x 114 x 89 mm) 114.3 x 114.3 x 88.9 mm) (88.9 x 82.5 x 63.5 mm) (165.1 x 69.8 x 69.8 mm)
Weight: lbs. (kg/g) 1 lbs (106 g) .588 lbs (266.7 g) 1.01 lbs (462 g) .518 lbs (234 g) .754 lbs (342 g)
ST-JB2 / ST-WM2 / ST-WM2B
Optional Brackets ST-JB1 / ST-WM1 / ST-WM1B ST-JB1 / ST-WM1 / ST-WM1B ST-JBMB / ST-JB4 / ST-WM5 ST-JBMB / ST-JB4
ST-WM7 / ST-WM7B
PRICE $65.00 $65.00 $64.00 $52.00 $52.00
Discover exceptional product bargains within the
Clearance Section located at the rear of the book
