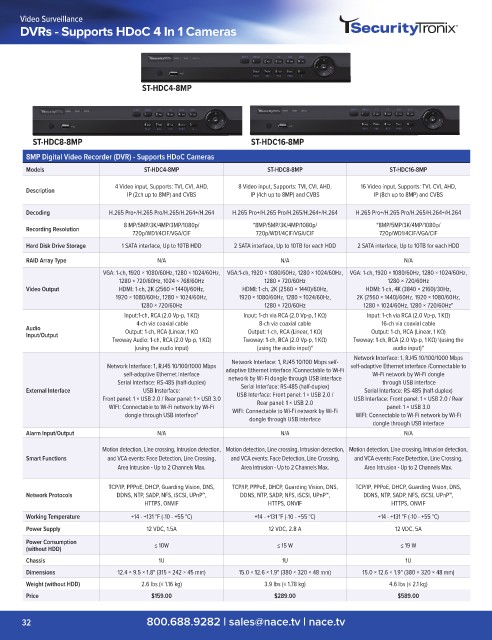

Page 34 - NACE T128 Full catalog_Web

Video Surveillance
DVRs - Supports HDoC 4 In 1 Cameras

ST-HDC4-8MP

ST-HDC8-8MP ST-HDC16-8MP
8MP Digital Video Recorder (DVR) - Supports HDoC Cameras
Models ST-HDC4-8MP ST-HDC8-8MP ST-HDC16-8MP

4 Video input, Supports: TVI, CVI, AHD, 8 Video input, Supports: TVI, CVI, AHD, 16 Video input, Supports: TVI, CVI, AHD,
Description
IP (2ch up to 8MP) and CVBS IP (4ch up to 8MP) and CVBS IP (8ch up to 8MP) and CVBS
Decoding H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
8 MP/5MP/3K/4MP/3MP/1080p/ "8MP/5MP/3K/4MP/1080p/ "8MP/5MP/3K/4MP/1080p/
Recording Resolution
720p/WD1/4CIF/VGA/CIF 720p/WD1/4CIF/VGA/CIF 720p/WD1/4CIF/VGA/CIF
Hard Disk Drive Storage 1 SATA interface, Up to 10TB HDD 2 SATA interface, Up to 10TB for each HDD 2 SATA interface, Up to 10TB for each HDD
RAID Array Type N/A N/A N/A
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz 1280 × 720/60Hz 1280 × 720/60Hz
Video Output HDMI: 1-ch, 2K (2560 × 1440)/60Hz, HDMI: 1-ch, 2K (2560 × 1440)/60Hz, HDMI: 1-ch, 4K (3840 × 2160)/30Hz,
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1280 × 720/60Hz 1280 × 720/60Hz 1280 × 1024/60Hz, 1280 × 720/60Hz"
Input:1-ch, RCA (2.0 Vp-p, 1 KΩ) Input: 1-ch via RCA (2.0 Vp-p, 1 KΩ) Input: 1-ch via RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable 8-ch via coaxial cable 16-ch via coaxial cable
Audio
Input/Output Output: 1-ch, RCA (Linear, 1 KΩ Output: 1-ch, RCA (Linear, 1 KΩ) Output: 1-ch, RCA (Linear, 1 KΩ)
Twoway Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) Twoway: 1-ch, RCA (2.0 Vp-p, 1 KΩ) Twoway: 1-ch, RCA (2.0 Vp-p, 1 KΩ) \(using the
(using the audio input) (using the audio input)" audio input)"
Network Interface: 1, RJ45 10/100/1000 Mbps
Network Interface: 1, RJ45 10/100 Mbps self-
Network Interface: 1, RJ45 10/100/1000 Mbps adaptive Ethernet interface /Connectable to Wi-Fi self-adaptive Ethernet interface /Connectable to
self-adaptive Ethernet interface Wi-Fi network by Wi-Fi dongle
Serial Interface: RS-485 (half-duplex) network by Wi-Fi dongle through USB interface through USB interface
Serial Interface: RS-485 (half-duplex)
External Interface USB Insterface: USB Interface: Front panel: 1 × USB 2.0 / Serial Interface: RS-485 (half-duplex)
Front panel: 1 × USB 2.0 / Rear panel: 1 × USB 3.0 Rear panel: 1 × USB 2.0 USB Interface: Front panel: 1 × USB 2.0 / Rear
WIFI: Connectable to Wi-Fi network by Wi-Fi WIFI: Connectable to Wi-Fi network by Wi-Fi panel: 1 × USB 3.0
dongle through USB interface" WIFI: Connectable to Wi-Fi network by Wi-Fi
dongle through USB interface
dongle through USB interface
Alarm Input/Output N/A N/A N/A
Motion detection, Line crossing, Intrusion detection, Motion detection, Line crossing, Intrusion detection, Motion detection, Line crossing, Intrusion detection,
Smart Functions and VCA events: Face Detection, Line Crossing, and VCA events: Face Detection, Line Crossing, and VCA events: Face Detection, Line Crossing,
Area Intrusion - Up to 2 Channels Max. Area Intrusion - Up to 2 Channels Max. Area Intrusion - Up to 2 Channels Max.

TCP/IP, PPPoE, DHCP, Guarding Vision, DNS, TCP/IP, PPPoE, DHCP, Guarding Vision, DNS, TCP/IP, PPPoE, DHCP, Guarding Vision, DNS,
Network Protocols DDNS, NTP, SADP, NFS, iSCSI, UPnP™, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF HTTPS, ONVIF HTTPS, ONVIF
Working Temperature +14 - +131 °F (-10 - +55 °C) +14 - +131 °F (-10 - +55 °C) +14 - +131 °F (-10 - +55 °C)
Power Supply 12 VDC, 1.5A 12 VDC, 2.8 A 12 VDC, 5A
Power Consumption ≤ 10W ≤ 15 W ≤ 19 W
(without HDD)
Chassis 1U 1U 1U
Dimensions 12.4 × 9.5 × 1.8" (315 × 242 × 45 mm) 15.0 × 12.6 × 1.9" (380 × 320 × 48 mm) 15.0 × 12.6 × 1.9" (380 × 320 × 48 mm)
Weight (without HDD) 2.6 lbs (≤ 1.16 kg) 3.9 lbs (≤ 1.78 kg) 4.6 lbs (≤ 2.1 kg)
Price $159.00 $289.00 $589.00

32 800.688.9282 | sales@nace.tv | nace.tv
