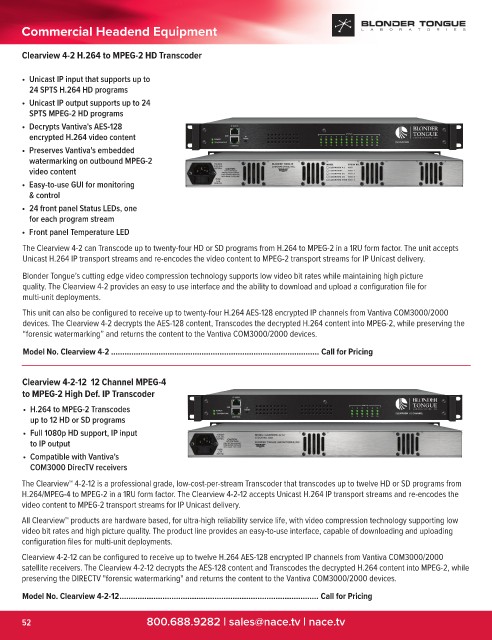

Page 54 - NACE T128 Full catalog_Web

Commercial Headend Equipment

Clearview 4-2 H.264 to MPEG-2 HD Transcoder

• Unicast IP input that supports up to
24 SPTS H.264 HD programs
• Unicast IP output supports up to 24
SPTS MPEG-2 HD programs
• Decrypts Vantiva's AES-128
encrypted H.264 video content
• Preserves Vantiva's embedded
watermarking on outbound MPEG-2
video content
• Easy-to-use GUI for monitoring
& control
• 24 front panel Status LEDs, one
for each program stream
• Front panel Temperature LED

The Clearview 4-2 can Transcode up to twenty-four HD or SD programs from H.264 to MPEG-2 in a 1RU form factor. The unit accepts
Unicast H.264 IP transport streams and re-encodes the video content to MPEG-2 transport streams for IP Unicast delivery.

Blonder Tongue’s cutting edge video compression technology supports low video bit rates while maintaining high picture
quality. The Clearview 4-2 provides an easy to use interface and the ability to download and upload a configuration file for
multi-unit deployments.

This unit can also be configured to receive up to twenty-four H.264 AES-128 encrypted IP channels from Vantiva COM3000/2000
devices. The Clearview 4-2 decrypts the AES-128 content, Transcodes the decrypted H.264 content into MPEG-2, while preserving the
“forensic watermarking” and returns the content to the Vantiva COM3000/2000 devices.

Model No. Clearview 4-2 ............................................................................................ Call for Pricing

Clearview 4-2-12 12 Channel MPEG-4
to MPEG-2 High Def. IP Transcoder

• H.264 to MPEG-2 Transcodes
up to 12 HD or SD programs
• Full 1080p HD support, IP input
to IP output
• Compatible with Vantiva's
COM3000 DirecTV receivers

The Clearview™ 4-2-12 is a professional grade, low-cost-per-stream Transcoder that transcodes up to twelve HD or SD programs from
H.264/MPEG-4 to MPEG-2 in a 1RU form factor. The Clearview 4-2-12 accepts Unicast H.264 IP transport streams and re-encodes the
video content to MPEG-2 transport streams for IP Unicast delivery.
All Clearview™ products are hardware based, for ultra-high reliability service life, with video compression technology supporting low
video bit rates and high picture quality. The product line provides an easy-to-use interface, capable of downloading and uploading
configuration files for multi-unit deployments.
Clearview 4-2-12 can be configured to receive up to twelve H.264 AES-128 encrypted IP channels from Vantiva COM3000/2000
satellite receivers. The Clearview 4-2-12 decrypts the AES-128 content and Transcodes the decrypted H.264 content into MPEG-2, while
preserving the DIRECTV "forensic watermarking" and returns the content to the Vantiva COM3000/2000 devices.

Model No. Clearview 4-2-12 ........................................................................................ Call for Pricing
