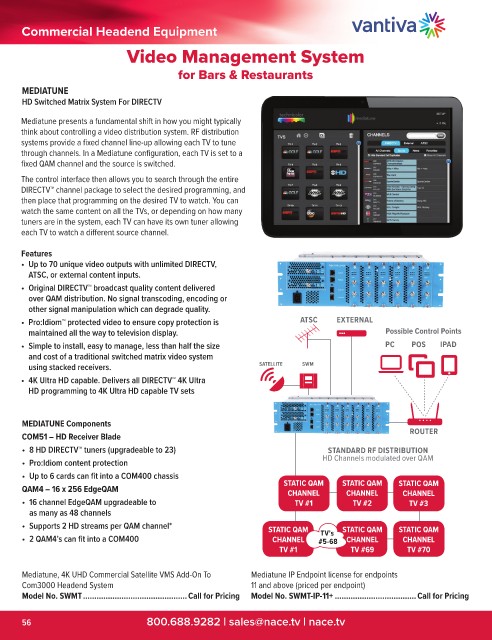

Page 58 - NACE T128 Full catalog_Web

Commercial Headend Equipment

Video Management System

for Bars & Restaurants

MEDIATUNE
HD Switched Matrix System For DIRECTV

Mediatune presents a fundamental shift in how you might typically
think about controlling a video distribution system. RF distribution
systems provide a fixed channel line-up allowing each TV to tune
through channels. In a Mediatune configuration, each TV is set to a
fixed QAM channel and the source is switched.
The control interface then allows you to search through the entire
DIRECTV™ channel package to select the desired programming, and
then place that programming on the desired TV to watch. You can
watch the same content on all the TVs, or depending on how many
tuners are in the system, each TV can have its own tuner allowing
each TV to watch a different source channel.

Features
• Up to 70 unique video outputs with unlimited DIRECTV,
ATSC, or external content inputs.
• Original DIRECTV™ broadcast quality content delivered
over QAM distribution. No signal transcoding, encoding or
other signal manipulation which can degrade quality.
• Pro:Idiom™ protected video to ensure copy protection is ATSC EXTERNAL
maintained all the way to television display. Possible Control Points
• Simple to install, easy to manage, less than half the size PC POS IPAD
and cost of a traditional switched matrix video system
using stacked receivers. SATELLITE SWM
• 4K Ultra HD capable. Delivers all DIRECTV™ 4K Ultra
HD programming to 4K Ultra HD capable TV sets

MEDIATUNE Components
COM51 – HD Receiver Blade ROUTER
• 8 HD DIRECTV™ tuners (upgradeable to 23) STANDARD RF DISTRIBUTION
• Pro:Idiom content protection HD Channels modulated over QAM
• Up to 6 cards can fit into a COM400 chassis
QAM4 – 16 x 256 EdgeQAM STATIC QAM STATIC QAM STATIC QAM
CHANNEL
CHANNEL
CHANNEL

• 16 channel EdgeQAM upgradeable to TV #1 TV #2 TV #3
as many as 48 channels
• Supports 2 HD streams per QAM channel* STATIC QAM STATIC QAM STATIC QAM
TV’s
• 2 QAM4’s can fit into a COM400 CHANNEL #5-68 CHANNEL CHANNEL
TV #1 TV #69 TV #70
Mediatune, 4K UHD Commercial Satellite VMS Add-On To Mediatune IP Endpoint license for endpoints
Com3000 Headend System 11 and above (priced per endpoint)
Model No. SWMT ..............................................Call for Pricing Model No. SWMT-IP-11+ ....................................Call for Pricing
