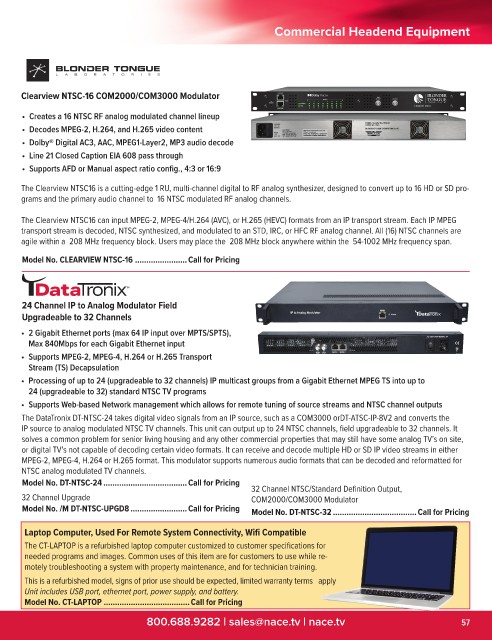

Page 59 - NACE T128 Full catalog_Web

Commercial Headend Equipment

Clearview NTSC-16 COM2000/COM3000 Modulator

• Creates a 16 NTSC RF analog modulated channel lineup
• Decodes MPEG-2, H.264, and H.265 video content
• Dolby® Digital AC3, AAC, MPEG1-Layer2, MP3 audio decode
• Line 21 Closed Caption EIA 608 pass through
• Supports AFD or Manual aspect ratio config., 4:3 or 16:9

The Clearview NTSC16 is a cutting-edge 1 RU, multi-channel digital to RF analog synthesizer, designed to convert up to 16 HD or SD pro-
grams and the primary audio channel to 16 NTSC modulated RF analog channels.

The Clearview NTSC16 can input MPEG-2, MPEG-4/H.264 (AVC), or H.265 (HEVC) formats from an IP transport stream. Each IP MPEG
transport stream is decoded, NTSC synthesized, and modulated to an STD, IRC, or HFC RF analog channel. All (16) NTSC channels are
agile within a 208 MHz frequency block. Users may place the 208 MHz block anywhere within the 54-1002 MHz frequency span.

Model No. CLEARVIEW NTSC-16 .......................Call for Pricing

24 Channel IP to Analog Modulator Field
Upgradeable to 32 Channels

• 2 Gigabit Ethernet ports (max 64 IP input over MPTS/SPTS),
Max 840Mbps for each Gigabit Ethernet input
• Supports MPEG-2, MPEG-4, H.264 or H.265 Transport
Stream (TS) Decapsulation
• Processing of up to 24 (upgradeable to 32 channels) IP multicast groups from a Gigabit Ethernet MPEG TS into up to
24 (upgradeable to 32) standard NTSC TV programs
• Supports Web-based Network management which allows for remote tuning of source streams and NTSC channel outputs
The DataTronix DT-NTSC-24 takes digital video signals from an IP source, such as a COM3000 orDT-ATSC-IP-8V2 and converts the
IP source to analog modulated NTSC TV channels. This unit can output up to 24 NTSC channels, field upgradeable to 32 channels. It
solves a common problem for senior living housing and any other commercial properties that may still have some analog TV’s on site,
or digital TV’s not capable of decoding certain video formats. It can receive and decode multiple HD or SD IP video streams in either
MPEG-2, MPEG-4, H.264 or H.265 format. This modulator supports numerous audio formats that can be decoded and reformatted for
NTSC analog modulated TV channels.
Model No. DT-NTSC-24 .....................................Call for Pricing 32 Channel NTSC/Standard Definition Output,
32 Channel Upgrade COM2000/COM3000 Modulator
Model No. /M DT-NTSC-UPGD8 .........................Call for Pricing Model No. DT-NTSC-32 .....................................Call for Pricing

Laptop Computer, Used For Remote System Connectivity, Wifi Compatible
The CT-LAPTOP is a refurbished laptop computer customized to customer specifications for
needed programs and images. Common uses of this item are for customers to use while re-
motely troubleshooting a system with property maintenance, and for technician training.
This is a refurbished model, signs of prior use should be expected, limited warranty terms apply
Unit includes USB port, ethernet port, power supply, and battery.
Model No. CT-LAPTOP ......................................Call for Pricing
