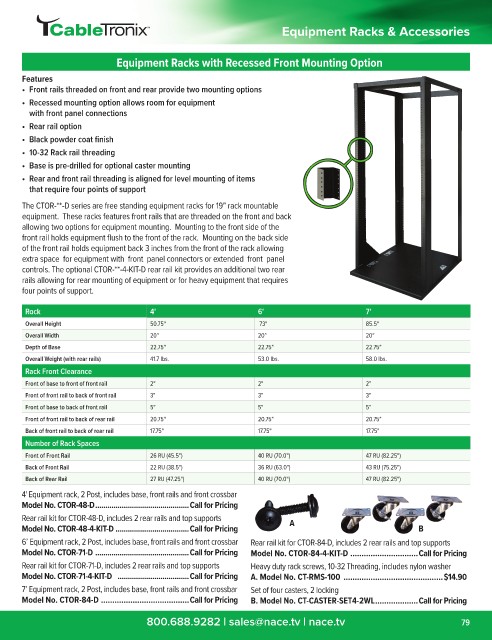

Equipment Racks & Accessories
Equipment Racks with Recessed Front Mounting Option
Features
• Front rails threaded on front and rear provide two mounting options
• Recessed mounting option allows room for equipment
with front panel connections
• Rear rail option
• Black powder coat finish
• 10-32 Rack rail threading
• Base is pre-drilled for optional caster mounting
• Rear and front rail threading is aligned for level mounting of items
that require four points of support
The CTOR-**-D series are free standing equipment racks for 19" rack mountable
equipment. These racks features front rails that are threaded on the front and back
allowing two options for equipment mounting. Mounting to the front side of the
front rail holds equipment flush to the front of the rack. Mounting on the back side
of the front rail holds equipment back 3 inches from the front of the rack allowing
extra space for equipment with front panel connectors or extended front panel
controls. The optional CTOR-**-4-KIT-D rear rail kit provides an additional two rear
rails allowing for rear mounting of equipment or for heavy equipment that requires
four points of support.
Rack 4' 6' 7'
Overall Height 50.75" 73" 85.5"
Overall Width 20" 20" 20"
Depth of Base 22.75" 22.75" 22.75"
Overall Weight (with rear rails) 41.7 lbs. 53.0 lbs. 58.0 lbs.
Rack Front Clearance
Front of base to front of front rail 2" 2" 2"
Front of front rail to back of front rail 3" 3" 3"
Front of base to back of front rail 5" 5" 5"
Front of front rail to back of rear rail 20.75" 20.75" 20.75"
Back of front rail to back of rear rail 17.75" 17.75" 17.75"
Number of Rack Spaces
Front of Front Rail 26 RU (45.5") 40 RU (70.0") 47 RU (82.25")
Back of Front Rail 22 RU (38.5") 36 RU (63.0") 43 RU (75.25")
Back of Rear Rail 27 RU (47.25") 40 RU (70.0") 47 RU (82.25")
4ʹ Equipment rack, 2 Post, includes base, front rails and front crossbar
Model No. CTOR-48-D ..............................................Call for Pricing
Rear rail kit for CTOR-48-D, includes 2 rear rails and top supports A
Model No. CTOR-48-4-KIT-D ....................................Call for Pricing B
6’ Equipment rack, 2 Post, includes base, front rails and front crossbar Rear rail kit for CTOR-84-D, includes 2 rear rails and top supports
Model No. CTOR-71-D ..............................................Call for Pricing Model No. CTOR-84-4-KIT-D ..............................Call for Pricing
Rear rail kit for CTOR-71-D, includes 2 rear rails and top supports Heavy duty rack screws, 10-32 Threading, includes nylon washer
Model No. CTOR-71-4-KIT-D ...................................Call for Pricing A. Model No. CT-RMS-100 ............................................$14.90
7’ Equipment rack, 2 Post, includes base, front rails and front crossbar Set of four casters, 2 locking
Model No. CTOR-84-D .......................................Call for Pricing B. Model No. CT-CASTER-SET4-2WL ...................Call for Pricing
