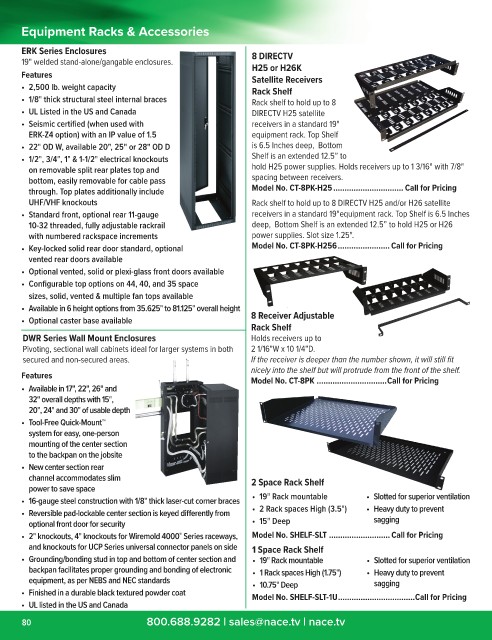

P. 82
Equipment Racks & Accessories
ERK Series Enclosures 8 DIRECTV
19" welded stand-alone/gangable enclosures. H25 or H26K
Features Satellite Receivers
• 2,500 lb. weight capacity Rack Shelf
• 1/8" thick structural steel internal braces Rack shelf to hold up to 8
• UL Listed in the US and Canada DIRECTV H25 satellite
• Seismic certified (when used with receivers in a standard 19"
ERK-Z4 option) with an IP value of 1.5 equipment rack. Top Shelf
• 22" OD W, available 20", 25" or 28" OD D is 6.5 Inches deep, Bottom
• 1/2", 3/4", 1" & 1-1/2" electrical knockouts Shelf is an extended 12.5” to
on removable split rear plates top and hold H25 power supplies. Holds receivers up to 1 3/16" with 7/8"
bottom, easily removable for cable pass spacing between receivers.
through. Top plates additionally include Model No. CT-8PK-H25 ............................... Call for Pricing
UHF/VHF knockouts Rack shelf to hold up to 8 DIRECTV H25 and/or H26 satellite
• Standard front, optional rear 11-gauge receivers in a standard 19"equipment rack. Top Shelf is 6.5 Inches
10-32 threaded, fully adjustable rackrail deep, Bottom Shelf is an extended 12.5” to hold H25 or H26
with numbered rackspace increments power supplies. Slot size 1.25".
• Key-locked solid rear door standard, optional Model No. CT-8PK-H256 ....................... Call for Pricing
vented rear doors available
• Optional vented, solid or plexi-glass front doors available
• Configurable top options on 44, 40, and 35 space
sizes, solid, vented & multiple fan tops available
• Available in 6 height options from 35.625" to 81.125" overall height
• Optional caster base available 8 Receiver Adjustable
Rack Shelf
DWR Series Wall Mount Enclosures Holds receivers up to
Pivoting, sectional wall cabinets ideal for larger systems in both 2 1/16"W x 10 1/4"D.
secured and non-secured areas. If the receiver is deeper than the number shown, it will still fit
nicely into the shelf but will protrude from the front of the shelf.
Features Model No. CT-8PK ...............................Call for Pricing
• Available in 17", 22", 26" and
32" overall depths with 15",
20", 24" and 30" of usable depth
• Tool-Free Quick-Mount™
system for easy, one-person
mounting of the center section
to the backpan on the jobsite
• New center section rear
channel accommodates slim 2 Space Rack Shelf
power to save space
• 16-gauge steel construction with 1/8" thick laser-cut corner braces • 19" Rack mountable • Slotted for superior ventilation
• Reversible pad-lockable center section is keyed differently from • 2 Rack spaces High (3.5") • Heavy duty to prevent
optional front door for security • 15" Deep sagging
• 2" knockouts, 4" knockouts for Wiremold 4000 Series raceways, Model No. SHELF-SLT ........................... Call for Pricing
®
and knockouts for UCP Series universal connector panels on side 1 Space Rack Shelf
• Grounding/bonding stud in top and bottom of center section and • 19" Rack mountable • Slotted for superior ventilation
backpan facilitates proper grounding and bonding of electronic • 1 Rack spaces High (1.75") • Heavy duty to prevent
equipment, as per NEBS and NEC standards • 10.75" Deep sagging
• Finished in a durable black textured powder coat Model No. SHELF-SLT-1U ..................................Call for Pricing
• UL listed in the US and Canada
80 800.688.9282 | sales@nace.tv | nace.tv
