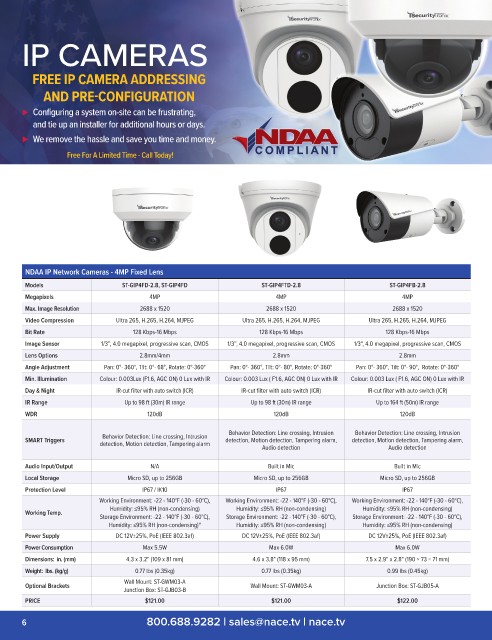

Page 8 - NACE T128 Full catalog_Web
P. 8
Video Surveillance
Section/Product Header
IP CAMERAS
FREE IP CAMERA ADDRESSING
AND PRE-CONFIGURATION
⊲ Configuring a system on-site can be frustrating,
and tie up an installer for additional hours or days.
⊲ We remove the hassle and save you time and money.
Free For A Limited Time - Call Today!
NDAA IP Network Cameras - 4MP Fixed Lens
Models ST-GIP4FD-2.8, ST-GIP4FD ST-GIP4FTD-2.8 ST-GIP4FB-2.8
Megapixels 4MP 4MP 4MP
Max. Image Resolution 2688 x 1520 2688 x 1520 2688 x 1520
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Bit Rate 128 Kbps-16 Mbps 128 Kbps-16 Mbps 128 Kbps-16 Mbps
Image Sensor 1/3”, 4.0 megapixel, progressive scan, CMOS 1/3”, 4.0 megapixel, progressive scan, CMOS 1/3", 4.0 megapixel, progressive scan, CMOS
Lens Options 2.8mm/4mm 2.8mm 2.8mm
Angle Adjustment Pan: 0°- 360°, Tilt: 0°- 68°, Rotate: 0°-360° Pan: 0°- 360°, Tilt: 0°- 80°, Rotate: 0°-360° Pan: 0°- 360°, Tilt: 0°- 90°, Rotate: 0°-360°
Min. Illumination Colour: 0.003Lux (F1.6, AGC ON) 0 Lux with IR Colour: 0.003 Lux ( F1.6, AGC ON) 0 Lux with IR Colour: 0.003 Lux ( F1.6, AGC ON) 0 Lux with IR
Day & Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
IR Range Up to 98 ft (30m) IR range Up to 98 ft (30m) IR range Up to 164 ft (50m) IR range
WDR 120dB 120dB 120dB
Behavior Detection: Line crossing, Intrusion Behavior Detection: Line crossing, Intrusion
SMART Triggers Behavior Detection: Line crossing, Intrusion detection, Motion detection, Tampering alarm, detection, Motion detection, Tampering alarm,
detection, Motion detection, Tampering alarm Audio detection Audio detection
Audio Input/Output N/A Built in Mic Built in Mic
Local Storage Micro SD, up to 256GB Micro SD, up to 256GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 IP67
Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Working Temp.
Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing)" Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Power Supply DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 5.5W Max 6.0W Max 6.0W
Dimensions: in. (mm) 4.3 x 3.2" (109 x 81 mm) 4.6 x 3.8" (118 x 95 mm) 7.5 x 2.9" x 2.8" (190 × 73 × 71 mm)
Weight: lbs. (kg/g) 0.77 lbs (0.35kg) 0.77 lbs (0.35kg) 0.99 lbs (0.45kg)
Wall Mount: ST-GWM03-A
Optional Brackets Wall Mount: ST-GWM03-A Junction Box: ST-GJB05-A
Junction Box: ST-GJB03-B
PRICE $121.00 $121.00 $122.00
