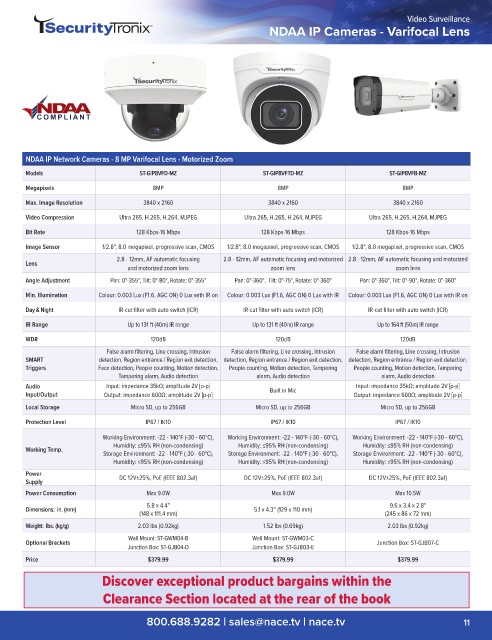

Page 13 - NACE T128 Full catalog_Web

Video Surveillance
NDAA IP Cameras - Varifocal Lens

NDAA IP Network Cameras - 8 MP Varifocal Lens - Motorized Zoom

Models ST-GIP8VFD-MZ ST-GIP8VFTD-MZ ST-GIP8VFB-MZ
Megapixels 8MP 8MP 8MP
Max. Image Resolution 3840 x 2160 3840 x 2160 3840 x 2160
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG

Bit Rate 128 Kbps-16 Mbps 128 Kbps-16 Mbps 128 Kbps-16 Mbps
Image Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS 1/2.8", 8.0 megapixel, progressive scan, CMOS 1/2.8", 8.0 megapixel, progressive scan, CMOS
2.8 - 12mm, AF automatic focusing 2.8 - 12mm, AF automatic focusing and motorized 2.8 - 12mm, AF automatic focusing and motorized
Lens
and motorized zoom lens zoom lens zoom lens
Angle Adjustment Pan: 0°-355°, Tilt: 0°-80°, Rotate: 0°-355° Pan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360° Pan: 0°-360°, Tilt: 0°-90°, Rotate: 0°-360°
Min. Illumination Colour: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR on Colour: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR Colour: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR on

Day & Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
IR Range Up to 131 ft (40m) IR range Up to 131 ft (40m) IR range Up to 164 ft (50m) IR range
WDR 120dB 120dB 120dB
False alarm filtering, Line crossing, Intrusion False alarm filtering, Line crossing, Intrusion False alarm filtering, Line crossing, Intrusion
SMART detection, Region entrance / Region exit detection, detection, Region entrance / Region exit detection, detection, Region entrance / Region exit detection,
Triggers Face detection, People counting, Motion detection, People counting, Motion detection, Tampering People counting, Motion detection, Tampering
Tampering alarm, Audio detection alarm, Audio detection alarm, Audio detection
Audio Input: impedance 35kΩ; amplitude 2V [p-p] Built in Mic Input: impedance 35kΩ; amplitude 2V [p-p]
Input/Output Output: impedance 600Ω; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
Local Storage Micro SD, up to 256GB Micro SD, up to 256GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 / IK10 IP67 / IK10
Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Working Temp.
Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Power DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af)
Supply
Power Consumption Max 9.0W Max 9.0W Max 10.5W
5.8 x 4.4" 9.6 x 3.4 x 2.8"
Dimensions: in. (mm) 5.1 x 4.3” (129 x 110 mm)
(148 x 111.4 mm) (245 x 86 x 72 mm)
Weight: lbs. (kg/g) 2.03 lbs (0.92kg) 1.52 lbs (0.69kg) 2.03 lbs (0.92kg)
Wall Mount: ST-GWM04-B Wall Mount: ST-GWM03-C
Optional Brackets Junction Box: ST-GJB07-C
Junction Box: ST-GJB04-D Junction Box: ST-GJB03-E
Price $379.99 $379.99 $379.99
