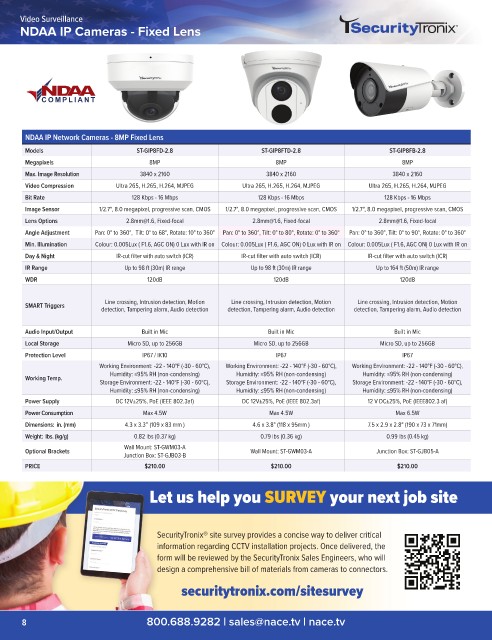

Page 10 - NACE T128 Full catalog_Web

Video Surveillance
NDAA IP Cameras - Fixed Lens

NDAA IP Network Cameras - 8MP Fixed Lens
Models ST-GIP8FD-2.8 ST-GIP8FTD-2.8 ST-GIP8FB-2.8
Megapixels 8MP 8MP 8MP
Max. Image Resolution 3840 x 2160 3840 x 2160 3840 x 2160
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Bit Rate 128 Kbps - 16 Mbps 128 Kbps - 16 Mbps 128 Kbps - 16 Mbps
Image Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS 1/2.7", 8.0 megapixel, progressive scan, CMOS 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens Options 2.8mm@1.6, Fixed-focal 2.8mm@1.6, Fixed-focal 2.8mm@1.6, Fixed-focal
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Min. Illumination Colour: 0.005Lux ( F1.6, AGC ON) 0 Lux with IR on Colour: 0.005Lux ( F1.6, AGC ON) 0 Lux with IR on Colour: 0.005Lux ( F1.6, AGC ON) 0 Lux with IR on
Day & Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
IR Range Up to 98 ft (30m) IR range Up to 98 ft (30m) IR range Up to 164 ft (50m) IR range
WDR 120dB 120dB 120dB

Line crossing, Intrusion detection, Motion Line crossing, Intrusion detection, Motion Line crossing, Intrusion detection, Motion
SMART Triggers
detection, Tampering alarm, Audio detection detection, Tampering alarm, Audio detection detection, Tampering alarm, Audio detection

Audio Input/Output Built in Mic Built in Mic Built in Mic
Local Storage Micro SD, up to 256GB Micro SD, up to 256GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 IP67
Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Working Temp.
Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Power Supply DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af) 12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption Max 4.5W Max 4.5W Max 6.5W
Dimensions: in. (mm) 4.3 x 3.3” (109 x 83 mm ) 4.6 x 3.8" (118 x 95mm ) 7.5 x 2.9 x 2.8" (190 x 73 x 71mm)
Weight: lbs. (kg/g) 0.82 lbs (0.37 kg) 0.79 lbs (0.36 kg) 0.99 lbs (0.45 kg)
Wall Mount: ST-GWM03-A
Optional Brackets Wall Mount: ST-GWM03-A Junction Box: ST-GJB05-A
Junction Box: ST-GJB03-B
PRICE $210.00 $210.00 $210.00

Let us help you SURVEY your next job site

SecurityTronix® site survey provides a concise way to deliver critical
information regarding CCTV installation projects. Once delivered, the
form will be reviewed by the SecurityTronix Sales Engineers, who will
design a comprehensive bill of materials from cameras to connectors.

securitytronix.com/sitesurvey

8 800.688.9282 | sales@nace.tv | nace.tv
