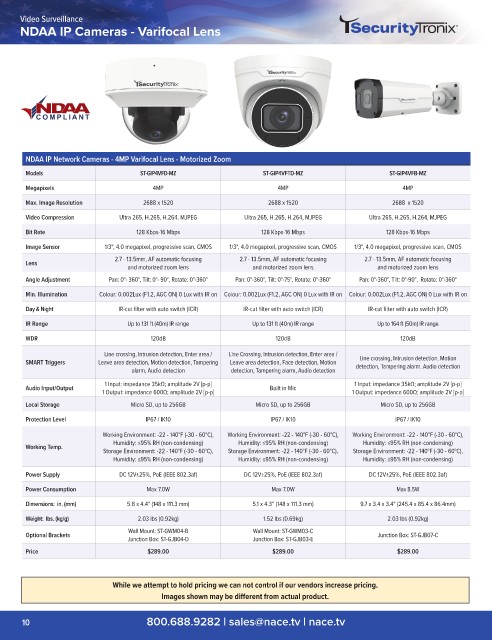

Page 12 - NACE T128 Full catalog_Web

Video Surveillance
NDAA IP Cameras - Varifocal Lens

NDAA IP Network Cameras - 4MP Varifocal Lens - Motorized Zoom

Models ST-GIP4VFD-MZ ST-GIP4VFTD-MZ ST-GIP4VFB-MZ
Megapixels 4MP 4MP 4MP
Max. Image Resolution 2688 x 1520 2688 x 1520 2688 x 1520
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG

Bit Rate 128 Kbps-16 Mbps 128 Kbps-16 Mbps 128 Kbps-16 Mbps
Image Sensor 1/3", 4.0 megapixel, progressive scan, CMOS 1/3", 4.0 megapixel, progressive scan, CMOS 1/3", 4.0 megapixel, progressive scan, CMOS
2.7 - 13.5mm, AF automatic focusing 2.7 - 13.5mm, AF automatic focusing 2.7 - 13.5mm, AF automatic focusing
Lens
and motorized zoom lens and motorized zoom lens and motorized zoom lens
Angle Adjustment Pan: 0°- 360°, Tilt: 0°- 90°, Rotate: 0°-360° Pan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360° Pan: 0°-360°, Tilt: 0°-90°, Rotate: 0°-360°
Min. Illumination Colour: 0.002Lux (F1.2, AGC ON) 0 Lux with IR on Colour: 0.002Lux (F1.2, AGC ON) 0 Lux with IR on Colour: 0.002Lux (F1.2, AGC ON) 0 Lux with IR on
Day & Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)

IR Range Up to 131 ft (40m) IR range Up to 131 ft (40m) IR range Up to 164 ft (50m) IR range
WDR 120dB 120dB 120dB
Line crossing, Intrusion detection, Enter area / Line Crossing, Intrusion detection, Enter area /
Line crossing, Intrusion detection, Motion
SMART Triggers Leave area detection, Motion detection, Tampering Leave area detection, Face detection, Motion detection, Tampering alarm, Audio detection
alarm, Audio detection detection, Tampering alarm, Audio detection
1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 Input: impedance 35kΩ; amplitude 2V [p-p]
Audio Input/Output Built in Mic
1 Output: impedance 600Ω; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p]
Local Storage Micro SD, up to 256GB Micro SD, up to 256GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 / IK10 IP67 / IK10

Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C), Working Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Working Temp.
Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C), Storage Environment: -22 - 140°F (-30 - 60°C),
Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing) Humidity: ≤95% RH (non-condensing)
Power Supply DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af) DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 7.0W Max 7.0W Max 8.5W
Dimensions: in. (mm) 5.8 x 4.4" (148 x 111.3 mm) 5.1 x 4.3” (148 x 111.3 mm) 9.7 x 3.4 x 3.4" (245.4 x 85.4 x 86.4mm)

Weight: lbs. (kg/g) 2.03 lbs (0.92kg) 1.52 lbs (0.69kg) 2.03 lbs (0.92kg)
Wall Mount: ST-GWM04-B Wall Mount: ST-GWM03-C
Optional Brackets Junction Box: ST-GJB07-C
Junction Box: ST-GJB04-D Junction Box: ST-GJB03-E
Price $289.00 $289.00 $289.00

While we attempt to hold pricing we can not control if our vendors increase pricing.
Images shown may be different from actual product.
