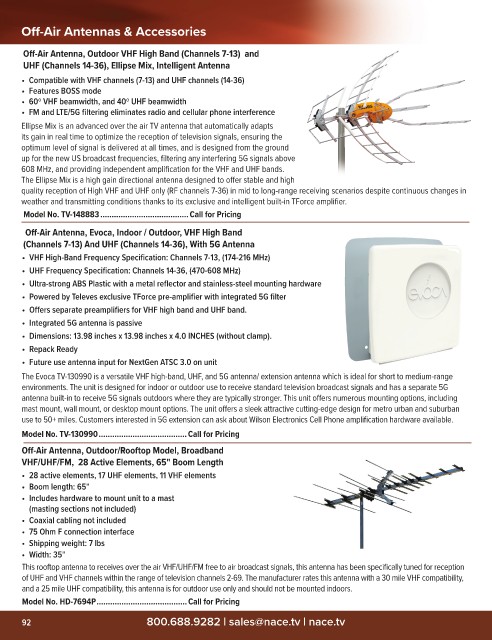

Page 94 - NACE T128 Full catalog_Web

Off-Air Antennas & Accessories

Off-Air Antenna, Outdoor VHF High Band (Channels 7-13) and
UHF (Channels 14-36), Ellipse Mix, Intelligent Antenna
• Compatible with VHF channels (7-13) and UHF channels (14-36)
• Features BOSS mode
• 60º VHF beamwidth, and 40º UHF beamwidth
• FM and LTE/5G filtering eliminates radio and cellular phone interference
Ellipse Mix is an advanced over the air TV antenna that automatically adapts
its gain in real time to optimize the reception of television signals, ensuring the
optimum level of signal is delivered at all times, and is designed from the ground
up for the new US broadcast frequencies, filtering any interfering 5G signals above
608 MHz, and providing independent amplification for the VHF and UHF bands.
The Ellipse Mix is a high gain directional antenna designed to offer stable and high
quality reception of High VHF and UHF only (RF channels 7-36) in mid to long-range receiving scenarios despite continuous changes in
weather and transmitting conditions thanks to its exclusive and intelligent built-in TForce amplifier.
Model No. TV-148883 .......................................Call for Pricing
Off-Air Antenna, Evoca, Indoor / Outdoor, VHF High Band
(Channels 7-13) And UHF (Channels 14-36), With 5G Antenna
• VHF High-Band Frequency Specification: Channels 7-13, (174-216 MHz)
• UHF Frequency Specification: Channels 14-36, (470-608 MHz)
• Ultra-strong ABS Plastic with a metal reflector and stainless-steel mounting hardware
• Powered by Televes exclusive TForce pre-amplifier with integrated 5G filter
• Offers separate preamplifiers for VHF high band and UHF band.
• Integrated 5G antenna is passive
• Dimensions: 13.98 inches x 13.98 inches x 4.0 INCHES (without clamp).
• Repack Ready
• Future use antenna input for NextGen ATSC 3.0 on unit
The Evoca TV-130990 is a versatile VHF high-band, UHF, and 5G antenna/ extension antenna which is ideal for short to medium-range
environments. The unit is designed for indoor or outdoor use to receive standard television broadcast signals and has a separate 5G
antenna built-in to receive 5G signals outdoors where they are typically stronger. This unit offers numerous mounting options, including
mast mount, wall mount, or desktop mount options. The unit offers a sleek attractive cutting-edge design for metro urban and suburban
use to 50+ miles. Customers interested in 5G extension can ask about Wilson Electronics Cell Phone amplification hardware available.
Model No. TV-130990 .......................................Call for Pricing

Off-Air Antenna, Outdoor/Rooftop Model, Broadband
VHF/UHF/FM, 28 Active Elements, 65" Boom Length
• 28 active elements, 17 UHF elements, 11 VHF elements
• Boom length: 65"
• Includes hardware to mount unit to a mast
(masting sections not included)
• Coaxial cabling not included
• 75 Ohm F connection interface
• Shipping weight: 7 lbs
• Width: 35"
This rooftop antenna to receives over the air VHF/UHF/FM free to air broadcast signals, this antenna has been specifically tuned for reception
of UHF and VHF channels within the range of television channels 2-69. The manufacturer rates this antenna with a 30 mile VHF compatibility,
and a 25 mile UHF compatibility, this antenna is for outdoor use only and should not be mounted indoors.
Model No. HD-7694P ........................................Call for Pricing
