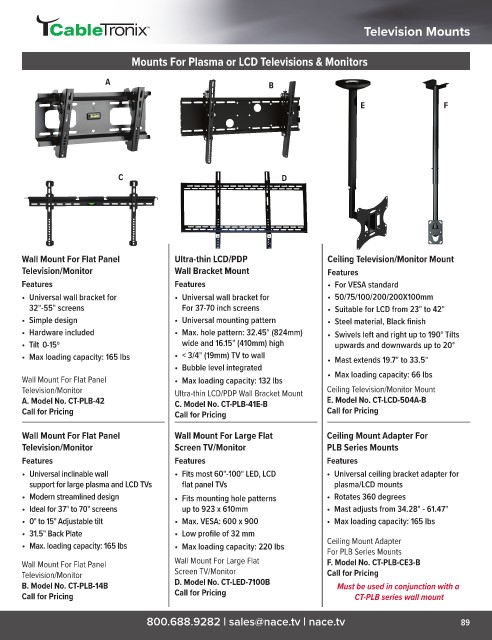

Television Mounts

Mounts For Plasma or LCD Televisions & Monitors

A B

E F

C D

Wall Mount For Flat Panel Ultra-thin LCD/PDP Ceiling Television/Monitor Mount
Television/Monitor Wall Bracket Mount Features
Features Features • For VESA standard
• Universal wall bracket for • Universal wall bracket for • 50/75/100/200/200X100mm
32"-55" screens For 37-70 inch screens • Suitable for LCD from 23" to 42"
• Simple design • Universal mounting pattern • Steel material, Black finish
• Hardware included • Max. hole pattern: 32.45" (824mm) • Swivels left and right up to 190° Tilts
• Tilt 0-15º wide and 16.15" (410mm) high upwards and downwards up to 20°
• Max loading capacity: 165 lbs • < 3/4" (19mm) TV to wall • Mast extends 19.7" to 33.5"
• Bubble level integrated
Wall Mount For Flat Panel • Max loading capacity: 132 lbs • Max loading capacity: 66 lbs
Television/Monitor Ultra-thin LCD/PDP Wall Bracket Mount Ceiling Television/Monitor Mount
A. Model No. CT-PLB-42 C. Model No. CT-PLB-41E-B E. Model No. CT-LCD-504A-B
Call for Pricing Call for Pricing Call for Pricing

Wall Mount For Flat Panel Wall Mount For Large Flat Ceiling Mount Adapter For
Television/Monitor Screen TV/Monitor PLB Series Mounts
Features Features Features
• Universal inclinable wall • Fits most 60"-100" LED, LCD • Universal ceiling bracket adapter for
support for large plasma and LCD TVs flat panel TVs plasma/LCD mounts
• Modern streamlined design • Fits mounting hole patterns • Rotates 360 degrees
• Ideal for 37" to 70" screens up to 923 x 610mm • Mast adjusts from 34.28" - 61.47"
• 0° to 15° Adjustable tilt • Max. VESA: 600 x 900 • Max loading capacity: 165 lbs
• 31.5" Back Plate • Low profile of 32 mm
• Max. loading capacity: 165 lbs • Max loading capacity: 220 lbs Ceiling Mount Adapter
For PLB Series Mounts
Wall Mount For Flat Panel Wall Mount For Large Flat F. Model No. CT-PLB-CE3-B
Television/Monitor Screen TV/Monitor Call for Pricing
B. Model No. CT-PLB-14B D. Model No. CT-LED-7100B Must be used in conjunction with a
Call for Pricing Call for Pricing CT-PLB series wall mount
