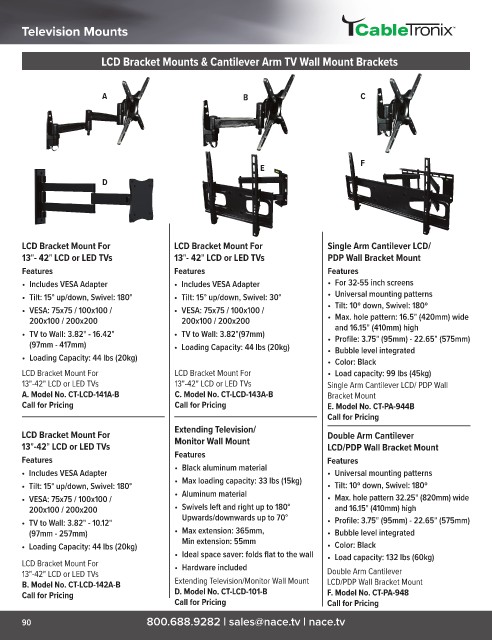

P. 92
Television Mounts
LCD Bracket Mounts & Cantilever Arm TV Wall Mount Brackets
A B C
E F
D
LCD Bracket Mount For LCD Bracket Mount For Single Arm Cantilever LCD/
13"- 42" LCD or LED TVs 13"- 42" LCD or LED TVs PDP Wall Bracket Mount
Features Features Features
• Includes VESA Adapter • Includes VESA Adapter • For 32-55 inch screens
• Tilt: 15° up/down, Swivel: 180° • Tilt: 15° up/down, Swivel: 30° • Universal mounting patterns
• VESA: 75x75 / 100x100 / • VESA: 75x75 / 100x100 / • Tilt: 10º down, Swivel: 180º
200x100 / 200x200 200x100 / 200x200 • Max. hole pattern: 16.5" (420mm) wide
and 16.15" (410mm) high
• TV to Wall: 3.82" - 16.42" • TV to Wall: 3.82"(97mm) • Profile: 3.75" (95mm) - 22.65" (575mm)
(97mm - 417mm) • Loading Capacity: 44 lbs (20kg) • Bubble level integrated
• Loading Capacity: 44 lbs (20kg) • Color: Black
LCD Bracket Mount For LCD Bracket Mount For • Load capacity: 99 lbs (45kg)
13"-42" LCD or LED TVs 13"-42" LCD or LED TVs Single Arm Cantilever LCD/ PDP Wall
A. Model No. CT-LCD-141A-B C. Model No. CT-LCD-143A-B Bracket Mount
Call for Pricing Call for Pricing E. Model No. CT-PA-944B
Call for Pricing
Extending Television/
LCD Bracket Mount For Double Arm Cantilever
13"-42" LCD or LED TVs Monitor Wall Mount LCD/PDP Wall Bracket Mount
Features Features Features
• Includes VESA Adapter • Black aluminum material • Universal mounting patterns
• Tilt: 15° up/down, Swivel: 180° • Max loading capacity: 33 lbs (15kg) • Tilt: 10º down, Swivel: 180º
• VESA: 75x75 / 100x100 / • Aluminum material • Max. hole pattern 32.25" (820mm) wide
200x100 / 200x200 • Swivels left and right up to 180° and 16.15" (410mm) high
• TV to Wall: 3.82" - 10.12" Upwards/downwards up to 70° • Profile: 3.75" (95mm) - 22.65" (575mm)
(97mm - 257mm) • Max extension: 365mm, • Bubble level integrated
• Loading Capacity: 44 lbs (20kg) Min extension: 55mm • Color: Black
• Ideal space saver: folds flat to the wall • Load capacity: 132 lbs (60kg)
LCD Bracket Mount For • Hardware included
13"-42" LCD or LED TVs Double Arm Cantilever
B. Model No. CT-LCD-142A-B Extending Television/Monitor Wall Mount LCD/PDP Wall Bracket Mount
Call for Pricing D. Model No. CT-LCD-101-B F. Model No. CT-PA-948
Call for Pricing Call for Pricing
90 800.688.9282 | sales@nace.tv | nace.tv
