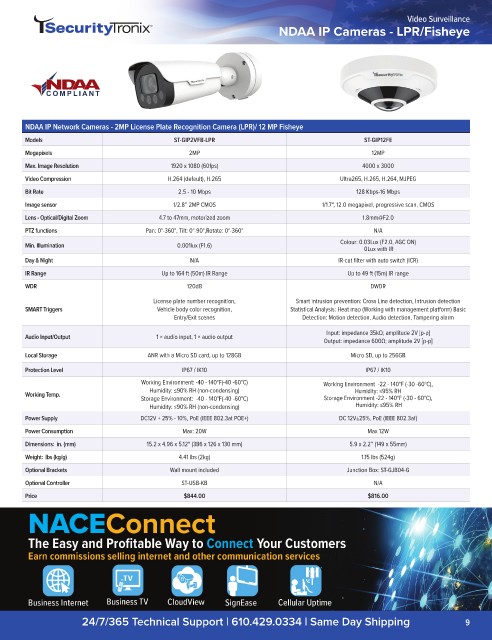

Page 11 - NACE T128 Full catalog_Web

Video Surveillance
NDAA IP Cameras - LPR/Fisheye

NDAA IP Network Cameras - 2MP License Plate Recognition Camera (LPR)/ 12 MP Fisheye

Models ST-GIP2VFB-LPR ST-GIP12FE
Megapixels 2MP 12MP
Max. Image Resolution 1920 x 1080 (60fps) 4000 x 3000
Video Compression H.264 (default), H.265 Ultra265, H.265, H.264, MJPEG
Bit Rate 2.5 - 10 Mbps 128 Kbps-16 Mbps
Image sensor 1/2.8” 2MP CMOS 1/1.7", 12.0 megapixel, progressive scan, CMOS
Lens - Optical/Digital Zoom 4.7 to 47mm, motorized zoom 1.8mm@F2.0
PTZ functions Pan: 0°-360°, Tilt: 0°-90°,Rotate: 0°-360° N/A

Min. Illumination 0.001lux (F1.6) Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR
Day & Night N/A IR-cut filter with auto switch (ICR)
IR Range Up to 164 ft (50m) IR Range Up to 49 ft (15m) IR range
WDR 120dB DWDR
License plate number recognition, Smart intrusion prevention: Cross Line detection, Intrusion detection
SMART Triggers Vehicle body color recognition, Statistical Analysis: Heat map (Working with management platform) Basic
Entry/Exit scenes Detection: Motion detection, Audio detection, Tampering alarm
Input: impedance 35kΩ; amplitude 2V [p-p]
Audio Input/Output 1 × audio input, 1 × audio output
Output: impedance 600Ω; amplitude 2V [p-p]
Local Storage ANR with a Micro SD card, up to 128GB Micro SD, up to 256GB
Protection Level IP67 / IK10 IP67 / IK10
Working Environment: -40 - 140°F(-40 -60°C) Working Environment -22 - 140°F (-30 -60°C),
Humidity: ≤90% RH (non-condensing) Humidity: ≤95% RH
Working Temp.
Storage Environment: -40 - 140°F(-40 -60°C) Storage Environment -22 - 140°F (-30 - 60°C),
Humidity: ≤90% RH (non-condensing) Humidity: ≤95% RH
Power Supply DC12V + 25% - 10%, PoE (IEEE 802.3at POE+) DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max: 20W Max 12W
Dimensions: in. (mm) 15.2 x 4.96 x 5.12" (386 x 126 x 130 mm) 5.9 x 2.2” (149 x 55mm)
Weight: lbs (kg/g) 4.41 lbs (2kg) 1.15 lbs (524g)
Optional Brackets Wall mount included Junction Box: ST-GJB04-G
Optional Controller ST-USB-KB N/A
Price $844.00 $816.00

24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 9
