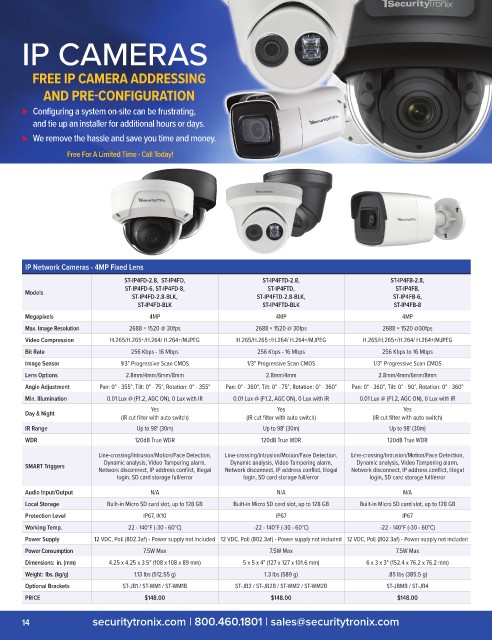

Page 16 - NACE T128 Full catalog_Web
P. 16
Video Surveillance
Section/Product Header
IP CAMERAS
FREE IP CAMERA ADDRESSING
AND PRE-CONFIGURATION
⊲ Configuring a system on-site can be frustrating,
and tie up an installer for additional hours or days.
⊲ We remove the hassle and save you time and money.
Free For A Limited Time - Call Today!
IP Network Cameras - 4MP Fixed Lens
ST-IP4FD-2.8, ST-IP4FD, ST-IP4FTD-2.8, ST-IP4FB-2.8,
ST-IP4FD-6, ST-IP4FD-8, ST-IP4FTD, ST-IP4FB,
Models
ST-IP4FD-2.8-BLK, ST-IP4FTD-2.8-BLK, ST-IP4FB-6,
ST-IP4FD-BLK ST-IP4FTD-BLK ST-IP4FB-8
Megapixels 4MP 4MP 4MP
Max. Image Resolution 2688 × 1520 @ 30fps 2688 × 1520 @ 30fps 2688 × 1520 @30fps
Video Compression H.265/H.265+/H.264/ H.264+/MJPEG H.265/H.265+/H.264/ H.264+/MJPEG H.265/H.265+/H.264/ H.264+/MJPEG
Bit Rate 256 Kbps - 16 Mbps 256 Kbps - 16 Mbps 256 Kbps to 16 Mbps
Image Sensor 1/3" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/3" Progressive Scan CMOS
Lens Options 2.8mm/4mm/6mm/8mm 2.8mm/4mm 2.8mm/4mm/6mm/8mm
Angle Adjustment Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° Pan: 0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360° Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0° - 360°
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Yes Yes Yes
Day & Night
(IR cut filter with auto switch) (IR cut filter with auto switch) (IR cut filter with auto switch)
IR Range Up to 98' (30m) Up to 98' (30m) Up to 98' (30m)
WDR 120dB True WDR 120dB True WDR 120dB True WDR
Line-crossing/Intrusion/Motion/Face Detection, Line-crossing/Intrusion/Motion/Face Detection, Line-crossing/Intrusion/Motion/Face Detection,
Dynamic analysis, Video Tampering alarm,
Dynamic analysis, Video Tampering alarm,
Dynamic analysis, Video Tampering alarm,
SMART Triggers Network disconnect, IP address conflict, Illegal Network disconnect, IP address conflict, Illegal Network disconnect, IP address conflict, Illegal
login, SD card storage full/error login, SD card storage full/error login, SD card storage full/error
Audio Input/Output N/A N/A N/A
Local Storage Built-in Micro SD card slot, up to 128 GB Built-in Micro SD card slot, up to 128 GB Built-in Micro SD card slot, up to 128 GB
Protection Level IP67, IK10 IP67 IP67
Working Temp. 22 - 140°F (-30 - 60°C) -22 - 140°F (-30 - 60°C) -22 - 140°F (-30 - 60°C)
Power Supply 12 VDC, PoE (802.3af) - Power supply not included 12 VDC, PoE (802.3af) - Power supply not included 12 VDC, PoE (802.3af) - Power supply not included
Power Consumption 7.5W Max 7.5W Max 7.5W Max
Dimensions: in. (mm) 4.25 x 4.25 x 3.5" (108 x 108 x 89 mm) 5 x 5 x 4" (127 x 127 x 101.6 mm) 6 x 3 x 3" (152.4 x 76.2 x 76.2 mm)
Weight: lbs. (kg/g) 1.13 lbs (512.55 g) 1.3 lbs (589 g) .85 lbs (385.5 g)
Optional Brackets ST-JB1 / ST-WM1 / ST-WM1B ST-JB2 / ST-JB2B / ST-WM2 / ST-WM2B ST-JBMB / ST-JB4
PRICE $148.00 $148.00 $148.00
