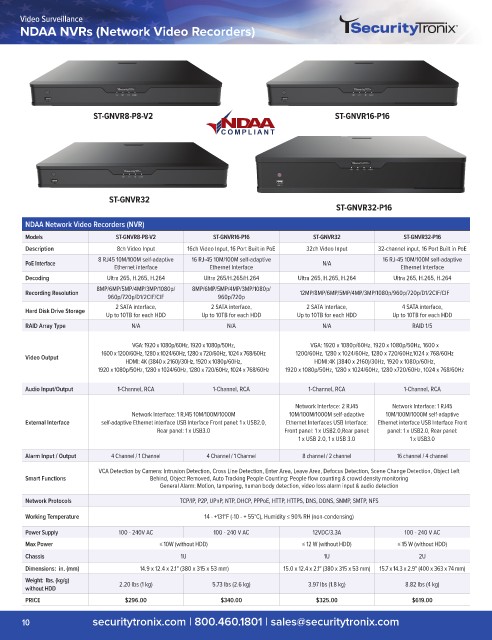

Page 12 - NACE T128 Full catalog_Web

Video Surveillance
NDAA NVRs (Network Video Recorders)

ST-GNVR8-P8-V2 ST-GNVR16-P16

ST-GNVR32
ST-GNVR32-P16
NDAA Network Video Recorders (NVR)

Models ST-GNVR8-P8-V2 ST-GNVR16-P16 ST-GNVR32 ST-GNVR32-P16
Description 8ch Video Input 16ch Video Input, 16 Port Built in PoE 32ch Video Input 32-channel input, 16 Port Built in PoE
8 RJ45 10M/100M self-adaptive 16 RJ-45 10M/100M self-adaptive 16 RJ-45 10M/100M self-adaptive
PoE Interface Ethernet interface Ethernet Interface N/A Ethernet Interface
Decoding Ultra 265, H.265, H.264 Ultra 265/H.265/H.264 Ultra 265, H.265, H.264 Ultra 265, H.265, H.264
8MP/6MP/5MP/4MP/3MP/1080p/ 8MP/6MP/5MP/4MP/3MP/1080p/
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
960p/720p/D1/2CIF/CIF 960p/720p
2 SATA interface, 2 SATA interface, 2 SATA interface, 4 SATA interface,
Hard Disk Drive Storage
Up to 10TB for each HDD Up to 10TB for each HDD Up to 10TB for each HDD Up to 10TB for each HDD
RAID Array Type N/A N/A N/A RAID 1/5

VGA: 1920 x 1080p/60Hz, 1920 x 1080p/50Hz, VGA: 1920 x 1080p/60Hz, 1920 x 1080p/50Hz, 1600 x
1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
Video Output
HDMI: 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, HDMI:4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz,
1920 x 1080p/50Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz 1920 x 1080p/50Hz, 1280 x 1024/60Hz, 1280 x720/60Hz, 1024 x 768/60Hz

Audio Input/Output 1-Channel, RCA 1-Channel, RCA 1-Channel, RCA 1-Channel, RCA
Network Interface: 2 RJ45 Network Interface: 1 RJ45
Network Interface: 1 RJ45 10M/100M/1000M 10M/100M/1000M self-adaptive 10M/100M/1000M self-adaptive
External Interface self-adaptive Ethernet interface USB Interface Front panel: 1 x USB2.0, Ethernet Interfaces USB Interface: Ethernet interface USB Interface Front
Rear panel: 1 x USB3.0 Front panel: 1 x USB2.0,Rear panel: panel: 1 x USB2.0, Rear panel:
1 x USB 2.0, 1 x USB 3.0 1 x USB3.0

Alarm Input / Output 4 Channel / 1 Channel 4 Channel / 1 Channel 8 channel / 2 channel 16 channel / 4 channel
VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left
Smart Functions Behind, Object Removed, Auto Tracking People Counting: People flow counting & crowd density monitoring
General Alarm: Motion, tampering, human body detection, video loss alarm input & audio detection
Network Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Working Temperature 14 - +131°F (-10 - + 55°C), Humidity ≤ 90% RH (non-condensing)

Power Supply 100 - 240V AC 100 - 240 V AC 12VDC/3.3A 100 - 240 V AC
Max Power ≤ 10W (without HDD) ≤ 12 W (without HDD) ≤ 15 W (without HDD)
Chassis 1U 1U 2U
Dimensions: in. (mm) 14.9 x 12.4 x 2.1" (380 x 315 x 53 mm) 15.0 x 12.4 x 2.1" (380 x 315 x 53 mm) 15.7 x 14.3 x 2.9" (400 x 363 x 74 mm)
Weight: lbs. (kg/g) 2.20 lbs (1 kg) 5.73 lbs (2.6 kg) 3.97 lbs (1.8 kg) 8.82 lbs (4 kg)
without HDD
PRICE $296.00 $340.00 $325.00 $619.00
