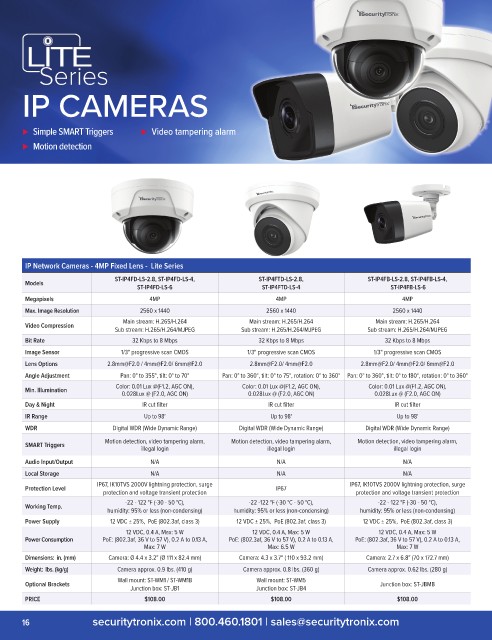

IP CAMERAS
⊲ Simple SMART Triggers ⊲ Video tampering alarm
⊲ Motion detection
IP Network Cameras - 4MP Fixed Lens - Lite Series
ST-IP4FD-LS-2.8, ST-IP4FD-LS-4, ST-IP4FTD-LS-2.8, ST-IP4FB-LS-2.8, ST-IP4FB-LS-4,
Models
ST-IP4FD-LS-6 ST-IP4FTD-LS-4 ST-IP4FB-LS-6
Megapixels 4MP 4MP 4MP
Max. Image Resolution 2560 x 1440 2560 x 1440 2560 x 1440
Main stream: H.265/H.264 Main stream: H.265/H.264 Main stream: H.265/H.264
Video Compression
Sub stream: H.265/H.264/MJPEG Sub stream: H.265/H.264/MJPEG Sub stream: H.265/H.264/MJPEG
Bit Rate 32 Kbps to 8 Mbps 32 Kbps to 8 Mbps 32 Kbps to 8 Mbps
Image Sensor 1/3" progressive scan CMOS 1/3" progressive scan CMOS 1/3" progressive scan CMOS
Lens Options 2.8mm@F2.0 / 4mm@F2.0/ 6mm@F2.0 2.8mm@F2.0/ 4mm@F2.0 2.8mm@F2.0/ 4mm@F2.0/ 6mm@F2.0
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70° Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), Color: 0.01 Lux @(F1.2, AGC ON), Color: 0.01 Lux @(F1.2, AGC ON),
0.028Lux @ (F2.0, AGC ON)
0.028Lux @ (F2.0, AGC ON)
0.028Lux @ (F2.0, AGC ON)
Day & Night IR cut filter IR cut filter IR cut filter
IR Range Up to 98' Up to 98' Up to 98'
WDR Digital WDR (Wide Dynamic Range) Digital WDR (Wide Dynamic Range) Digital WDR (Wide Dynamic Range)
SMART Triggers Motion detection, video tampering alarm, Motion detection, video tampering alarm, Motion detection, video tampering alarm,
illegal login
illegal login
illegal login
Audio Input/Output N/A N/A N/A
Local Storage N/A N/A N/A
IP67, IK10TVS 2000V lightning protection, surge IP67, IK10TVS 2000V lightning protection, surge
Protection Level IP67
protection and voltage transient protection protection and voltage transient protection
-22 - 122 °F (-30 - 50 °C), -22 -122 °F (-30 °C - 50 °C), -22 - 122 °F (-30 - 50 °C),
Working Temp.
humidity: 95% or less (non-condensing) humidity: 95% or less (non-condensing) humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3) 12 VDC ± 25%, PoE (802.3af, class 3) 12 VDC ± 25%, PoE (802.3af, class 3)
12 VDC, 0.4 A, Max: 5 W 12 VDC, 0.4 A, Max: 5 W 12 VDC, 0.4 A, Max: 5 W
Power Consumption PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A,
Max: 7 W Max: 6.5 W Max: 7 W
Dimensions: in. (mm) Camera: Ø 4.4 x 3.2" (Ø 111 x 82.4 mm) Camera: 4.3 x 3.7" ( 110 x 93.2 mm) Camera: 2.7 x 6.8" (70 x 172.7 mm)
Weight: lbs. (kg/g) Camera approx. 0.9 lbs. (410 g) Camera approx. 0.8 lbs. (360 g) Camera approx. 0.62 lbs. (280 g)
Wall mount: ST-WM1 / ST-WM1B Wall mount: ST-WM5
Optional Brackets Junction box: ST-JBMB
Junction box: ST-JB1 Junction box: ST-JB4
PRICE $108.00 $108.00 $108.00
