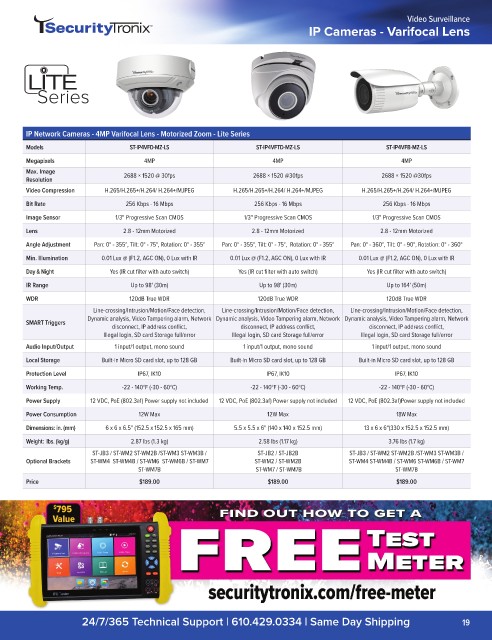

Page 21 - NACE T128 Full catalog_Web
P. 21
Video Surveillance
IP Cameras - Varifocal Lens
Series
IP Network Cameras - 4MP Varifocal Lens - Motorized Zoom - Lite Series
Models ST-IP4VFD-MZ-LS ST-IP4VFTD-MZ-LS ST-IP4VFB-MZ-LS
Megapixels 4MP 4MP 4MP
Max. Image 2688 × 1520 @ 30fps 2688 × 1520 @30fps 2688 × 1520 @30fps
Resolution
Video Compression H.265/H.265+/H.264/ H.264+/MJPEG H.265/H.265+/H.264/ H.264+/MJPEG H.265/H.265+/H.264/ H.264+/MJPEG
Bit Rate 256 Kbps - 16 Mbps 256 Kbps - 16 Mbps 256 Kbps - 16 Mbps
Image Sensor 1/3" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/3" Progressive Scan CMOS
Lens 2.8 - 12mm Motorized 2.8 - 12mm Motorized 2.8 - 12mm Motorized
Angle Adjustment Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0° - 360°
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch)
IR Range Up to 98' (30m) Up to 98' (30m) Up to 164' (50m)
WDR 120dB True WDR 120dB True WDR 120dB True WDR
Line-crossing/Intrusion/Motion/Face detection, Line-crossing/Intrusion/Motion/Face detection, Line-crossing/Intrusion/Motion/Face detection,
Dynamic analysis, Video Tampering alarm, Network Dynamic analysis, Video Tampering alarm, Network Dynamic analysis, Video Tampering alarm, Network
SMART Triggers
disconnect, IP address conflict, disconnect, IP address conflict, disconnect, IP address conflict,
Illegal login, SD card Storage full/error Illegal login, SD card Storage full/error Illegal login, SD card Storage full/error
Audio Input/Output 1 input/1 output, mono sound 1 input/1 output, mono sound 1 input/1 output, mono sound
Local Storage Built-in Micro SD card slot, up to 128 GB Built-in Micro SD card slot, up to 128 GB Built-in Micro SD card slot, up to 128 GB
Protection Level IP67, IK10 IP67, IK10 IP67, IK10
Working Temp. -22 - 140°F (-30 - 60°C) -22 - 140°F (-30 - 60°C) -22 - 140°F (-30 - 60°C)
Power Supply 12 VDC, PoE (802.3af) Power supply not included 12 VDC, PoE (802.3af) Power supply not included 12 VDC, PoE (802.3af)Power supply not included
Power Consumption 12W Max 12W Max 18W Max
Dimensions: in. (mm) 6 x 6 x 6.5" (152.5 x 152.5 x 165 mm) 5.5 x 5.5 x 6" (140 x 140 x 152.5 mm) 13 x 6 x 6"(330 x 152.5 x 152.5 mm)
Weight: lbs. (kg/g) 2.87 lbs (1.3 kg) 2.58 lbs (1.17 kg) 3.76 lbs (1.7 kg)
ST-JB3 / ST-WM2 ST-WM2B /ST-WM3 ST-WM3B / ST-JB2 / ST-JB2B ST-JB3 / ST-WM2 ST-WM2B /ST-WM3 ST-WM3B /
Optional Brackets ST-WM4 ST-WM4B / ST-WM6 ST-WM6B / ST-WM7 ST-WM2 / ST-WM2B ST-WM4 ST-WM4B / ST-WM6 ST-WM6B / ST-WM7
ST-WM7B ST-WM7 / ST-WM7B ST-WM7B
Price $189.00 $189.00 $189.00
24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 19
