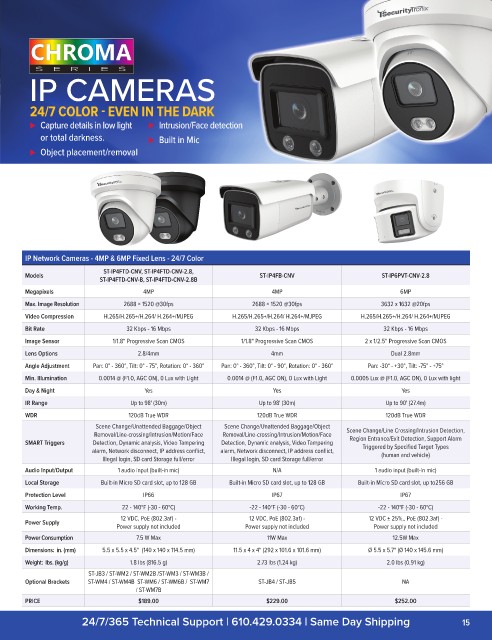

Page 17 - NACE T128 Full catalog_Web
P. 17
IP CAMERAS
24/7 COLOR - EVEN IN THE DARK
⊲ Capture details in low light ⊲ Intrusion/Face detection
or total darkness. ⊲ Built in Mic
⊲ Object placement/removal
IP Network Cameras - 4MP & 6MP Fixed Lens - 24/7 Color
ST-IP4FTD-CNV, ST-IP4FTD-CNV-2.8,
Models ST-IP4FB-CNV ST-IP6PVT-CNV-2.8
ST-IP4FTD-CNV-B, ST-IP4FTD-CNV-2.8B
Megapixels 4MP 4MP 6MP
Max. Image Resolution 2688 × 1520 @30fps 2688 × 1520 @30fps 3632 x 1632 @20fps
Video Compression H.265/H.265+/H.264/ H.264+/MJPEG H.265/H.265+/H.264/ H.264+/MJPEG H.265/H.265+/H.264/ H.264+/MJPEG
Bit Rate 32 Kbps - 16 Mbps 32 Kbps - 16 Mbps 32 Kbps - 16 Mbps
Image Sensor 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 2 x 1/2.5" Progressive Scan CMOS
Lens Options 2.8/4mm 4mm Dual 2.8mm
Angle Adjustment Pan: 0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360° Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0° - 360° Pan: -30° - +30°, Tilt: -75° - +75°
Min. Illumination 0.0014 @ (F1.0, AGC ON), 0 Lux with Light 0.0014 @ (F1.0, AGC ON), 0 Lux with Light 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night Yes Yes Yes
IR Range Up to 98' (30m) Up to 98' (30m) Up to 90' (27.4m)
WDR 120dB True WDR 120dB True WDR 120dB True WDR
Scene Change/Unattended Baggage/Object Scene Change/Unattended Baggage/Object
Removal/Line-crossing/Intrusion/Motion/Face Removal/Line-crossing/Intrusion/Motion/Face Scene Change/Line Crossing/Intrusion Detection,
SMART Triggers Detection, Dynamic analysis, Video Tampering Detection, Dynamic analysis, Video Tampering Region Entrance/Exit Detection, Support Alarm
Triggered by Specified Target Types
alarm, Network disconnect, IP address conflict, alarm, Network disconnect, IP address conflict, (human and vehicle)
Illegal login, SD card Storage full/error Illegal login, SD card Storage full/error
Audio Input/Output 1 audio input (built-in mic) N/A 1 audio input (built-in mic)
Local Storage Built-in Micro SD card slot, up to 128 GB Built-in Micro SD card slot, up to 128 GB Built-in Micro SD card slot, up to256 GB
Protection Level IP66 IP67 IP67
Working Temp. 22 - 140°F (-30 - 60°C) -22 - 140°F (-30 - 60°C) -22 - 140°F (-30 - 60°C)
12 VDC, PoE (802.3af) - 12 VDC, PoE (802.3af) - 12 VDC ± 25%,, PoE (802.3af) -
Power Supply
Power supply not included Power supply not included Power supply not included
Power Consumption 7.5 W Max 11W Max 12.5W Max
Dimensions: in. (mm) 5.5 x 5.5 x 4.5" (140 x 140 x 114.5 mm) 11.5 x 4 x 4" (292 x 101.6 x 101.6 mm) Ø 5.5 x 5.7" (Ø 140 x 145.6 mm)
Weight: lbs. (kg/g) 1.8 lbs (816.5 g) 2.73 lbs (1.24 kg) 2.0 lbs (0.91 kg)
ST-JB3 / ST-WM2 / ST-WM2B /ST-WM3 / ST-WM3B /
Optional Brackets ST-WM4 / ST-WM4B ST-WM6 / ST-WM6B / ST-WM7 ST-JB4 / ST-JB5 NA
/ ST-WM7B
PRICE $189.00 $229.00 $252.00
24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 15
