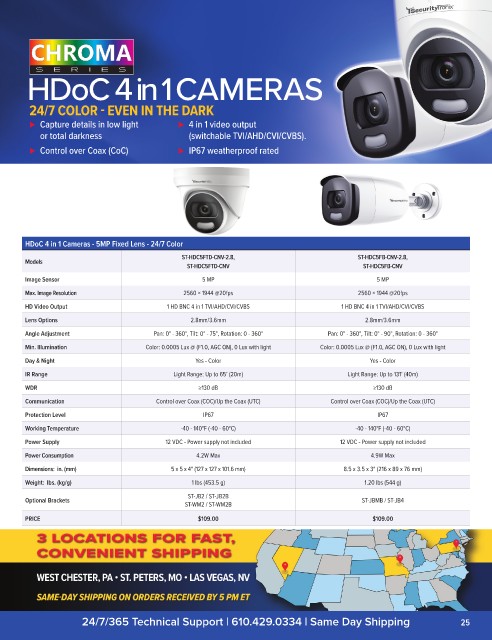

HDoC 4 in 1 CAMERAS

24/7 COLOR - EVEN IN THE DARK

⊲ Capture details in low light ⊲ 4 in 1 video output
or total darkness (switchable TVI/AHD/CVI/CVBS).
⊲ Control over Coax (CoC) ⊲ IP67 weatherproof rated

HDoC 4 in 1 Cameras - 5MP Fixed Lens - 24/7 Color

ST-HDC5FTD-CNV-2.8, ST-HDC5FB-CNV-2.8,
Models
ST-HDC5FTD-CNV ST-HDC5FB-CNV
Image Sensor 5 MP 5 MP
Max. Image Resolution 2560 × 1944 @20fps 2560 × 1944 @20fps
HD Video Output 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS
Lens Options 2.8mm/3.6mm 2.8mm/3.6mm
Angle Adjustment Pan: 0° - 360°, Tilt: 0° - 75°, Rotation: 0 - 360° Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0 - 360°
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night Yes - Color Yes - Color
IR Range Light Range: Up to 65’ (20m) Light Range: Up to 131’ (40m)
WDR ≥130 dB ≥130 dB

Communication Control over Coax (COC)/Up the Coax (UTC) Control over Coax (COC)/Up the Coax (UTC)
Protection Level IP67 IP67
Working Temperature -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C)
Power Supply 12 VDC - Power supply not included 12 VDC - Power supply not included
Power Consumption 4.2W Max 4.9W Max
Dimensions: in. (mm) 5 x 5 x 4" (127 x 127 x 101.6 mm) 8.5 x 3.5 x 3" (216 x 89 x 76 mm)
Weight: lbs. (kg/g) 1 lbs (453.5 g) 1.20 lbs (544 g)
ST-JB2 / ST-JB2B
Optional Brackets ST-JBMB / ST-JB4
ST-WM2 / ST-WM2B
PRICE $109.00 $109.00

24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 25
