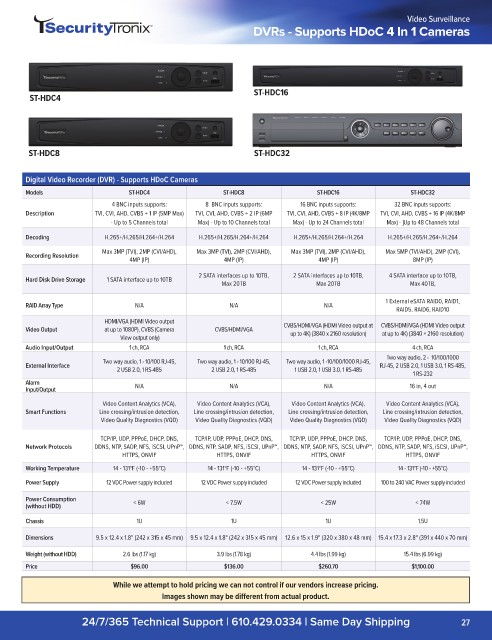

Video Surveillance
DVRs - Supports HDoC 4 In 1 Cameras
ST-HDC16
ST-HDC4
ST-HDC8 ST-HDC32
Digital Video Recorder (DVR) - Supports HDoC Cameras
Models ST-HDC4 ST-HDC8 ST-HDC16 ST-HDC32
4 BNC inputs supports: 8 BNC inputs supports: 16 BNC inputs supports: 32 BNC inputs supports:
Description TVI, CVI, AHD, CVBS + 1 IP (5MP Max) TVI, CVI, AHD, CVBS + 2 IP (6MP TVI, CVI, AHD, CVBS + 8 IP (4K/8MP TVI, CVI, AHD, CVBS + 16 IP (4K/8MP
- Up to 5 Channels total Max) - Up to 10 Channels total Max) - Up to 24 Channels total Max) - ]Up to 48 Channels total
Decoding H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264
Max 3MP (TVI), 2MP (CVI/AHD), Max 3MP (TVI), 2MP (CVI/AHD), Max 3MP (TVI), 2MP (CVI/AHD), Max 5MP (TVI/AHD), 2MP (CVI),
Recording Resolution
4MP (IP) 4MP (IP) 4MP (IP) 8MP (IP)
2 SATA interfaces up to 10TB, 2 SATA interfaces up to 10TB, 4 SATA interface up to 10TB,
Hard Disk Drive Storage 1 SATA interface up to 10TB
Max 20TB Max 20TB Max 40TB,
1 External eSATA RAID0, RAID1,
RAID Array Type N/A N/A N/A
RAID5, RAID6, RAID10
HDMI/VGA (HDMI Video output
Video Output at up to 1080P), CVBS (Camera CVBS/HDMI/VGA CVBS/HDMI/VGA (HDMI Video output at CVBS/HDMI/VGA (HDMI Video output
at up to 4K) (3840 × 2160 resolution)
up to 4K) (3840 x 2160 resolution)
View output only)
Audio Input/Output 1 ch, RCA 1 ch, RCA 1 ch, RCA 4 ch, RCA
Two way audio, 2 - 10/100/1000
Two way audio, 1 - 10/100 RJ-45, Two way audio, 1 - 10/100 RJ-45, Two way audio, 1 -10/100/1000 RJ-45,
External Interface RJ-45, 2 USB 2.0, 1 USB 3.0, 1 RS-485,
2 USB 2.0, 1 RS-485 2 USB 2.0, 1 RS-485 1 USB 2.0, 1 USB 3.0, 1 RS-485
1 RS-232
Alarm N/A N/A N/A 16 in, 4 out
Input/Output
Video Content Analytics (VCA), Video Content Analytics (VCA), Video Content Analytics (VCA), Video Content Analytics (VCA),
Smart Functions Line crossing/intrusion detection, Line crossing/intrusion detection, Line crossing/intrusion detection, Line crossing/intrusion detection,
Video Quality Diagnostics (VQD) Video Quality Diagnostics (VQD) Video Quality Diagnostics (VQD) Video Quality Diagnostics (VQD)
TCP/IP, UDP, PPPoE, DHCP, DNS, TCP/IP, UDP, PPPoE, DHCP, DNS, TCP/IP, UDP, PPPoE, DHCP, DNS, TCP/IP, UDP, PPPoE, DHCP, DNS,
Network Protocols DDNS, NTP, SADP, NFS, iSCSI, UPnP™, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF HTTPS, ONVIF HTTPS, ONVIF HTTPS, ONVIF
Working Temperature 14 - 131°F (-10 - +55°C) 14 - 131°F (-10 - +55°C) 14 - 131°F (-10 - +55°C) 14 - 131°F (-10 - +55°C)
Power Supply 12 VDC Power supply included 12 VDC Power supply included 12 VDC Power supply included 100 to 240 VAC Power supply included
Power Consumption < 6W < 7.5W < 25W < 74W
(without HDD)
Chassis 1U 1U 1U 1.5U
Dimensions 9.5 x 12.4 x 1.8" (242 x 315 x 45 mm) 9.5 x 12.4 x 1.8" (242 x 315 x 45 mm) 12.6 x 15 x 1.9" (320 x 380 x 48 mm) 15.4 x 17.3 x 2.8" (391 x 440 x 70 mm)
Weight (without HDD) 2.6 lbs (1.17 kg) 3.9 lbs (1.78 kg) 4.4 lbs (1.99 kg) 15.4 lbs (6.99 kg)
Price $96.00 $136.00 $260.70 $1,100.00
While we attempt to hold pricing we can not control if our vendors increase pricing.
Images shown may be different from actual product.
