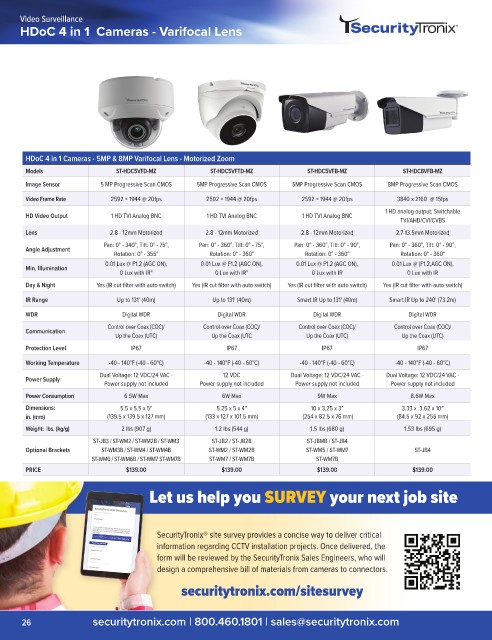

Page 28 - NACE T128 Full catalog_Web

Video Surveillance
HDoC 4 in 1 Cameras - Varifocal Lens

HDoC 4 in 1 Cameras - 5MP & 8MP Varifocal Lens - Motorized Zoom
Models ST-HDC5VFD-MZ ST-HDC5VFTD-MZ ST-HDC5VFB-MZ ST-HDC8VFB-MZ
Image Sensor 5 MP Progressive Scan CMOS 5MP Progressive Scan CMOS 5MP Progressive Scan CMOS 8MP Progressive Scan CMOS

Video Frame Rate 2592 × 1944 @ 20fps 2592 × 1944 @ 20fps 2592 × 1944 @ 20fps 3840 x 2160 @ 15fps
1 HD analog output; Switchable
HD Video Output 1 HD TVI Analog BNC 1 HD TVI Analog BNC 1 HD TVI Analog BNC
TVI/AHD/CVI/CVBS
Lens 2.8 - 12mm Motorized 2.8 - 12mm Motorized 2.8 - 12mm Motorized 2.7-13.5mm Motorized
Pan: 0° - 340°, Tilt: 0° - 75°, Pan: 0° - 360°, Tilt: 0° - 75°, Pan: 0° - 360°, Tilt: 0° - 90°, Pan: 0° - 360°, Tilt: 0° - 90°,
Angle Adjustment
Rotation: 0° - 355° Rotation: 0° - 360° Rotation: 0° - 360° Rotation: 0° - 360°
0.01 Lux @ F1.2 (AGC ON), 0.01 Lux @ F1.2 (AGC ON), 0.01 Lux @ F1.2 (AGC ON), 0.01 Lux @ (F1.2,AGC ON),
Min. Illumination
0 Lux with IR" 0 Lux with IR" 0 Lux with IR 0 Lux with IR
Day & Night Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch)
IR Range Up to 131' (40m) Up to 131' (40m) Smart IR Up to 131' (40m) Smart IR Up to 240' (73.2m)
WDR Digital WDR Digital WDR Digital WDR Digital WDR
Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/
Communication
Up the Coax (UTC) Up the Coax (UTC Up the Coax (UTC) Up the Coax (UTC)
Protection Level IP67 IP67 IP67 IP67

Working Temperature -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C)
Dual Voltage: 12 VDC/24 VAC - 12 VDC Dual Voltage: 12 VDC/24 VAC - Dual Voltage: 12 VDC/24 VAC -
Power Supply
Power supply not included Power supply not included Power supply not included Power supply not included
Power Consumption 6.5W Max 6W Max 9W Max 8.6W Max
Dimensions: 5.5 x 5.5 x 5" 5.25 x 5 x 4" 10 x 3.25 x 3" 3.33 x 3.62 x 10″
in. (mm) (139.5 x 139.5 x 127 mm) (133 x 127 x 101.5 mm) (254 x 82.5 x 76 mm) (84.5 x 92 x 255 mm)
Weight: lbs. (kg/g) 2 lbs (907 g) 1.2 lbs (544 g) 1.5 lbs (680 g) 1.53 lbs (695 g)
ST-JB3 / ST-WM2 / ST-WM2B / ST-WM3 ST-JB2 / ST-JB2B ST-JBMB / ST-JB4
Optional Brackets ST-WM3B / ST-WM4 / ST-WM4B ST-WM2 / ST-WM2B ST-WM5 / ST-WM7 ST-JB4
ST-WM6 / ST-WM6B / ST-WM7 ST-WM7B ST-WM7 / ST-WM7B ST-WM7B
PRICE $139.00 $139.00 $139.00 $139.00

Let us help you SURVEY your next job site

SecurityTronix® site survey provides a concise way to deliver critical
information regarding CCTV installation projects. Once delivered, the
form will be reviewed by the SecurityTronix Sales Engineers, who will
design a comprehensive bill of materials from cameras to connectors.

securitytronix.com/sitesurvey

26 securitytronix.com | 800.460.1801 | sales@securitytronix.com
