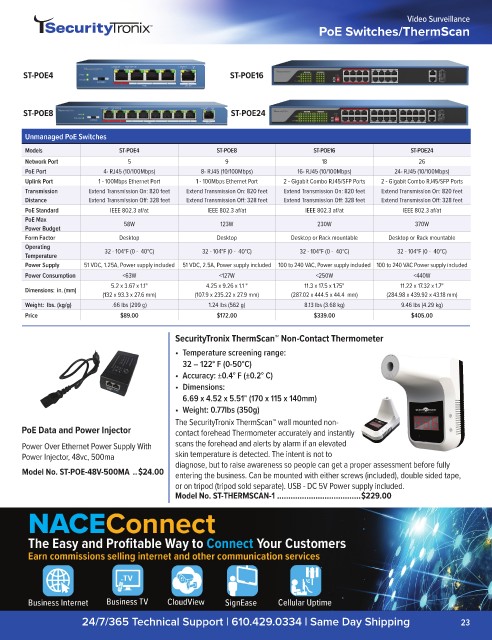

Page 25 - NACE T128 Full catalog_Web
P. 25
Video Surveillance
PoE Switches/ThermScan
ST-POE4 ST-POE16
ST-POE8 ST-POE24
Unmanaged PoE Switches
Models ST-POE4 ST-POE8 ST-POE16 ST-POE24
Network Port 5 9 18 26
PoE Port 4- RJ45 (10/100Mbps) 8- RJ45 (10/100Mbps) 16- RJ45 (10/100Mbps) 24- RJ45 (10/100Mbps)
Uplink Port 1 - 100Mbps Ethernet Port 1 - 100Mbps Ethernet Port 2 - Gigabit Combo RJ45/SFP Ports 2 - Gigabit Combo RJ45/SFP Ports
Transmission Extend Transmission On: 820 feet Extend Transmission On: 820 feet Extend Transmission On: 820 feet Extend Transmission On: 820 feet
Distance Extend Transmission Off: 328 feet Extend Transmission Off: 328 feet Extend Transmission Off: 328 feet Extend Transmission Off: 328 feet
PoE Standard IEEE 802.3 af/at IEEE 802.3 af/at IEEE 802.3 af/at IEEE 802.3 af/at
PoE Max 58W 123W 230W 370W
Power Budget
Form Factor Desktop Desktop Desktop or Rack mountable Desktop or Rack mountable
Operating 32 - 104°F (0 - 40°C) 32 - 104°F (0 - 40°C) 32 - 104°F (0 - 40°C) 32 - 104°F (0 - 40°C)
Temperature
Power Supply 51 VDC, 1.25A, Power supply included 51 VDC, 2.5A, Power supply included 100 to 240 VAC, Power supply included 100 to 240 VAC Power supply included
Power Consumption <63W <127W <250W <440W
5.2 x 3.67 x 1.1" 4.25 x 9.26 x 1.1 " 11.3 x 17.5 x 1.75" 11.22 x 17.32 x 1.7"
Dimensions: in. (mm)
(132 x 93.3 x 27.6 mm) (107.9 x 235.22 x 27.9 mm) (287.02 x 444.5 x 44.4 mm) (284.98 x 439.92 x 43.18 mm)
Weight: lbs. (kg/g) .66 lbs (299 g) 1.24 lbs (562 g) 8.13 lbs (3.68 kg) 9.46 lbs (4.29 kg)
Price $89.00 $172.00 $339.00 $405.00
SecurityTronix ThermScan™ Non-Contact Thermometer
• Temperature screening range:
32 – 122° F (0-50°C)
• Accuracy: ±0.4° F (±0.2° C)
• Dimensions:
6.69 x 4.52 x 5.51" (170 x 115 x 140mm)
• Weight: 0.77lbs (350g)
The SecurityTronix ThermScan™ wall mounted non-
PoE Data and Power Injector contact forehead Thermometer accurately and instantly
Power Over Ethernet Power Supply With scans the forehead and alerts by alarm if an elevated
Power Injector, 48vc, 500ma skin temperature is detected. The intent is not to
diagnose, but to raise awareness so people can get a proper assessment before fully
Model No. ST-POE-48V-500MA ..$24.00 entering the business. Can be mounted with either screws (included), double sided tape,
or on tripod (tripod sold separate). USB - DC 5V Power supply included.
Model No. ST-THERMSCAN-1 .....................................$229.00
24/7/365 Technical Support | 610.429.0334 | Same Day Shipping 23
