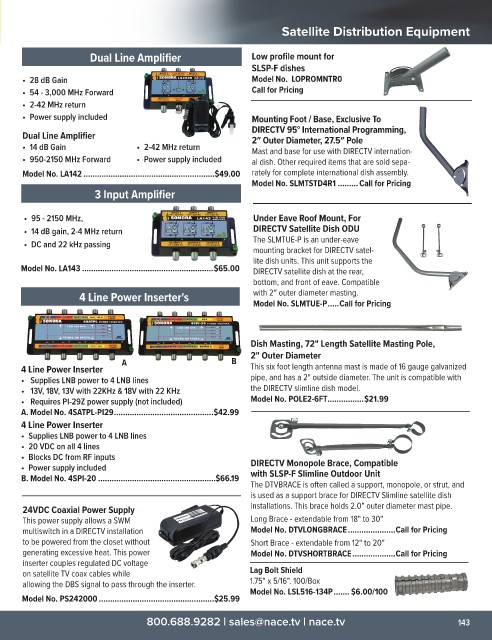

P. 145
Satellite Distribution Equipment
Dual Line Amplifier Low profile mount for
SLSP-F dishes
• 28 dB Gain Model No. LOPROMNTR0
• 54 - 3,000 MHz Forward Call for Pricing
• 2-42 MHz return
• Power supply included Mounting Foot / Base, Exclusive To
Dual Line Amplifier DIRECTV 95° International Programming,
2″ Outer Diameter, 27.5″ Pole
• 14 dB Gain • 2-42 MHz return Mast and base for use with DIRECTV internation-
• 950-2150 MHz Forward • Power supply included al dish. Other required items that are sold sepa-
Model No. LA142 ..........................................................$49.00 rately for complete international dish assembly.
Model No. SLMTSTD4R1 .........Call for Pricing
3 Input Amplifier
• 95 - 2150 MHz, Under Eave Roof Mount, For
• 14 dB gain, 2-4 MHz return DIRECTV Satellite Dish ODU
• DC and 22 kHz passing The SLMTUE-P is an under-eave
mounting bracket for DIRECTV satel-
lite dish units. This unit supports the
Model No. LA143 ..........................................................$65.00 DIRECTV satellite dish at the rear,
bottom, and front of eave. Compatible
4 Line Power Inserter's with 2″ outer diameter masting.
Model No. SLMTUE-P .....Call for Pricing
Dish Masting, 72" Length Satellite Masting Pole,
2" Outer Diameter
A B
4 Line Power Inserter This six foot length antenna mast is made of 16 gauge galvanized
• Supplies LNB power to 4 LNB lines pipe, and has a 2" outside diameter. The unit is compatible with
• 13V, 18V, 13V with 22KHz & 18V with 22 KHz the DIRECTV slimline dish model.
• Requires PI-29Z power supply (not included) Model No. POLE2-6FT ................$21.99
A. Model No. 4SATPL-PI29 ............................................$42.99
4 Line Power Inserter
• Supplies LNB power to 4 LNB lines
• 20 VDC on all 4 lines
• Blocks DC from RF inputs DIRECTV Monopole Brace, Compatible
• Power supply included with SLSP-F Slimline Outdoor Unit
B. Model No. 4SPI-20 ....................................................$66.19
The DTVBRACE is often called a support, monopole, or strut, and
is used as a support brace for DIRECTV Slimline satellite dish
24VDC Coaxial Power Supply installations. This brace holds 2.0" outer diameter mast pipe.
This power supply allows a SWM Long Brace - extendable from 18" to 30"
multiswitch in a DIRECTV installation Model No. DTVLONGBRACE .....................Call for Pricing
to be powered from the closet without Short Brace - extendable from 12" to 20"
generating excessive heat. This power Model No. DTVSHORTBRACE ...................Call for Pricing
inserter couples regulated DC voltage
on satellite TV coax cables while Lag Bolt Shield
allowing the DBS signal to pass through the inserter. 1.75" x 5/16". 100/Box
Model No. PS242000 ...................................................$25.99 Model No. LSL516-134P ....... $6.00/100
