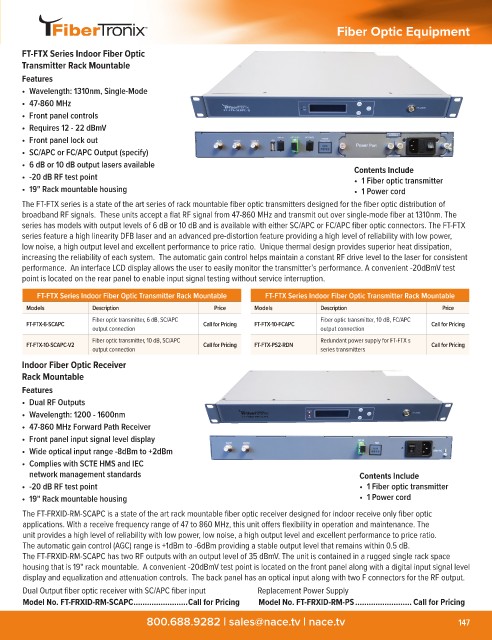

Fiber Optic Equipment
FT-FTX Series Indoor Fiber Optic
Transmitter Rack Mountable
Features
• Wavelength: 1310nm, Single-Mode
• 47-860 MHz
• Front panel controls
• Requires 12 - 22 dBmV
• Front panel lock out
• SC/APC or FC/APC Output (specify)
• 6 dB or 10 dB output lasers available Contents Include
• -20 dB RF test point • 1 Fiber optic transmitter
• 19" Rack mountable housing • 1 Power cord
The FT-FTX series is a state of the art series of rack mountable fiber optic transmitters designed for the fiber optic distribution of
broadband RF signals. These units accept a flat RF signal from 47-860 MHz and transmit out over single-mode fiber at 1310nm. The
series has models with output levels of 6 dB or 10 dB and is available with either SC/APC or FC/APC fiber optic connectors. The FT-FTX
series feature a high linearity DFB laser and an advanced pre-distortion feature providing a high level of reliability with low power,
low noise, a high output level and excellent performance to price ratio. Unique thermal design provides superior heat dissipation,
increasing the reliability of each system. The automatic gain control helps maintain a constant RF drive level to the laser for consistent
performance. An interface LCD display allows the user to easily monitor the transmitter’s performance. A convenient -20dBmV test
point is located on the rear panel to enable input signal testing without service interruption.
FT-FTX Series Indoor Fiber Optic Transmitter Rack Mountable FT-FTX Series Indoor Fiber Optic Transmitter Rack Mountable
Models Description Price Models Description Price
Fiber optic transmitter, 6 dB, SC/APC Fiber optic transmitter, 10 dB, FC/APC
FT-FTX-6-SCAPC Call for Pricing FT-FTX-10-FCAPC Call for Pricing
output connection output connection
Fiber optic transmitter, 10 dB, SC/APC Redundant power supply for FT-FTX s
FT-FTX-10-SCAPC-V2 Call for Pricing FT-FTX-PS2-RDN Call for Pricing
output connection series transmitters
Indoor Fiber Optic Receiver
Rack Mountable
Features
• Dual RF Outputs
• Wavelength: 1200 - 1600nm
• 47-860 MHz Forward Path Receiver
• Front panel input signal level display
• Wide optical input range -8dBm to +2dBm
• Complies with SCTE HMS and IEC
network management standards Contents Include
• -20 dB RF test point • 1 Fiber optic transmitter
• 19" Rack mountable housing • 1 Power cord
The FT-FRXID-RM-SCAPC is a state of the art rack mountable fiber optic receiver designed for indoor receive only fiber optic
applications. With a receive frequency range of 47 to 860 MHz, this unit offers flexibility in operation and maintenance. The
unit provides a high level of reliability with low power, low noise, a high output level and excellent performance to price ratio.
The automatic gain control (AGC) range is +1dBm to -6dBm providing a stable output level that remains within 0.5 dB.
The FT-FRXID-RM-SCAPC has two RF outputs with an output level of 35 dBmV. The unit is contained in a rugged single rack space
housing that is 19" rack mountable. A convenient -20dBmV test point is located on the front panel along with a digital input signal level
display and equalization and attenuation controls. The back panel has an optical input along with two F connectors for the RF output.
Dual Output fiber optic receiver with SC/APC fiber input Replacement Power Supply
Model No. FT-FRXID-RM-SCAPC ........................Call for Pricing Model No. FT-FRXID-RM-PS ......................... Call for Pricing
