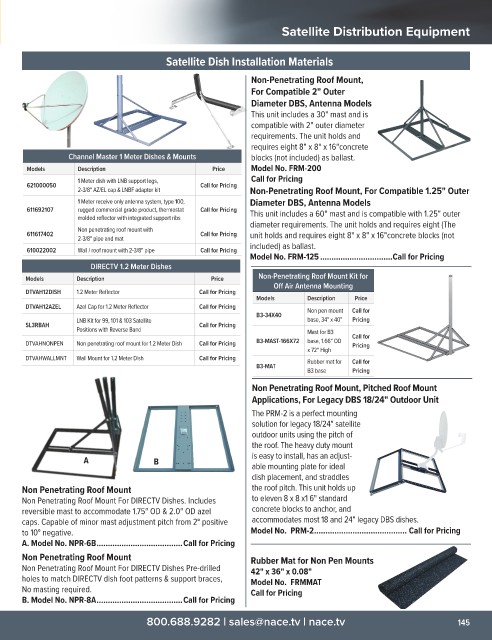

Page 147 - NACE T128 Full catalog_Web

Satellite Distribution Equipment

Satellite Dish Installation Materials

Non-Penetrating Roof Mount,
For Compatible 2" Outer
Diameter DBS, Antenna Models
This unit includes a 30" mast and is
compatible with 2" outer diameter
requirements. The unit holds and
requires eight 8" x 8" x 16"concrete
Channel Master 1 Meter Dishes & Mounts blocks (not included) as ballast.
Models Description Price Model No. FRM-200
1 Meter dish with LNB support legs, Call for Pricing
621000050 Call for Pricing
2-3/8" AZ/EL cap & LNBF adapter kit Non-Penetrating Roof Mount, For Compatible 1.25" Outer
1 Meter receive only antenna system, type 100, Diameter DBS, Antenna Models
611692107 rugged commercial grade product, thermostat Call for Pricing This unit includes a 60" mast and is compatible with 1.25" outer
molded reflector with integrated support ribs diameter requirements. The unit holds and requires eight (The
Non penetrating roof mount with
611617402 Call for Pricing unit holds and requires eight 8" x 8" x 16"concrete blocks (not
2-3/8" pipe and mat
610022002 Wall / roof mount with 2-3/8" pipe Call for Pricing included) as ballast.
Model No. FRM-125 ................................Call for Pricing
DIRECTV 1.2 Meter Dishes
Models Description Price Non-Penetrating Roof Mount Kit for
Off Air Antenna Mounting
DTVAH12DISH 1.2 Meter Reflector Call for Pricing
Models Description Price
DTVAH12AZEL Azel Cap for 1.2 Meter Reflector Call for Pricing Non pen mount Call for
B3-34X40
LNB Kit for 99, 101 & 103 Satellite base, 34" x 40" Pricing
SL3RBAH Call for Pricing
Positions with Reverse Band Mast for B3
DTVAHNONPEN Non penetrating roof mount for 1.2 Meter Dish Call for Pricing B3-MAST-166X72 base, 1.66" OD Call for
Pricing
x 72" High
DTVAHWALLMNT Wall Mount for 1.2 Meter Dish Call for Pricing Rubber mat for Call for
B3-MAT
B3 base Pricing
Non Penetrating Roof Mount, Pitched Roof Mount
Applications, For Legacy DBS 18/24" Outdoor Unit
The PRM-2 is a perfect mounting
solution for legacy 18/24" satellite
outdoor units using the pitch of
the roof. The heavy duty mount
A B is easy to install, has an adjust-
able mounting plate for ideal
dish placement, and straddles
Non Penetrating Roof Mount the roof pitch. This unit holds up
Non Penetrating Roof Mount For DIRECTV Dishes. Includes to eleven 8 x 8 x1 6" standard
reversible mast to accommodate 1.75" OD & 2.0" OD azel concrete blocks to anchor, and
caps. Capable of minor mast adjustment pitch from 2° positive accommodates most 18 and 24" legacy DBS dishes.
to 10° negative. Model No. PRM-2 ......................................... Call for Pricing
A. Model No. NPR-6B ......................................Call for Pricing
Non Penetrating Roof Mount Rubber Mat for Non Pen Mounts
Non Penetrating Roof Mount For DIRECTV Dishes Pre-drilled 42" x 36" x 0.08"
holes to match DIRECTV dish foot patterns & support braces, Model No. FRMMAT
No masting required. Call for Pricing
B. Model No. NPR-8A ......................................Call for Pricing

800.688.9282 | sales@nace.tv | nace.tv 145
