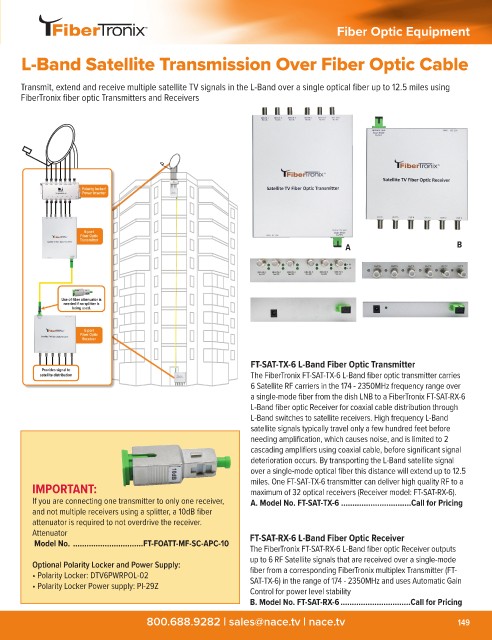

Fiber Optic Equipment
L-Band Satellite Transmission Over Fiber Optic Cable
Transmit, extend and receive multiple satellite TV signals in the L-Band over a single optical fiber up to 12.5 miles using
FiberTronix fiber optic Transmitters and Receivers
A B
FT-SAT-TX-6 L-Band Fiber Optic Transmitter
The FiberTronix FT-SAT-TX-6 L-Band fiber optic transmitter carries
6 Satellite RF carriers in the 174 - 2350MHz frequency range over
a single-mode fiber from the dish LNB to a FiberTronix FT-SAT-RX-6
L-Band fiber optic Receiver for coaxial cable distribution through
L-Band switches to satellite receivers. High frequency L-Band
satellite signals typically travel only a few hundred feet before
needing amplification, which causes noise, and is limited to 2
cascading amplifiers using coaxial cable, before significant signal
deterioration occurs. By transporting the L-Band satellite signal
over a single-mode optical fiber this distance will extend up to 12.5
IMPORTANT: miles. One FT-SAT-TX-6 transmitter can deliver high quality RF to a
maximum of 32 optical receivers (Receiver model: FT-SAT-RX-6).
If you are connecting one transmitter to only one receiver, A. Model No. FT-SAT-TX-6 ...............................Call for Pricing
and not multiple receivers using a splitter, a 10dB fiber
attenuator is required to not overdrive the receiver.
Attenuator FT-SAT-RX-6 L-Band Fiber Optic Receiver
Model No. ...............................FT-FOATT-MF-SC-APC-10
The FiberTronix FT-SAT-RX-6 L-Band fiber optic Receiver outputs
up to 6 RF Satellite signals that are received over a single-mode
Optional Polarity Locker and Power Supply: fiber from a corresponding FiberTronix multiplex Transmitter (FT-
• Polarity Locker: DTV6PWRPOL-02 SAT-TX-6) in the range of 174 - 2350MHz and uses Automatic Gain
• Polarity Locker Power supply: PI-29Z
Control for power level stability
B. Model No. FT-SAT-RX-6 ...............................Call for Pricing
