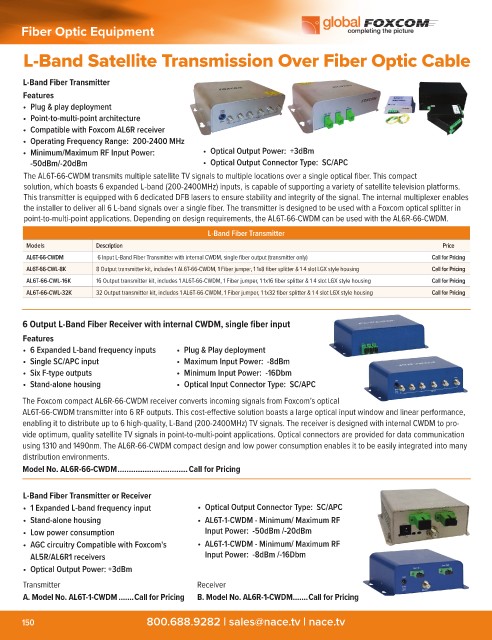

Page 152 - NACE T128 Full catalog_Web

Fiber Optic Equipment

L-Band Satellite Transmission Over Fiber Optic Cable

L-Band Fiber Transmitter
Features
• Plug & play deployment
• Point-to-multi-point architecture
• Compatible with Foxcom AL6R receiver
• Operating Frequency Range: 200-2400 MHz
• Minimum/Maximum RF Input Power: • Optical Output Power: +3dBm
-50dBm/-20dBm • Optical Output Connector Type: SC/APC
The AL6T-66-CWDM transmits multiple satellite TV signals to multiple locations over a single optical fiber. This compact
solution, which boasts 6 expanded L-band (200-2400MHz) inputs, is capable of supporting a variety of satellite television platforms.
This transmitter is equipped with 6 dedicated DFB lasers to ensure stability and integrity of the signal. The internal multiplexer enables
the installer to deliver all 6 L-band signals over a single fiber. The transmitter is designed to be used with a Foxcom optical splitter in
point-to-multi-point applications. Depending on design requirements, the AL6T-66-CWDM can be used with the AL6R-66-CWDM.

L-Band Fiber Transmitter
Models Description Price
AL6T-66-CWDM 6 Input L-Band Fiber Transmitter with internal CWDM, single fiber output (transmitter only) Call for Pricing
AL6T-66-CWL-8K 8 Output transmitter kit, includes 1 AL6T-66-CWDM, 1 Fiber jumper, 1 1x8 fiber splitter & 1 4 slot LGX style housing Call for Pricing
AL6T-66-CWL-16K 16 Output transmitter kit, includes 1 AL6T-66-CWDM, 1 Fiber jumper, 1 1x16 fiber splitter & 1 4 slot LGX style housing Call for Pricing
AL6T-66-CWL-32K 32 Output transmitter kit, includes 1 AL6T-66-CWDM, 1 Fiber jumper, 1 1x32 fiber splitter & 1 4 slot LGX style housing Call for Pricing

6 Output L-Band Fiber Receiver with internal CWDM, single fiber input

Features
• 6 Expanded L-band frequency inputs • Plug & Play deployment
• Single SC/APC input • Maximum Input Power: -8dBm
• Six F-type outputs • Minimum Input Power: -16Dbm
• Stand-alone housing • Optical Input Connector Type: SC/APC
The Foxcom compact AL6R-66-CWDM receiver converts incoming signals from Foxcom’s optical
AL6T-66-CWDM transmitter into 6 RF outputs. This cost-effective solution boasts a large optical input window and linear performance,
enabling it to distribute up to 6 high-quality, L-Band (200-2400MHz) TV signals. The receiver is designed with internal CWDM to pro-
vide optimum, quality satellite TV signals in point-to-multi-point applications. Optical connectors are provided for data communication
using 1310 and 1490nm. The AL6R-66-CWDM compact design and low power consumption enables it to be easily integrated into many
distribution environments.
Model No. AL6R-66-CWDM ...............................Call for Pricing

L-Band Fiber Transmitter or Receiver
• 1 Expanded L-band frequency input • Optical Output Connector Type: SC/APC
• Stand-alone housing • AL6T-1-CWDM - Minimum/ Maximum RF
• Low power consumption Input Power: -50dBm /-20dBm
• AGC circuitry Compatible with Foxcom’s • AL6T-1-CWDM - Minimum/ Maximum RF
AL5R/AL6R 1 receivers Input Power: -8dBm /-16Dbm
• Optical Output Power: +3dBm
Transmitter Receiver
A. Model No. AL6T-1-CWDM .......Call for Pricing B. Model No. AL6R-1-CWDM .......Call for Pricing
