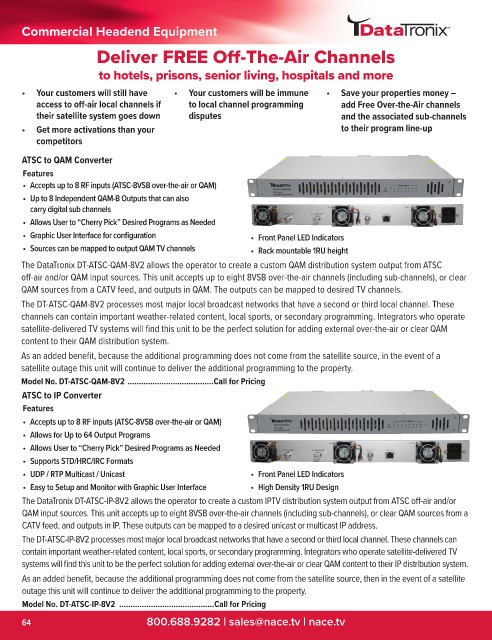

Page 66 - NACE T128 Full catalog_Web

Commercial Headend Equipment

Deliver FREE Off-The-Air Channels

to hotels, prisons, senior living, hospitals and more

• Your customers will still have • Your customers will be immune • Save your properties money –
access to off-air local channels if to local channel programming add Free Over-the-Air channels
their satellite system goes down disputes and the associated sub-channels
• Get more activations than your to their program line-up
competitors

ATSC to QAM Converter

Features
• Accepts up to 8 RF inputs (ATSC-8VSB over-the-air or QAM)
• Up to 8 Independent QAM-B Outputs that can also
carry digital sub channels
• Allows User to “Cherry Pick” Desired Programs as Needed
• Graphic User Interface for configuration • Front Panel LED Indicators
• Sources can be mapped to output QAM TV channels • Rack mountable 1RU height
The DataTronix DT-ATSC-QAM-8V2 allows the operator to create a custom QAM distribution system output from ATSC
off-air and/or QAM input sources. This unit accepts up to eight 8VSB over-the-air channels (including sub-channels), or clear
QAM sources from a CATV feed, and outputs in QAM. The outputs can be mapped to desired TV channels.
The DT-ATSC-QAM-8V2 processes most major local broadcast networks that have a second or third local channel. These
channels can contain important weather-related content, local sports, or secondary programming. Integrators who operate
satellite-delivered TV systems will find this unit to be the perfect solution for adding external over-the-air or clear QAM
content to their QAM distribution system.
As an added benefit, because the additional programming does not come from the satellite source, in the event of a
satellite outage this unit will continue to deliver the additional programming to the property.
Model No. DT-ATSC-QAM-8V2 ......................................Call for Pricing
ATSC to IP Converter
Features

• Accepts up to 8 RF inputs (ATSC-8VSB over-the-air or QAM)
• Allows for Up to 64 Output Programs
• Allows User to “Cherry Pick” Desired Programs as Needed
• Supports STD/HRC/IRC Formats
• UDP / RTP Multicast / Unicast • Front Panel LED Indicators
• Easy to Setup and Monitor with Graphic User Interface • High Density 1RU Design
The DataTronix DT-ATSC-IP-8V2 allows the operator to create a custom IPTV distribution system output from ATSC off-air and/or
QAM input sources. This unit accepts up to eight 8VSB over-the-air channels (including sub-channels), or clear QAM sources from a
CATV feed, and outputs in IP. These outputs can be mapped to a desired unicast or multicast IP address.
The DT-ATSC-IP-8V2 processes most major local broadcast networks that have a second or third local channel. These channels can
contain important weather-related content, local sports, or secondary programming. Integrators who operate satellite-delivered TV
systems will find this unit to be the perfect solution for adding external over-the-air or clear QAM content to their IP distribution system.
As an added benefit, because the additional programming does not come from the satellite source, then in the event of a satellite
outage this unit will continue to deliver the additional programming to the property.
Model No. DT-ATSC-IP-8V2 ..........................................Call for Pricing
