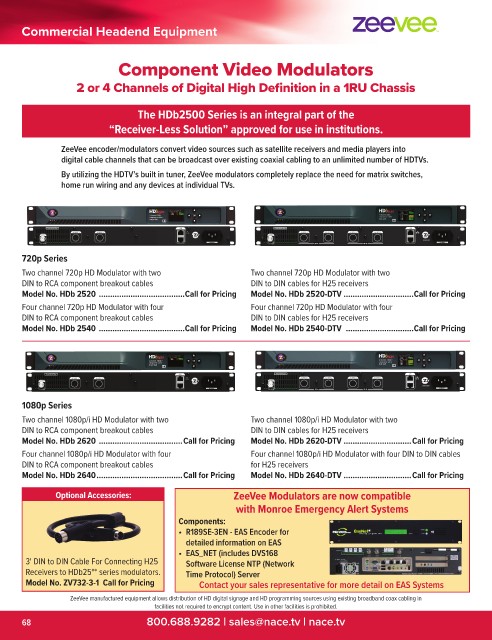

Commercial Headend Equipment

Component Video Modulators

2 or 4 Channels of Digital High Definition in a 1RU Chassis

The HDb2500 Series is an integral part of the
“Receiver-Less Solution” approved for use in institutions.

ZeeVee encoder/modulators convert video sources such as satellite receivers and media players into
digital cable channels that can be broadcast over existing coaxial cabling to an unlimited number of HDTVs.

By utilizing the HDTV’s built in tuner, ZeeVee modulators completely replace the need for matrix switches,
home run wiring and any devices at individual TVs.

720p Series

Two channel 720p HD Modulator with two Two channel 720p HD Modulator with two
DIN to RCA component breakout cables DIN to DIN cables for H25 receivers
Model No. HDb 2520 ......................................Call for Pricing Model No. HDb 2520-DTV ...............................Call for Pricing
Four channel 720p HD Modulator with four Four channel 720p HD Modulator with four
DIN to RCA component breakout cables DIN to DIN cables for H25 receivers
Model No. HDb 2540 ......................................Call for Pricing Model No. HDb 2540-DTV ..............................Call for Pricing

1080p Series
Two channel 1080p/i HD Modulator with two Two channel 1080p/i HD Modulator with two
DIN to RCA component breakout cables DIN to DIN cables for H25 receivers
Model No. HDb 2620 .....................................Call for Pricing Model No. HDb 2620-DTV ..............................Call for Pricing
Four channel 1080p/i HD Modulator with four Four channel 1080p/i HD Modulator with four DIN to DIN cables
DIN to RCA component breakout cables for H25 receivers
Model No. HDb 2640 ......................................Call for Pricing Model No. HDb 2640-DTV ..............................Call for Pricing
Optional Accessories: ZeeVee Modulators are now compatible
with Monroe Emergency Alert Systems

Components:
• R189SE-3EN - EAS Encoder for
detailed information on EAS
• EAS_NET (includes DVS168
3' DIN to DIN Cable For Connecting H25 Software License NTP (Network
Receivers to HDb25** series modulators. Time Protocol) Server
Model No. ZV732-3-1 Call for Pricing Contact your sales representative for more detail on EAS Systems

ZeeVee manufactured equipment allows distribution of HD digital signage and HD programming sources using existing broadband coax cabling in
facilities not required to encrypt content. Use in other facilities is prohibited.
