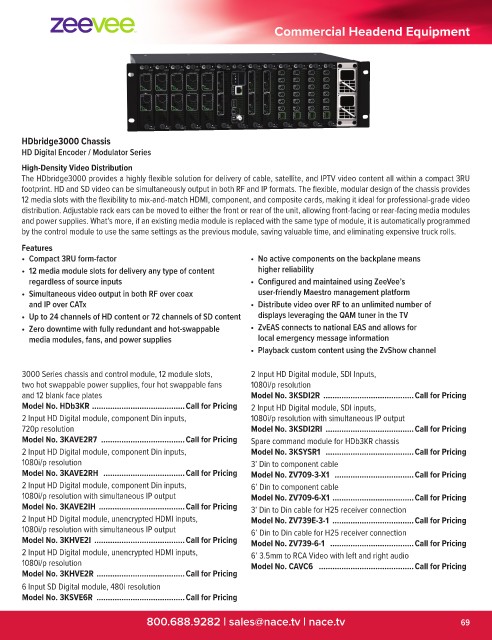

Page 71 - NACE T128 Full catalog_Web

Commercial Headend Equipment

HDbridge3000 Chassis
HD Digital Encoder / Modulator Series

High-Density Video Distribution
The HDbridge3000 provides a highly flexible solution for delivery of cable, satellite, and IPTV video content all within a compact 3RU
footprint. HD and SD video can be simultaneously output in both RF and IP formats. The flexible, modular design of the chassis provides
12 media slots with the flexibility to mix-and-match HDMI, component, and composite cards, making it ideal for professional-grade video
distribution. Adjustable rack ears can be moved to either the front or rear of the unit, allowing front-facing or rear-facing media modules
and power supplies. What’s more, if an existing media module is replaced with the same type of module, it is automatically programmed
by the control module to use the same settings as the previous module, saving valuable time, and eliminating expensive truck rolls.

Features
• Compact 3RU form-factor • No active components on the backplane means
• 12 media module slots for delivery any type of content higher reliability
regardless of source inputs • Configured and maintained using ZeeVee’s
• Simultaneous video output in both RF over coax user-friendly Maestro management platform
and IP over CATx • Distribute video over RF to an unlimited number of
• Up to 24 channels of HD content or 72 channels of SD content displays leveraging the QAM tuner in the TV
• Zero downtime with fully redundant and hot-swappable • ZvEAS connects to national EAS and allows for
media modules, fans, and power supplies local emergency message information
• Playback custom content using the ZvShow channel

3000 Series chassis and control module, 12 module slots, 2 Input HD Digital module, SDI Inputs,
two hot swappable power supplies, four hot swappable fans 1080i/p resolution
and 12 blank face plates Model No. 3KSDI2R ........................................Call for Pricing
Model No. HDb3KR .........................................Call for Pricing 2 Input HD Digital module, SDI inputs,
2 Input HD Digital module, component Din inputs, 1080i/p resolution with simultaneous IP output
720p resolution Model No. 3KSDI2RI .......................................Call for Pricing
Model No. 3KAVE2R7 .....................................Call for Pricing Spare command module for HDb3KR chassis
2 Input HD Digital module, component Din inputs, Model No. 3KSYSR1 .......................................Call for Pricing
1080i/p resolution 3’ Din to component cable
Model No. 3KAVE2RH ....................................Call for Pricing Model No. ZV709-3-X1 ...................................Call for Pricing
2 Input HD Digital module, component Din inputs, 6’ Din to component cable
1080i/p resolution with simultaneous IP output Model No. ZV709-6-X1 ....................................Call for Pricing
Model No. 3KAVE2IH ......................................Call for Pricing 3’ Din to Din cable for H25 receiver connection
2 Input HD Digital module, unencrypted HDMI inputs, Model No. ZV739E-3-1 ....................................Call for Pricing
1080i/p resolution with simultaneous IP output 6’ Din to Din cable for H25 receiver connection
Model No. 3KHVE2I ........................................Call for Pricing Model No. ZV739-6-1 .....................................Call for Pricing
2 Input HD Digital module, unencrypted HDMI inputs, 6’ 3.5mm to RCA Video with left and right audio
1080i/p resolution Model No. CAVC6 ..........................................Call for Pricing
Model No. 3KHVE2R .......................................Call for Pricing
6 Input SD Digital module, 480i resolution
Model No. 3KSVE6R .......................................Call for Pricing
