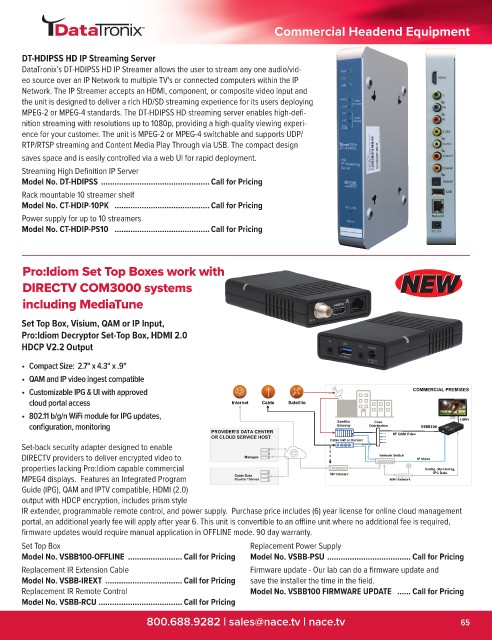

Page 67 - NACE T128 Full catalog_Web

Commercial Headend Equipment

DT-HDIPSS HD IP Streaming Server
DataTronix’s DT-HDIPSS HD IP Streamer allows the user to stream any one audio/vid-
eo source over an IP Network to multiple TV's or connected computers within the IP
Network. The IP Streamer accepts an HDMI, component, or composite video input and
the unit is designed to deliver a rich HD/SD streaming experience for its users deploying
MPEG-2 or MPEG-4 standards. The DT-HDIPSS HD streaming server enables high-defi-
nition streaming with resolutions up to 1080p, providing a high-quality viewing experi-
ence for your customer. The unit is MPEG-2 or MPEG-4 switchable and supports UDP/
RTP/RTSP streaming and Content Media Play Through via USB. The compact design
saves space and is easily controlled via a web UI for rapid deployment.
Streaming High Definition IP Server
Model No. DT-HDIPSS ................................................ Call for Pricing
Rack mountable 10 streamer shelf
Model No. CT-HDIP-10PK .......................................... Call for Pricing
Power supply for up to 10 streamers
Model No. CT-HDIP-PS10 .......................................... Call for Pricing

Pro:Idiom Set Top Boxes work with
DIRECTV COM3000 systems

including MediaTune

Set Top Box, Visium, QAM or IP Input,
Pro:Idiom Decryptor Set-Top Box, HDMI 2.0
HDCP V2.2 Output

• Compact Size: 2.7" x 4.3" x .9"
• QAM and IP video ingest compatible
• Customizable IPG & UI with approved
cloud portal access
• 802.11 b/g/n WiFi module for IPG updates,
configuration, monitoring VSBB100

Set-back security adapter designed to enable
DIRECTV providers to deliver encrypted video to
properties lacking Pro:Idiom capable commercial
MPEG4 displays. Features an Integrated Program
Guide (IPG), QAM and IPTV compatible, HDMI (2.0)
output with HDCP encryption, includes prism style
IR extender, programmable remote control, and power supply. Purchase price includes (6) year license for online cloud management
portal, an additional yearly fee will apply after year 6. This unit is convertible to an offline unit where no additional fee is required,
firmware updates would require manual application in OFFLINE mode. 90 day warranty.
Set Top Box Replacement Power Supply
Model No. VSBB100-OFFLINE ........................ Call for Pricing Model No. VSBB-PSU ..................................... Call for Pricing
Replacement IR Extension Cable Firmware update - Our lab can do a firmware update and
Model No. VSBB-IREXT .................................. Call for Pricing save the installer the time in the field.
Replacement IR Remote Control Model No. VSBB100 FIRMWARE UPDATE ...... Call for Pricing
Model No. VSBB-RCU ..................................... Call for Pricing

800.688.9282 | sales@nace.tv | nace.tv 65
