Meters & Tools

Big features, small package

Your go to meter for installation, remote monitoring, or troubleshooting.

Rugged, light-weight, and extremely easy to use.

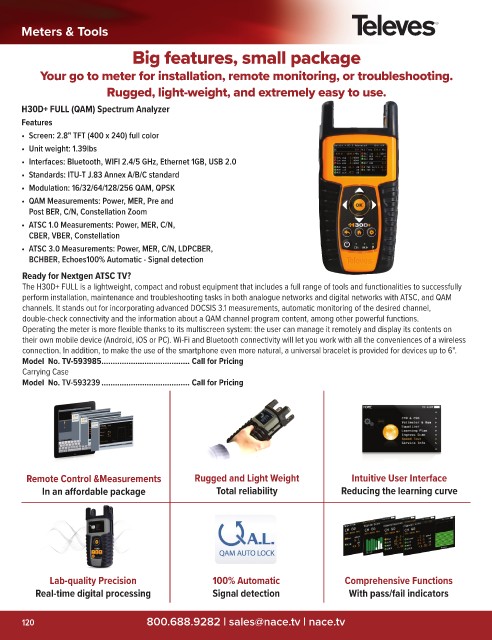

H30D+ FULL (QAM) Spectrum Analyzer
Features
• Screen: 2.8" TFT (400 x 240) full color
• Unit weight: 1.39lbs
• Interfaces: Bluetooth, WIFI 2.4/5 GHz, Ethernet 1GB, USB 2.0
• Standards: ITU-T J.83 Annex A/B/C standard
• Modulation: 16/32/64/128/256 QAM, QPSK
• QAM Measurements: Power, MER, Pre and
Post BER, C/N, Constellation Zoom
• ATSC 1.0 Measurements: Power, MER, C/N,
CBER, VBER, Constellation
• ATSC 3.0 Measurements: Power, MER, C/N, LDPCBER,
BCHBER, Echoes100% Automatic - Signal detection
Ready for Nextgen ATSC TV?
The H30D+ FULL is a lightweight, compact and robust equipment that includes a full range of tools and functionalities to successfully
perform installation, maintenance and troubleshooting tasks in both analogue networks and digital networks with ATSC, and QAM
channels. It stands out for incorporating advanced DOCSIS 3.1 measurements, automatic monitoring of the desired channel,
double-check connectivity and the information about a QAM channel program content, among other powerful functions.
Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on
their own mobile device (Android, iOS or PC). Wi-Fi and Bluetooth connectivity will let you work with all the conveniences of a wireless
connection. In addition, to make the use of the smartphone even more natural, a universal bracelet is provided for devices up to 6".
Model No. TV-593985 ....................................... Call for Pricing
Carrying Case
Model No. TV-593239 ....................................... Call for Pricing

Remote Control &Measurements Rugged and Light Weight Intuitive User Interface
In an affordable package Total reliability Reducing the learning curve

Lab-quality Precision 100% Automatic Comprehensive Functions
Real-time digital processing Signal detection With pass/fail indicators
