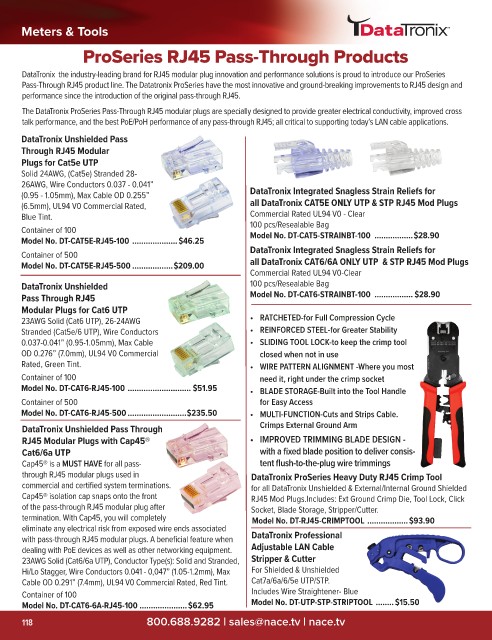

Meters & Tools
ProSeries RJ45 Pass-Through Products
DataTronix the industry-leading brand for RJ45 modular plug innovation and performance solutions is proud to introduce our ProSeries
Pass-Through RJ45 product line. The Datatronix ProSeries have the most innovative and ground-breaking improvements to RJ45 design and
performance since the introduction of the original pass-through RJ45.
The DataTronix ProSeries Pass-Through RJ45 modular plugs are specially designed to provide greater electrical conductivity, improved cross
talk performance, and the best PoE/PoH performance of any pass-through RJ45; all critical to supporting today’s LAN cable applications.
DataTronix Unshielded Pass
Through RJ45 Modular
Plugs for Cat5e UTP
Solid 24AWG, (Cat5e) Stranded 28-
26AWG, Wire Conductors 0.037 - 0.041”
(0.95 - 1.05mm), Max Cable OD 0.255” DataTronix Integrated Snagless Strain Reliefs for
(6.5mm), UL94 V0 Commercial Rated, all DataTronix CAT5E ONLY UTP & STP RJ45 Mod Plugs
Blue Tint. Commercial Rated UL94 V0 - Clear
Container of 100 100 pcs/Resealable Bag
Model No. DT-CAT5E-RJ45-100 ....................$46.25 Model No. DT-CAT5-STRAINBT-100 .................$28.90
Container of 500 DataTronix Integrated Snagless Strain Reliefs for
Model No. DT-CAT5E-RJ45-500 ..................$209.00 all DataTronix CAT6/6A ONLY UTP & STP RJ45 Mod Plugs
Commercial Rated UL94 V0-Clear
DataTronix Unshielded 100 pcs/Resealable Bag
Pass Through RJ45 Model No. DT-CAT6-STRAINBT-100 ................. $28.90
Modular Plugs for Cat6 UTP
23AWG Solid (Cat6 UTP), 26-24AWG • RATCHETED-for Full Compression Cycle
Stranded (Cat5e/6 UTP), Wire Conductors • REINFORCED STEEL-for Greater Stability
0.037-0.041” (0.95-1.05mm), Max Cable • SLIDING TOOL LOCK-to keep the crimp tool
OD 0.276” (7.0mm), UL94 V0 Commercial closed when not in use
Rated, Green Tint. • WIRE PATTERN ALIGNMENT -Where you most
Container of 100 need it, right under the crimp socket
Model No. DT-CAT6-RJ45-100 ............................ $51.95 • BLADE STORAGE-Built into the Tool Handle
Container of 500 for Easy Access
Model No. DT-CAT6-RJ45-500 ..........................$235.50 • MULTI-FUNCTION-Cuts and Strips Cable.
DataTronix Unshielded Pass Through Crimps External Ground Arm
RJ45 Modular Plugs with Cap45® • IMPROVED TRIMMING BLADE DESIGN -
Cat6/6a UTP with a fixed blade position to deliver consis-
Cap45® is a MUST HAVE for all pass- tent flush-to-the-plug wire trimmings
through RJ45 modular plugs used in DataTronix ProSeries Heavy Duty RJ45 Crimp Tool
commercial and certified system terminations. for all DataTronix Unshielded & External/Internal Ground Shielded
Cap45® isolation cap snaps onto the front RJ45 Mod Plugs.Includes: Ext Ground Crimp Die, Tool Lock, Click
of the pass-through RJ45 modular plug after Socket, Blade Storage, Stripper/Cutter.
termination. With Cap45, you will completely Model No. DT-RJ45-CRIMPTOOL ..................$93.90
eliminate any electrical risk from exposed wire ends associated
with pass-through RJ45 modular plugs. A beneficial feature when DataTronix Professional
dealing with PoE devices as well as other networking equipment. Adjustable LAN Cable
23AWG Solid (Cat6/6a UTP), Conductor Type(s): Solid and Stranded, Stripper & Cutter
Hi/Lo Stagger, Wire Conductors 0.041 - 0,047” (1.05-1.2mm), Max For Shielded & Unshielded
Cable OD 0.291” (7.4mm), UL94 V0 Commercial Rated, Red Tint. Cat7a/6a/6/5e UTP/STP.
Container of 100 Includes Wire Straightener- Blue
Model No. DT-CAT6-6A-RJ45-100 .....................$62.95 Model No. DT-UTP-STP-STRIPTOOL ........$15.50
